Spiral Cable Coil Cord "Industrial Duty" 5x0,25mm² Extended Length 3,5m
€24.90
delivery time: 16 - 30 working days
Product information "Spiral Cable Coil Cord "Industrial Duty" 5x0,25mm² Extended Length 3,5m"

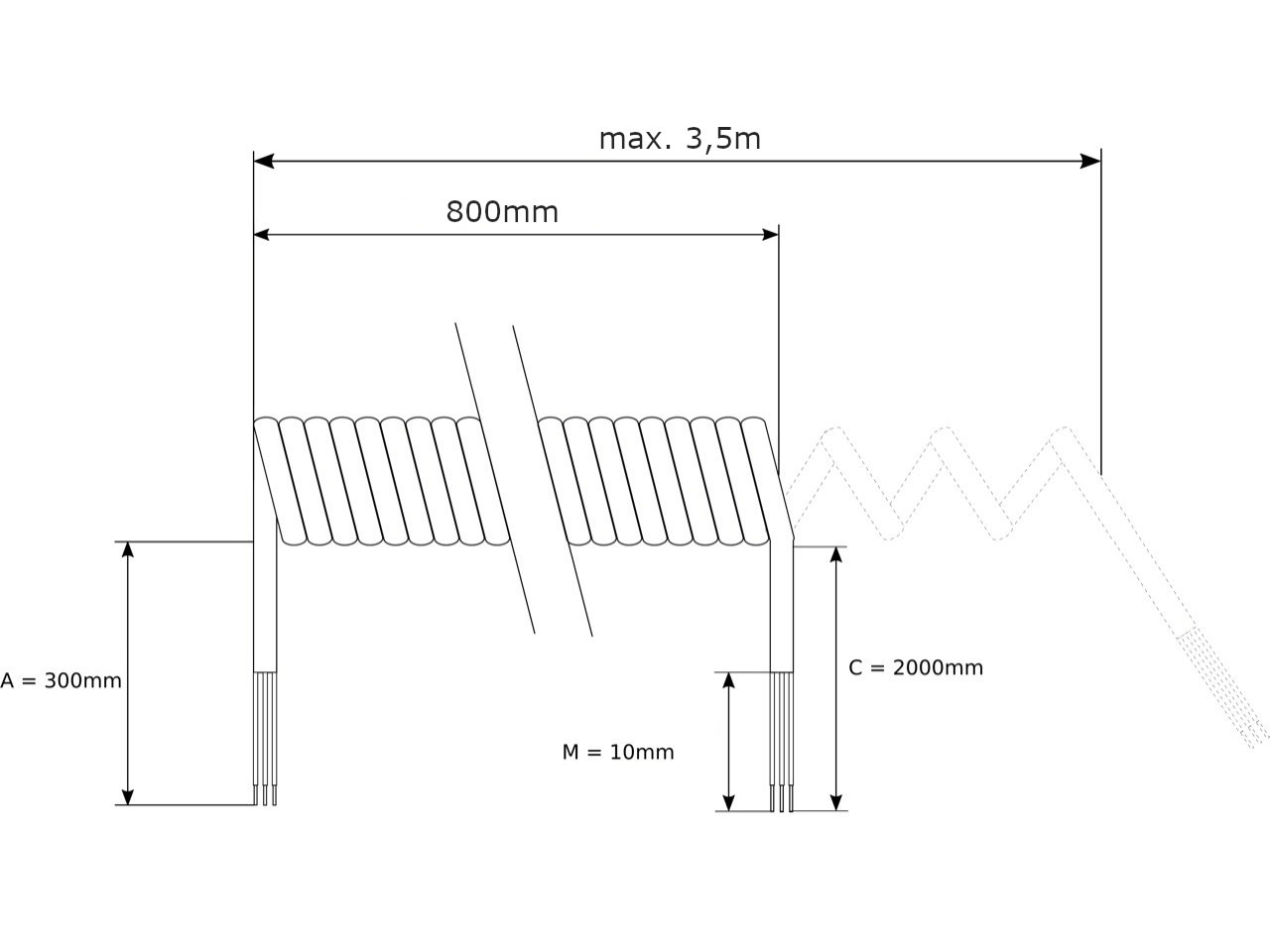

Coil cord for doors, EstTPU/PP, black, cable configuration: fine-stranded 5x0,25mm², Lif9Y11Y, dimensions: left end = 300mm, coil length = 900mm, right end = 2000mm, max. extension length 3,5m
Description:
The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.
Properties:
- Due to the 800mm-long spiral block, the coil cable can be extended to a length of up to 3.5m.
- The 5-core cable installation and a 0.25mm² conductor cross-section means the helical cable has enough strands for e.g. the safety edge and slack-rope switches
- Sheath and core insulation made of high-grade materials
- Can be installed universally on doors from various manufacturers
| Cable Setup: | 5 x 0.25 mm² |
|---|---|
| Extension Length: | 3500 mm |
| Länge Anschlußleitung (steuerungsseitig): | 2000 mm |
| Länge Anschlußleitung (torseitig): | 350 mm |
| Max. Operating Temperature: | +80 °C |
| Min. Operating Temperature: | -25 °C |
