FRABA VITECTOR JB 4400 Electrical Box Connection-PCB with Diagnostics
€31.50
delivery time: 3-5 working days
Product information "FRABA VITECTOR JB 4400 Electrical Box Connection-PCB with Diagnostics"

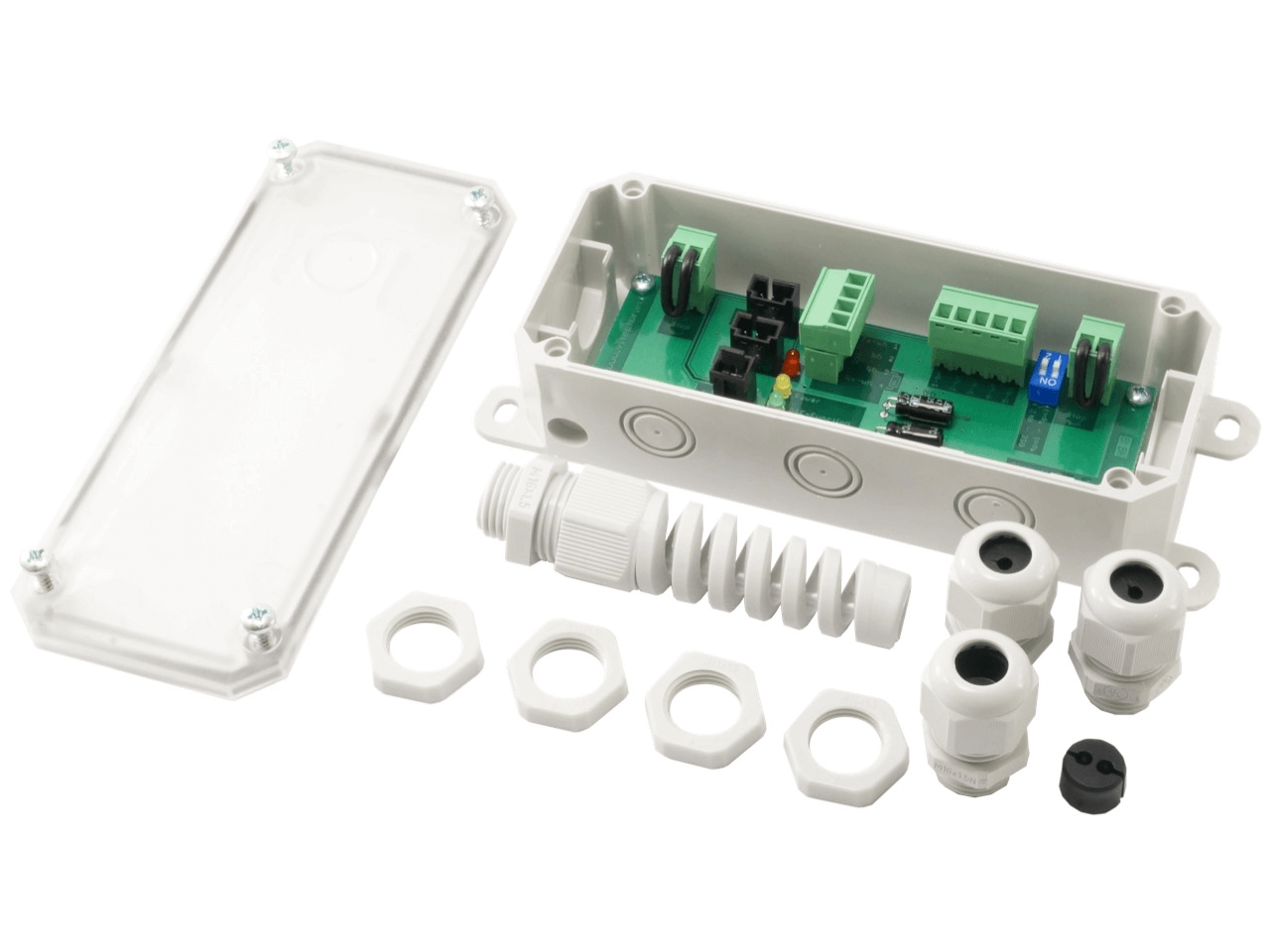

Electrical box with status LED, 40 x 136 x 56 mm, incl. 3x M16 cable glands, 1x M16 cable gland with bend protection and 4x M16 lock nut
Description:

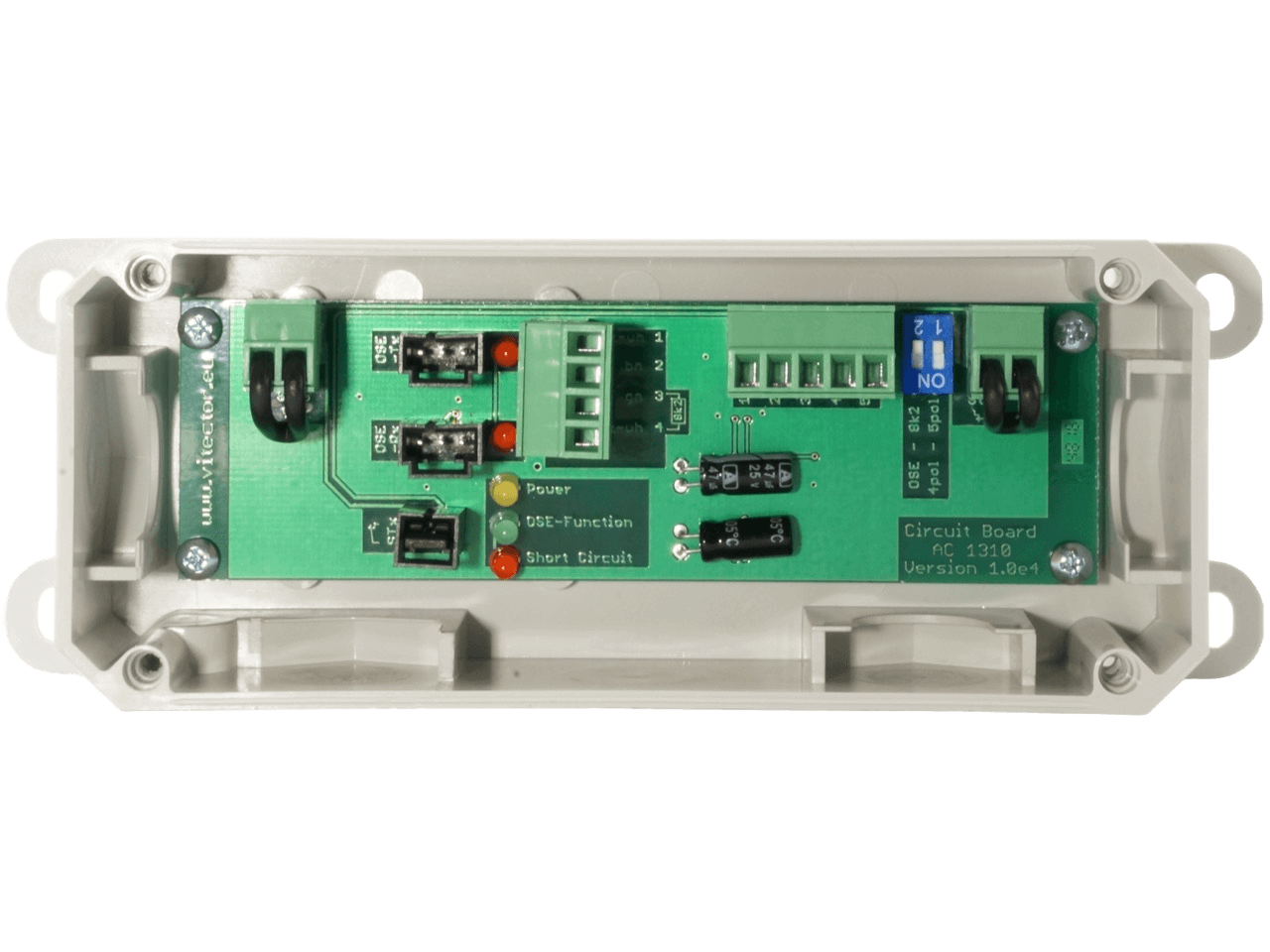

The Fraba Vitector large junction box is useful wherever lots of space is needed for cabling from sensors, photo-eye switches, pass-door switches, slack-rope switches, etc. The connection circuit board ensures the cables can be easily connected to the door.
Further characteristics:
- Dimensions: 40 x 136 x 56 mm
- Transparent cover
- Pre-punched cable entries 5xM16 in the housing, 1xM16 in the lid
- Includes 3xM16 cable glands, 1x bend protector and 4 x locknuts
| Additional Functions: | Anschlußplatine, Diagnose LED |
|---|---|
| Function: | Junction Box (OSE) |
| Protection Class: | IP 65 |
