Spiral Cable Coil Cord "Industrial Duty" 3x0,25mm² Extended Length 2,5m
€28.90
delivery time: 3-5 working days
Product information "Spiral Cable Coil Cord "Industrial Duty" 3x0,25mm² Extended Length 2,5m"

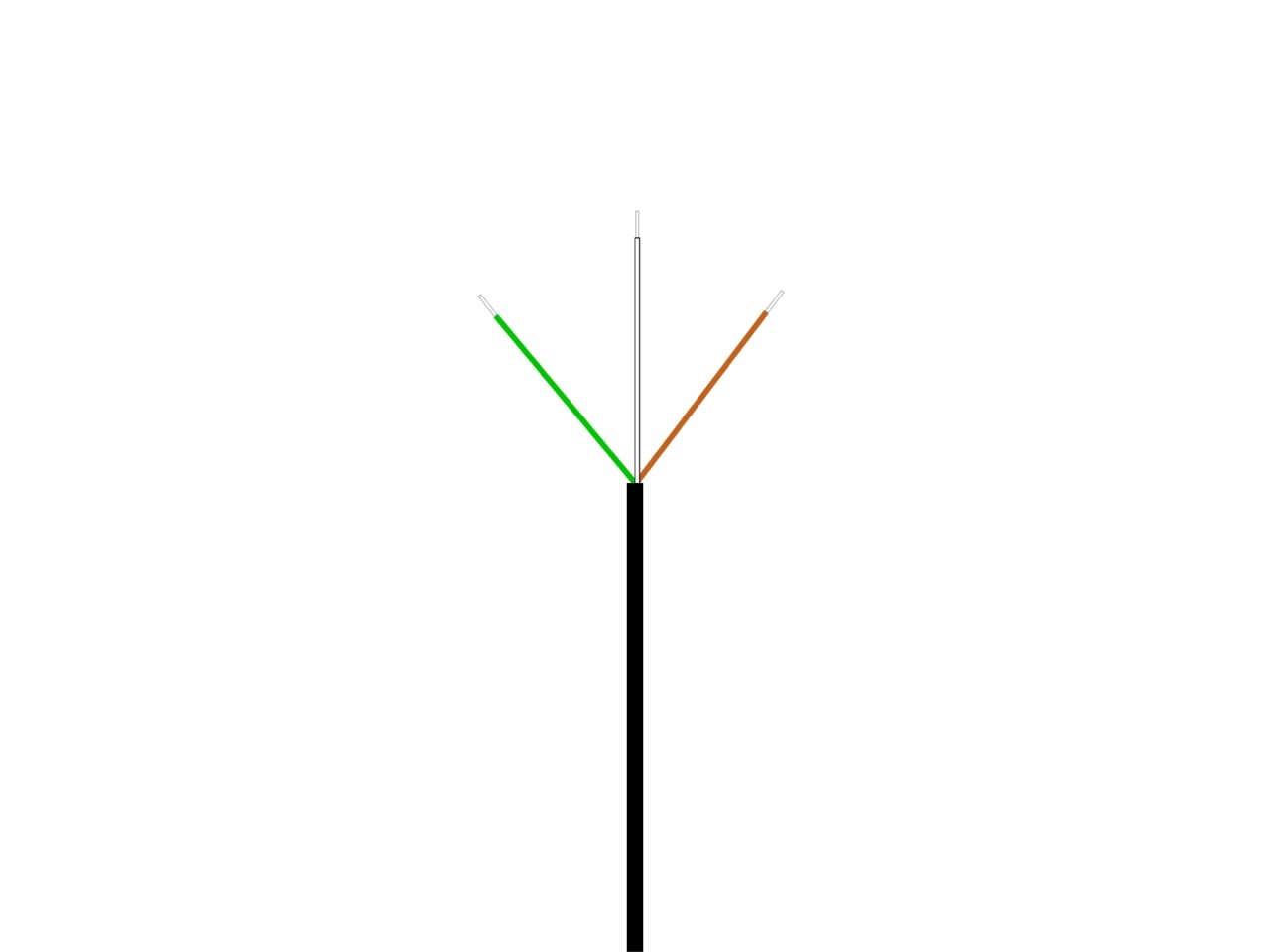

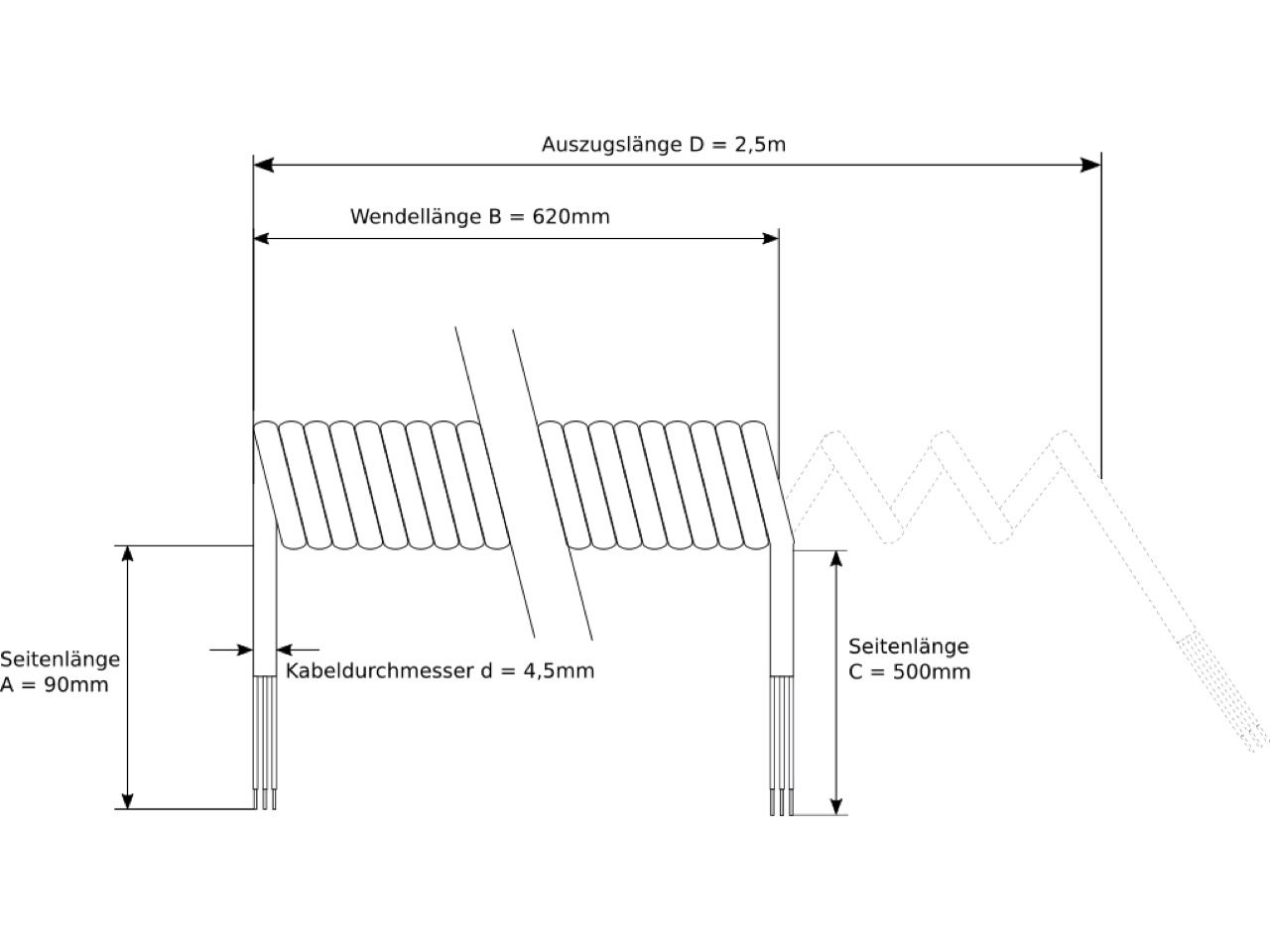

Coil cord for doors, PUR/ PUR, black, cable configuration: fine-stranded 3x0,25mm², Li11Y11Y, dimensions: left end = 90mm, coil length = 620mm, right end = 500mm, max. extension length 2,5m
Description:
The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.
Properties:
- Due to the 620mm-long spiral block, the coil cable can be extended to a length of up to 2.5m.
- The 3-core cable installation and a 0.25mm² conductor cross-section enables the signal of the optical sensing edge to be transmitted to the door control unit.
- Sheath and core insulation made of high-grade Polyurethane (PUR)
- Can be installed universally on doors from various manufacturers
| Cable Setup: | 3 x 0.25 mm² |
|---|---|
| Extension Length: | 2500 mm |
| Länge Anschlußleitung (steuerungsseitig): | 500 mm |
| Länge Anschlußleitung (torseitig): | 90 mm |
| Material: | TPU/TPU |
| Max. Operating Temperature: | +90 °C |
| Min. Operating Temperature: | -40 °C |
