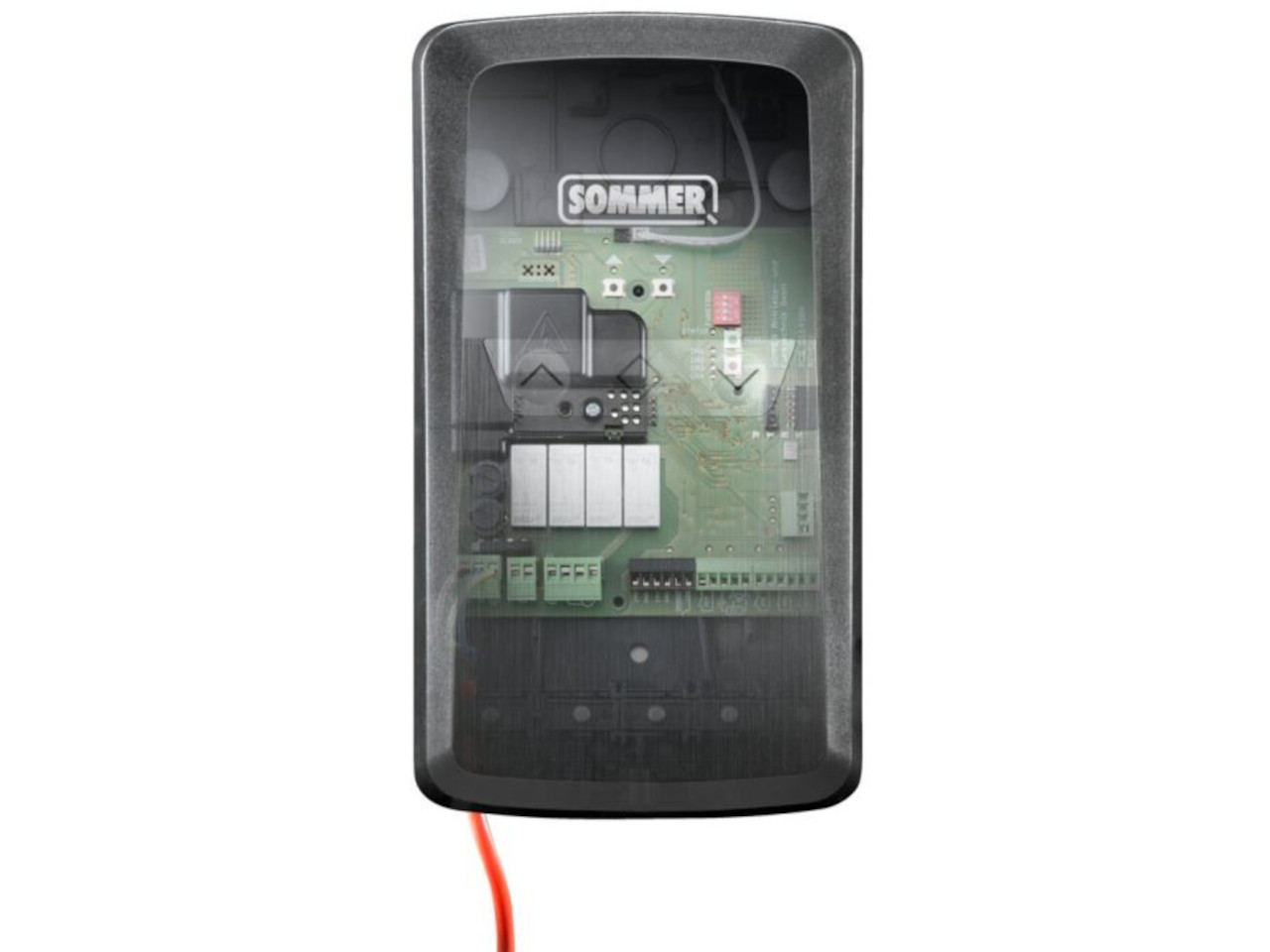

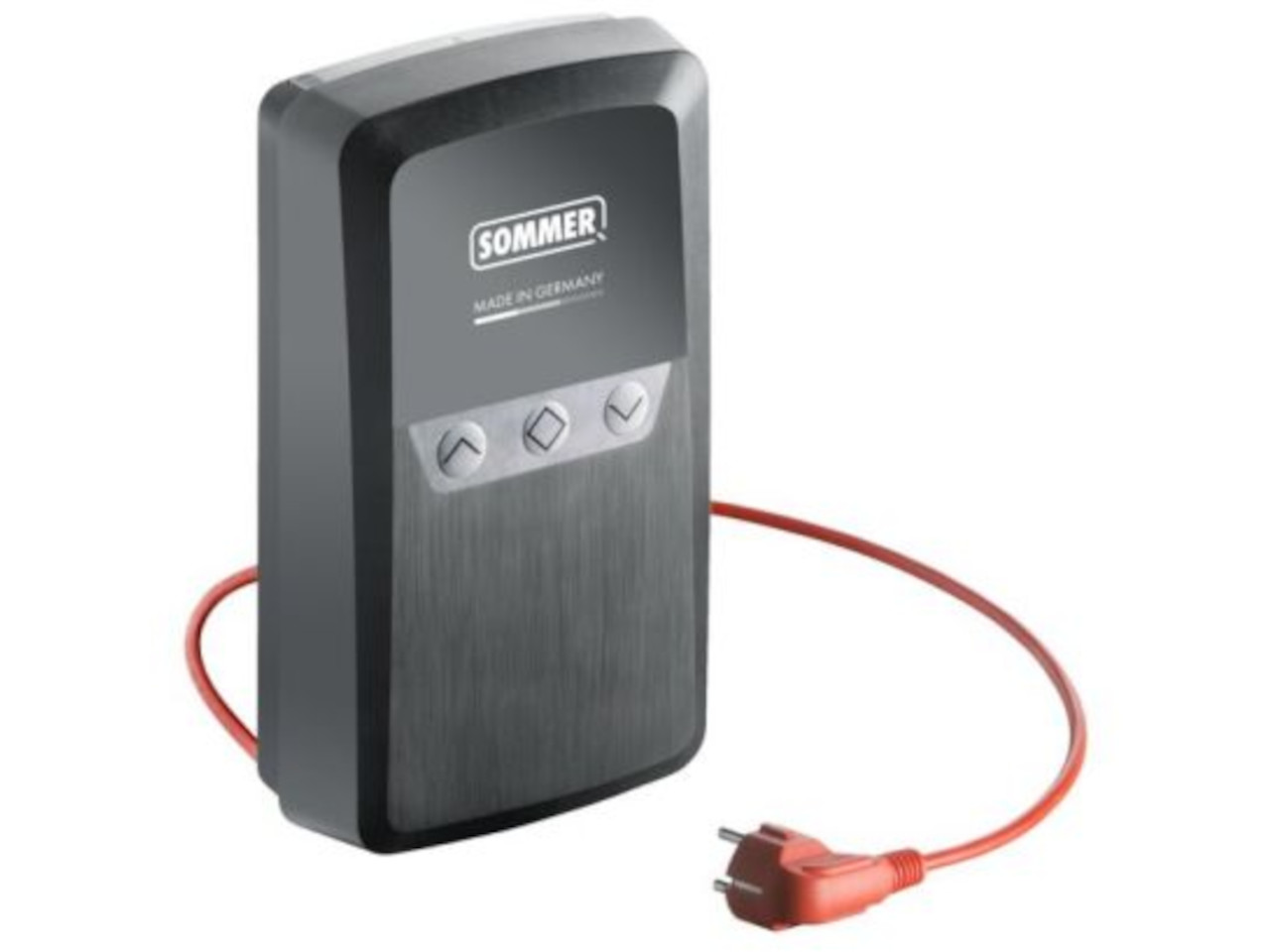

Sommer RDC vision+ door control unit incl. 1 x Pearl remote control
€129.00
delivery time: 3-5 working days
Product information "Sommer RDC vision+ door control unit incl. 1 x Pearl remote control"

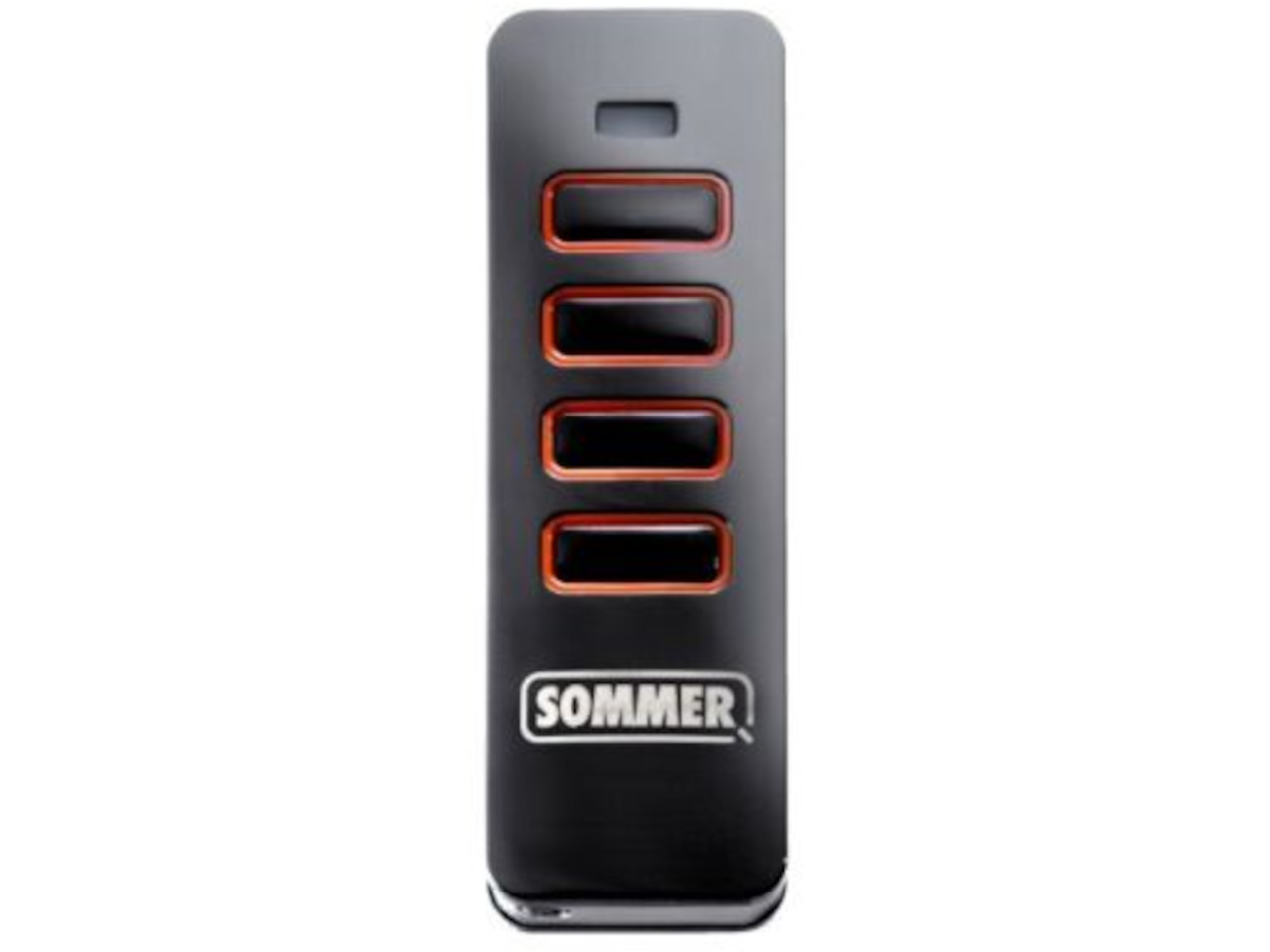

The RDC Vision+ control unit from SOMMER offers a versatile solution for controlling rolling doors with tubular motors. With a wide range of functions and benefits, it is suitable for various applications. The delivery here includes 1 pc. Pearl 4-channel remote control.
Technical details:
- Universal radio technology: The control system uses the Sommer radio standard SOMloq2, which is compatible with various SOMMER products (sliding door openers, swing door openers, Garage door openers). This means that the same remote can be used to control different types of door.
- Bidirectional radio system: The safety radio system enables stable communication and increases safety.
- Powerful control: Suitable for tubular motors up to 1000 W, the control offers flexibility for different requirements.
- Integrated LED lighting: The integrated LED lighting ensures a clear view during operation.
- Safety contact strips: The control has an integrated evaluation of OSE or 8k2 safety contact strips.
- Convenient operation: With defined functions for UP-Stop-DOWN via radio and push-button, simple control is guaranteed.
- Easy installation: Plug-in connection terminals make installation easier.
- Automated teach-in process: The fully automatic teach-in process supports fast commissioning.
- Fast fault diagnosis: Integrated LED indicators at the connection points enable simple fault diagnosis.
- Wide range of accessories: Compatible with Sommer accessories such as Memo and Senso.
These functions make the RDC Vision+ control unit a versatile option for controlling tubular motors on rolling doors.
| Max. Operating Temperature: | +65 °C |
|---|---|
| Min. Operating Temperature: | -25 °C |
| Modes of Operation: | Automatic, Hold-to-Run |
| Radio Function: | integrated |
| Sensor Inputs: | Optical Sensing Edges, Resistive Sensing Edge (8k2) |
| Supply Voltage: | 1~230 V |
