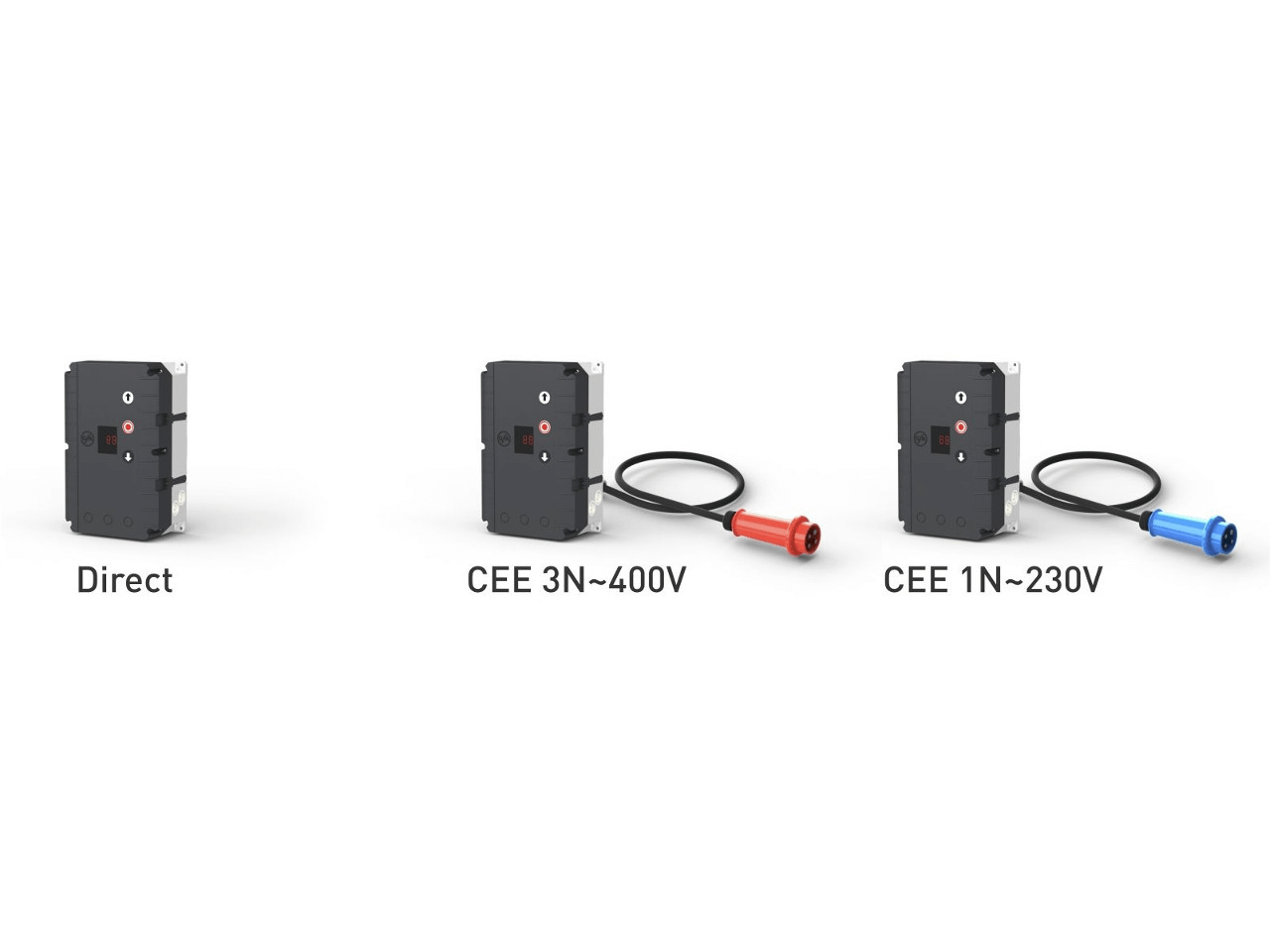

GfA Elektromaten Door Control TS 981 with CEE 3N~400V (5 pole)
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Shipping only 9,90 EUR within EU, to Switzerland and Norway
Stocked Products Ship within 24h
Product information "GfA Elektromaten Door Control TS 981 with CEE 3N~400V (5 pole)"
Door control unit for GfA Elektromaten drives with digital limit switch, automatic or constant pressure to close operation, RWA function (smoke draining) actuates a compulsory door opening, to be used with external smoke alarm systems, One-way and two-way traffic control with adjustable functions, optional modules for connection to TS981 offer additional functions
Description:
The TS 981 from GfA Elektromaten is a comfort control unit for GfA door drives with a digital limit switch DES. The very wide range of functions of the control unit can be extended to include many special functions through various additional modules. This means that the TS 981 also offers a solution for more complex applications.
Properties:
- For GfA ELEKTROMATEN with digital limit switch DES
- Integrated three-button keypad OPEN-STOP-CLOSE
- Settings made via rotary selector switch with digital display
- Settings of the end positions and all the functions on the controller level
- Automatic sensing edge recognition and evaluation
- Programmable partially open position with individual programming possibilities
- Pull-in protection evaluation
- Various special functions with additional modules
| Additional Functions: | Partial Opening, RWA, Timer-to-Close |
|---|---|
| Max. Operating Temperature: | +50 °C |
| Min. Operating Temperature: | -10 °C |
| Modes of Operation: | Automatic, Hold-to-Run |
| Programmable Relay Contact: | 2 |
| Protection Class: | IP 54 |
| Radio Function: | Optional |
| Sensor Inputs: | Airwave Switch, Optical Sensing Edges, Photo Eye, Pull-In Protection, Resistive Sensing Edge (8k2) |
| Supply Voltage: | 3N~400 V |
