GfA Elektromaten KE 60.24 NHK DES Ø55-Chain Drive for Doors 600Nm with Emergency Hand Crank
€1,539.00
Product information "GfA Elektromaten KE 60.24 NHK DES Ø55-Chain Drive for Doors 600Nm with Emergency Hand Crank"

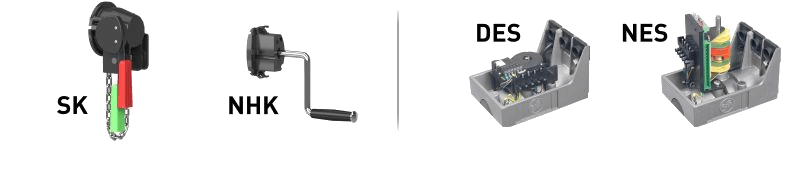

KE-ELEKTROMATEN, Drive for chain driven roller shutters or rolling grilles, output torque 600Nm, output speed 24 rpm, supply voltage 3~230V/400V, with emergency hand crank for manual operation, Attention: The sprocket is not included and can be ordered separately, digital limit switch DES, limit switch range E=20 revolutions max.
Description:
The GfA KE ELEKTROMATEN chain drives are special drives for industrial doors. The door shaft drive is operated by a chain transmission. For applications which require an anti-fallback device a separate safety brake is required.
KE ELEKTROMATEN consists of:
- Electric motor
- Worm gear
- Pluggable output shafts for installations on left and right sides
- Emergency manual override
- Integrated limit switch
| Emergency Operation: | Hand Crank |
|---|---|
| Hollow- / Output-Shaft (Ø): | 55 mm |
| Limit Switch type: | digital Limit Switch DES (GfA Elektromaten) |
| Limit Swtich Range: | 20 |
| Max. output speed CLOSE for frequency inverter operation: | 42 min^-1 |
| Max. output speed OPEN for frequency inverter operation: | 42 min^-1 |
| Output Speed: | 24 min^-1 |
| Output Torque: | 600 Nm |
| Power: | 1.5 kW |
| Supply Voltage: | 3~230/400 V |
| max. Movements per Hour: | 14 |
