GfA Elektromaten SE 9.24 SK DES Ø25,4-Drive for Sectional Doors 90Nm Emergency Hand Chain

Drive set for counter-balanced sectional doors, motor torque 140 Nm, 25.4mm hollow shaft, 400 V, set contains: GfA Elektromaten drive SE14.21-25.40 SK DES, GfA Elektromaten door control unit TS970 with CEE plug, 7m motor cable, torque-support bracketDescription:The set of GfA Elektromaten door drive SE14.21 and door control unit TS970 is the perfect choice for automating counter balanced doors. The drive by GfA Elektromaten comes with 140Nm of torque, 21 rpm and with a hollow-shaft diameter of 25.4mm it fits most sectional door types. In case of a power loss, the door can be operated by using the hand chain attached to the drive unit. The set also contains the door control unit TS970, for automatic or constant pressure to close operation. For connection of the drive to the door control, a 7m connection cable is included.Properties:Drive for counter-balanced doors GfA Elektromaten SE14.21Integrated digital limit switch DESEmergency operation via hand chainConnection cable with 7m lengthDoor control unit TS970

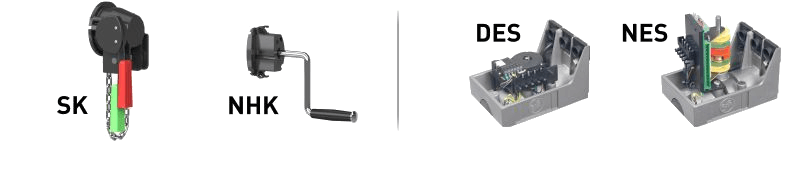

SE-ELEKTROMATEN, Drive for counter balanced sectional doors, output torque 140Nm, output speed 21 rpm, max. door weight 6000 N, supply voltage 3~230V/400V, hollow shaft diameter 25,4mm, with emergency hand chain for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.Description:The GfA Elektromaten SE14.21 SK-DES sectional door drive with an output torque of 140Nm and an output speed of 21rpm is a drive for counterbalanced sectional doors.Usual installation directly on the door shaftWith digital limit switch ensuring parameters do not need resetting following a power failureEmergency manual override with rapid hand chain operatorMax. door weight 6000NSupply voltage 3~230V/400V

Drive set for counter-balanced sectional doors, motor torque 90 Nm, 25.4mm hollow shaft, 400 V, set contains: GfA Elektromaten drive SE9.24-25.40 SK DES, GfA Elektromaten door control unit TS971 with CEE plug, 5m motor cable, torque-support bracketDescription:The set of GfA Elektromaten door drive SE9.24 and door control unit TS971 is the perfect choice for automating counter balanced doors. The drive by GfA Elektromaten comes with 90Nm of torque, 24 rpm and with a hollow-shaft diameter of 25.4mm it fits most sectional door types. In case of a power loss, the door can be operated by using the hand chain attached to the drive unit. The set also contains the door control unit TS971, for automatic or constant pressure to close operation. For connection of the drive to the door control, a 5m connection cable is included.Properties:Drive for counter-balanced doors GfA Elektromaten SE9.24Integrated digital limit switch DESEmergency operation via hand chainConnection cable with 5m lengthDoor control unit TS971

SE-ELEKTROMATEN, Drive for counter balanced sectional doors, output torque 50Nm, output speed 24 rpm, max. door weight 2500 N, supply voltage 3~230V/400V, hollow shaft diameter 25,4mm, with emergency hand chain for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.Description:GfA Elektromaten SE5.24 SK-DES, sectional door drive with an output torque of 50Nm and an output speed of 24 rpm is a drive for counterbalanced sectional doors.Normally installed directly on the door shaftWith digital limit switch DES, no need to reset the parameters following a power failureEmergency manual override with rapid hand chain operatorMax. door weight 2500NSupply voltage 3~230V/400V

SE-ELEKTROMATEN, Drive for counter balanced sectional doors, output torque 90Nm, output speed 24 rpm, max. door weight 4000 N, supply voltage 3~230V/400V, hollow shaft diameter 25,4mm, with gear release for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.Description:GfA Elektromaten SE9.24 ER-DES sectional door drive with an output torque of 90Nm and an output speed of 24 rpm is a drive for counterbalanced sectional doors.Normally installed directly on the door shaftWith digital limit switch DES, no need to reset the parameters following a power failureEmergency manual override with gear releaseMax. door weight 4000NSupply voltage 3~230V/400V

Drive set for counter-balanced sectional doors, motor torque 90 Nm, 25.4mm hollow shaft, 400 V, set contains: GfA Elektromaten drive SE9.24-25.40 SK DES, GfA Elektromaten door control unit TS970 with CEE plug, 5m motor cable, torque-support bracketDescription:The set of GfA Elektromaten door drive SE9.24 and door control unit TS970 is the perfect choice for automating counter balanced doors. The drive by GfA Elektromaten comes with 90Nm of torque, 24 rpm and with a hollow-shaft diameter of 25.4mm it fits most sectional door types. In case of a power loss, the door can be operated by using the hand chain attached to the drive unit. The set also contains the door control unit TS970, for automatic or constant pressure to close operation. For connection of the drive to the door control, a 5m connection cable is included.Properties:Drive for counter-balanced doors GfA Elektromaten SE9.24Integrated digital limit switch DESEmergency operation via hand chainConnection cable with 5m lengthDoor control unit TS970

torque support bracket for sectional door drives, GfA Elektromaten Series SG50

Motor cable for GfA Elektromaten drives with digital limit switch DES, length 7m

Motor cable for GfA Elektromaten drives with digital limit switch DES, length 5m

Door control unit TS 971 for GfA Elektromaten drives with digital or mechanical limit switch, automatic or constant pressure to close operation, with integrated radio systemDescription:The door control unit TS 971 by GfA Elektromaten is an automatic control panel for use with GfA Elektromaten drives with digital (DES) or mechanical (NES) limit switch system. The TS 971 control panel comes with an integrated radio receiver for 434 MHz radio products of different manufacturers. In addition, the TS 971 has an integrated receiver, that can be used for the wireless transmission of the door safety edge in combination with the optional WSD module.Properties:Protection class IP54 with CEE plug or IP65 for direct wiringIntegrated push button for UP-STOP-CLOSE commandsIntegrated radio receiver for 434 MHz wireless productsParameter setting via selector switch with digital displayTwo independent, programmable relay contact, e.g. for red-green traffic-lightsOperating modes: hold-to-run or self-hold/ automatic modeAutomatic detection of safety edge type (Optical edge FRABA VITECTOR, resistive edge 8k2 or NC-contact type 1k2 with testing)Automatic timer-to-closeAdjustable intermediate open position, e.g. half open, venting positionAutomatic ground adjustment (only DES) to compensate for rope-stretch or subsequent change in ground heightDue to the pre-assembled, pluggable motor cable, the TS 971 can easily be connected to the drive. A faulty wiring is hereby avoided, thus minimizing installation errors and time. The connection cable can be wired into the control panel housing from either top or bottom. In addition to the motor cable, the TS 971 can work with a multitude of additional inputs, e.g. rope-switches, photo eyes, sensing edges and many more.The TS 971 by GfA Elektromaten comes with the function "radio/ wireless" already integrated, the control panel has an integrated receiver for remotes from different manufacturers using a frequency of 434 MHz. An additional radio receiver is not needed. In addition the wireless sensing edge transmission system WSD is already integrated on the control panel side. The WSD system is a wireless transmission system for sensing edges and allows monitoring and transmission of the most common sensing edge types, as well as pedestrian door and rope tension switches. The use of a coil cord is no longer needed. Of course the TS 971 also allows for connection with a coil cord.The TS 971 has comfort functions and allows installation in more demanding applications. For standard-applications GfA Elektromaten offers the panel type TS970.

Door control unit for GfA Elektromaten drives with digital or mechanical limit switch, automatic or constant pressure to close operation, with 0,7m cable and CEE-plugDescription:The door control unit TS 970 by GfA Elektromaten is an automatic control panel for use with GfA Elektromaten drives with digital (DES) or mechanical (NES) limit switch system.Properties:Protection class IP54Integrated push button for UP-STOP-CLOSE commandsParameter setting via selector switch with digital displayIndependent, programmable relay contact, e.g. for red-green traffic-lightsOperating modes: hold-to-run mode or self-hold/ automatic modeAutomatic detection of safety edge type (Optical edge FRABA VITECTOR, resistive edge 8k2 or NC-contact type 1k2 with testing)Automatic timer-to-closeAdjustable intermediate open position, e.g. half open, venting positionDue to the pre-assembled, pluggable motor cable, the TS 970 can easily be connected to the drive. A faulty wiring is hereby avoided, thus minimizing installation errors and time. The connection cable can be wired into the control panel housing from either top or bottom. In addition tot he motor cable, the TS 970 can work with a multitude of additional inputs, e.g. rope-switches, photo eyes, sensing edges and many more.The TS970 by GfA includes most standard features of a modern door control panel and can therefore be used to operate most industrial doors. For more demanding applications, GfA Elektromaten offers the control panel types TS971 or TS981.
