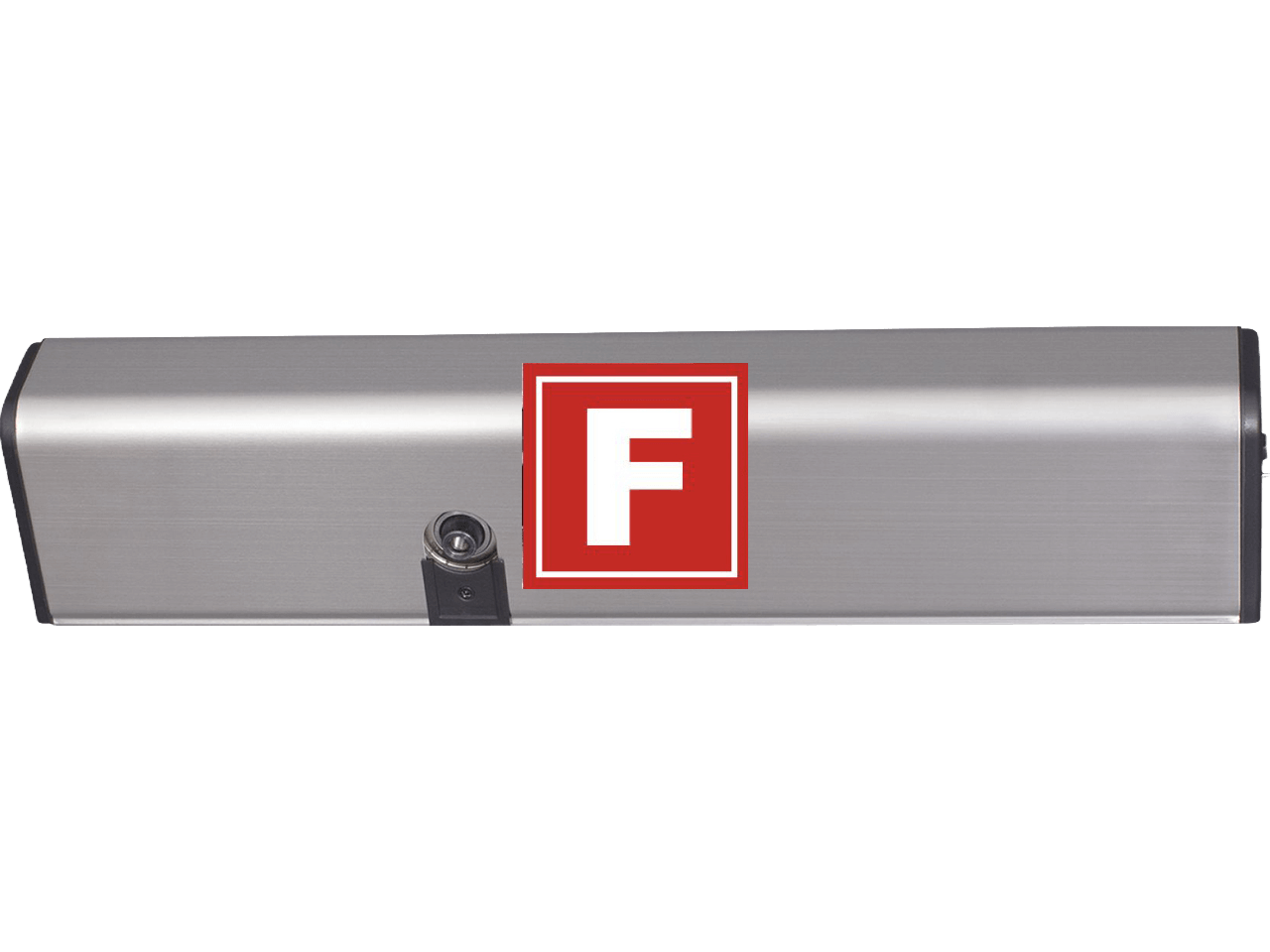

Record swing door drive DFA 127 FP GG EU F FULL POWER FIRE
€1,907.00
Product information "Record swing door drive DFA 127 FP GG EU F FULL POWER FIRE"
Drive for swing doors conforming to DIN EN 4-6, for use on fire doors, for sliding arm pushing or pulling, pre-assembled with aluminium chassis plate, connection: 230VAC, 50/60 Hz, 67W, for use as low-energy drive, delivery includes: ATE 127 motor gearbox unit, STG 127 control unit, NET 127 power supply unit, BDI programme switch, stainless steel drive cover.
Description:
The DFA 127 FP FIRE from record is a special approved drive system for the automation of swing doors for use in smoke and fire doors. In case of fire, signals from a smoke and heat detector or a fire alarm system trigger the immediate closure of the passageway by means of spring force. Double-sided fire doors can also be fitted with the drive system using the optional SRF 127 closing sequence control.
The DFA 127 FP has a compact design, works with a robust and proven technology and is characterised by its quiet running. The record DFA 127 FP can be fitted to door sizes EN4 to EN6. The spring forces required for this can be adjusted very easily on site.
Technical characteristics:
- Optimised for the movement of large, heavy smoke- and fire-door
- Compact design, thanks to integrated technical fire protection components
- Compatible with various fire protection and profile systems for instance Jansen, Forster, Heroal Schüco
- Robust and reliable mechanics
- DIN 18650-compliant technology, approved worldwide
- Suitable for: Fire doors and smoke barriers
