Record swing door drive DFA 127 FP GG EU FULL POWER
€1,822.00
Product information "Record swing door drive DFA 127 FP GG EU FULL POWER"

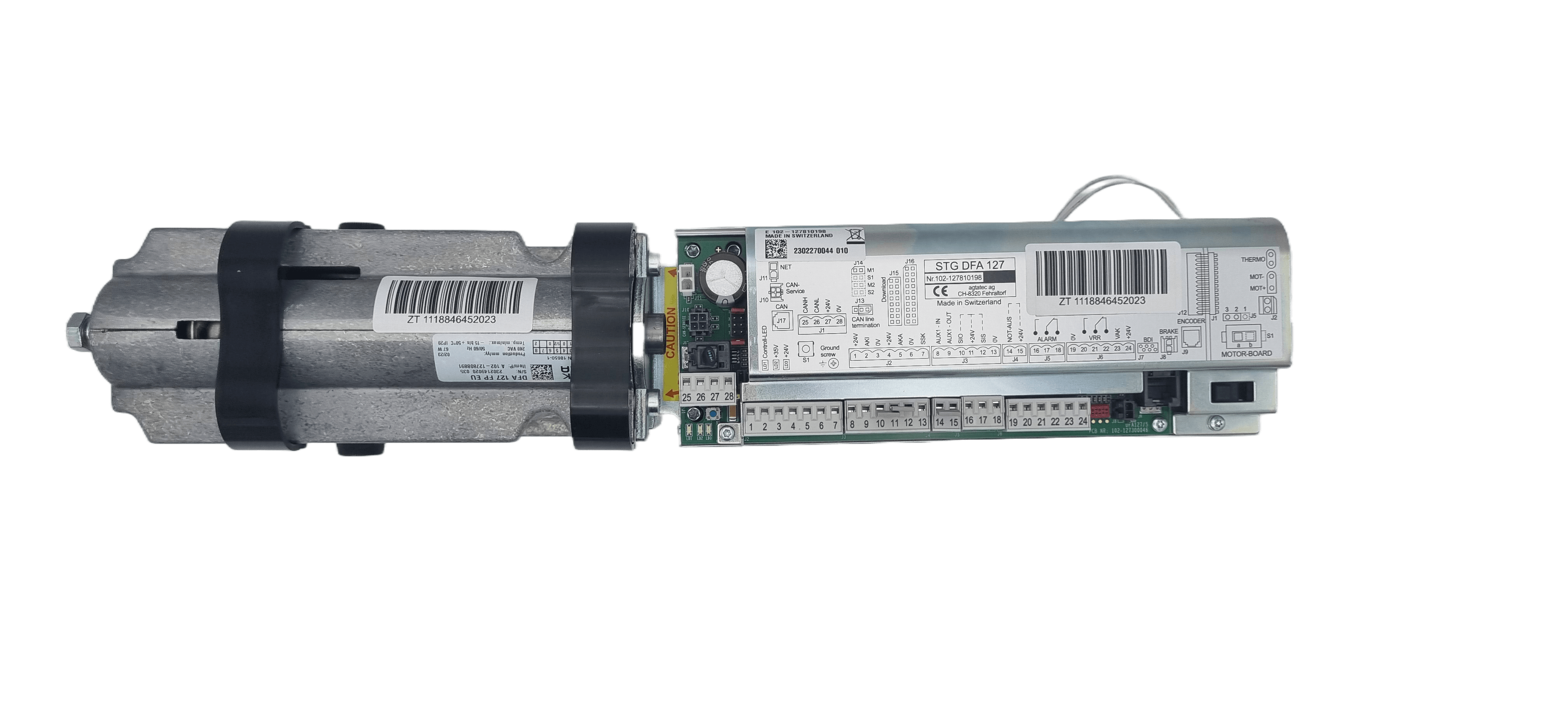

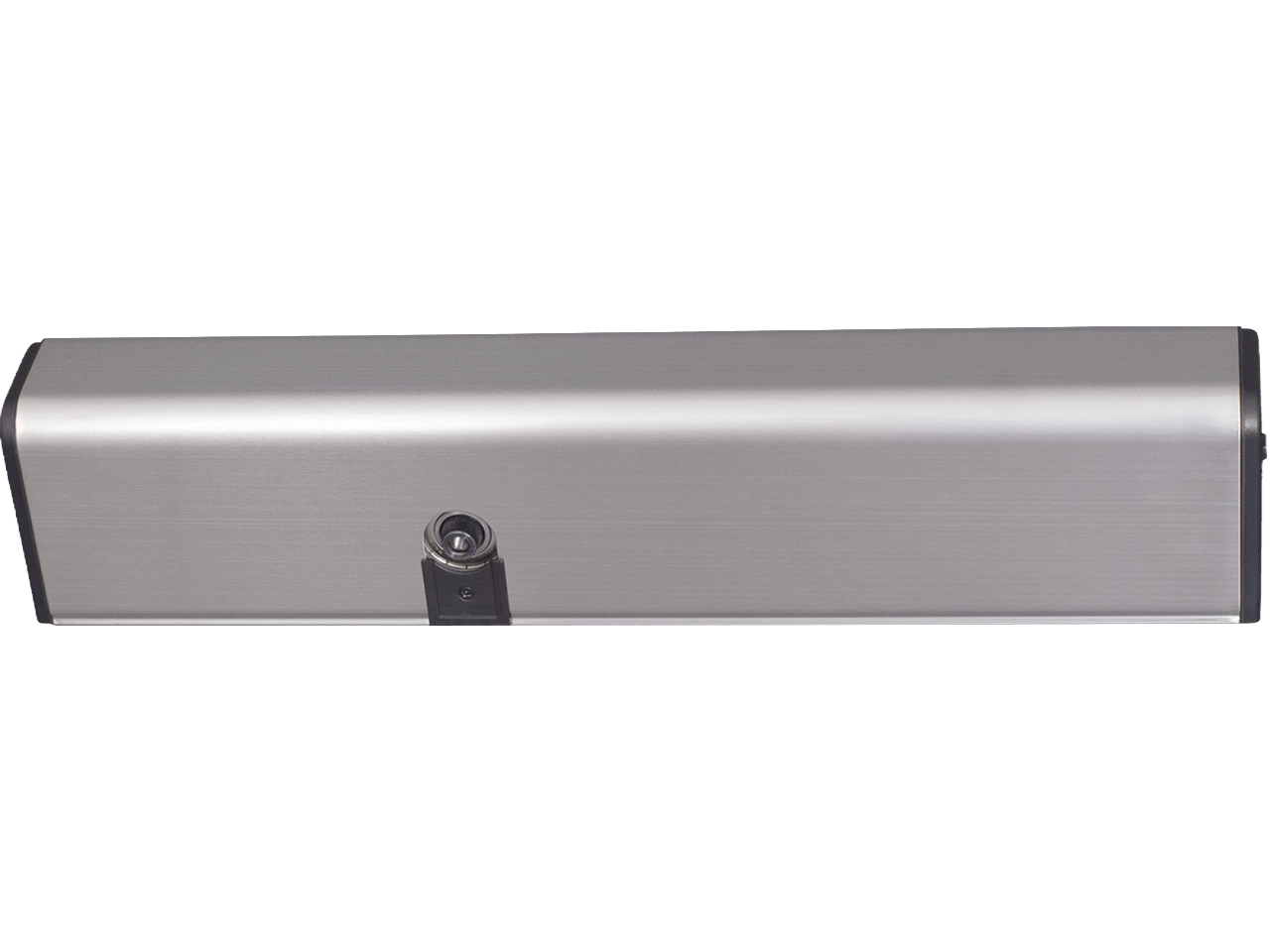

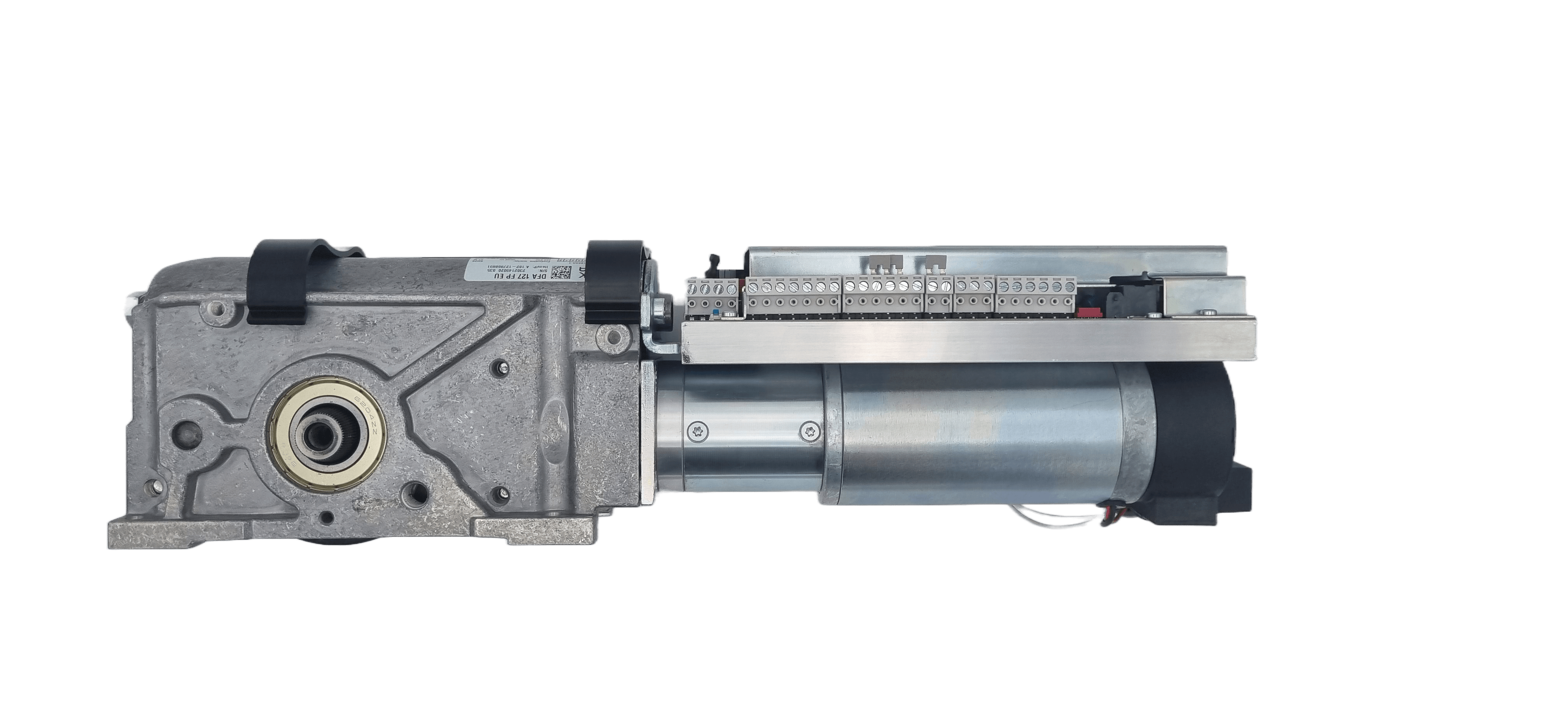

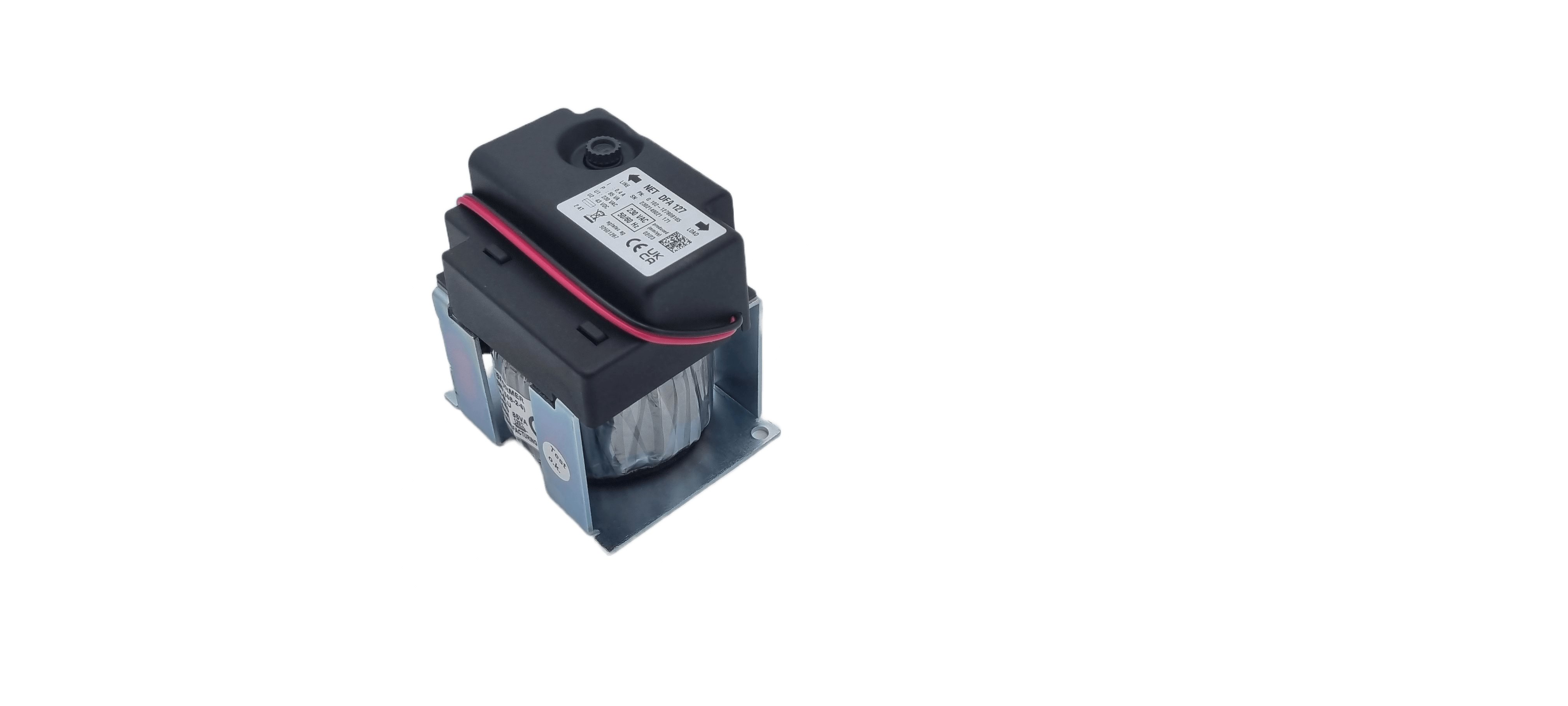

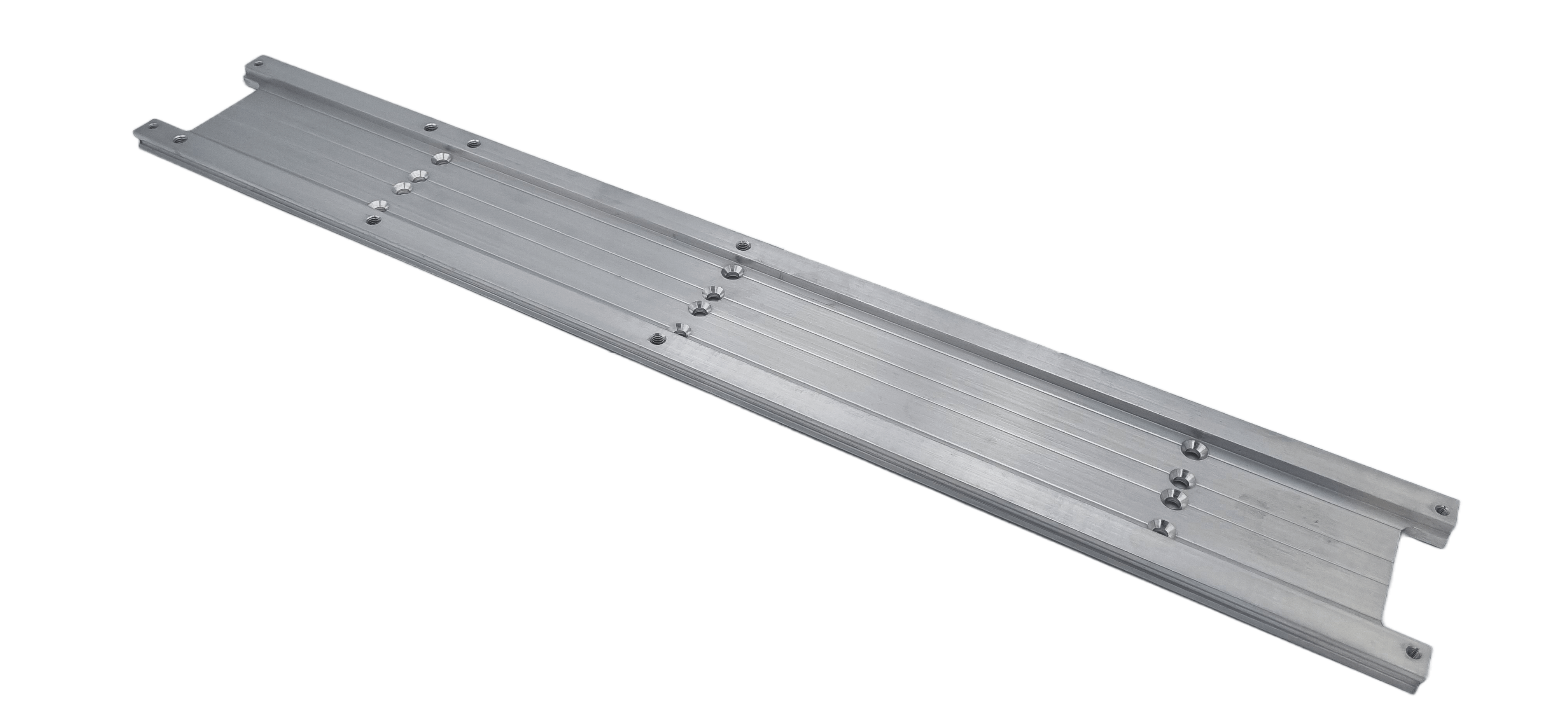

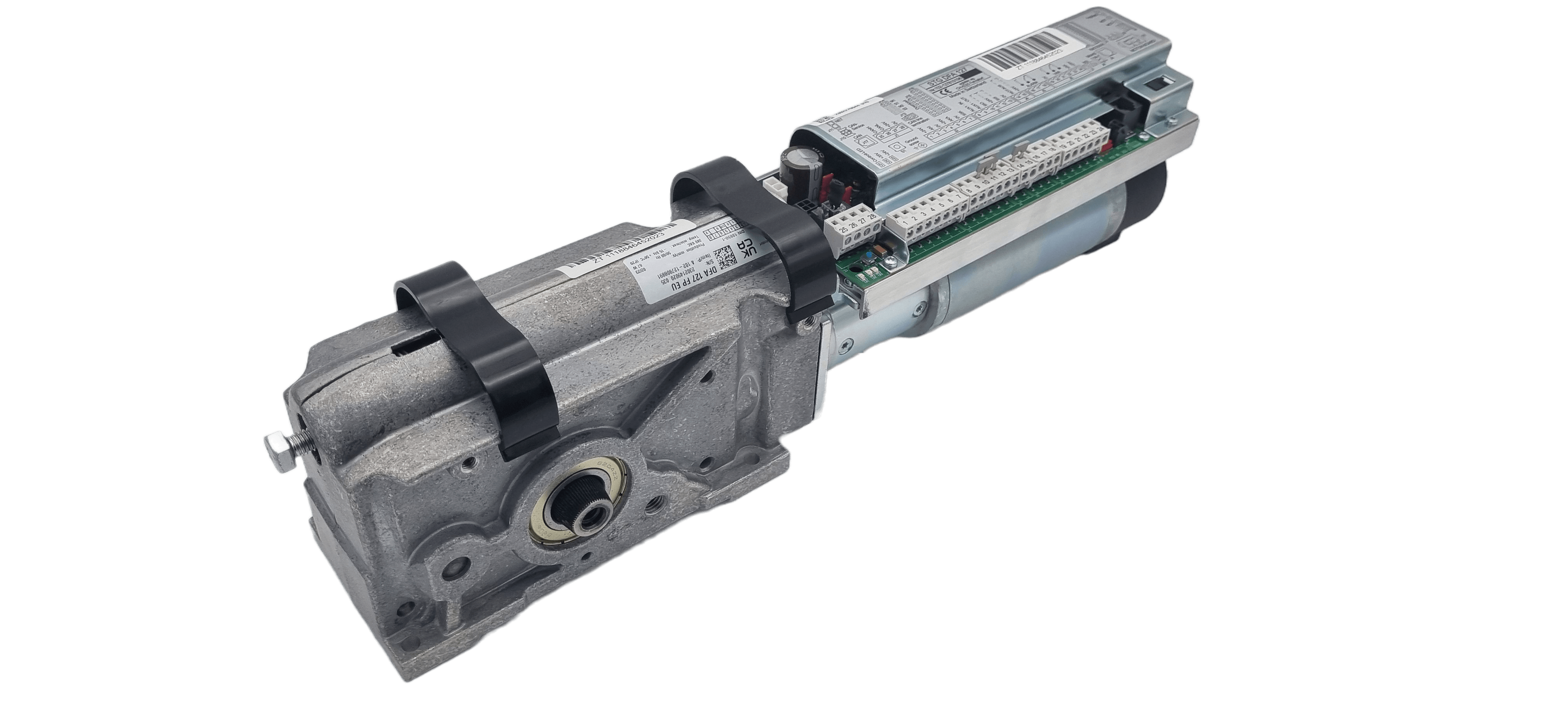

Drive for swing doors conforming to DIN EN 4-6, for sliding arm pushing or pulling, pre-assembled with aluminium chassis plate, connection: 230VAC, 50/60 Hz, 67W, for use as low-energy drive, delivery scope includes: ATE 127 motor gearbox unit, STG 127 control unit, NET 127 power supply unit, BDI programme switch, stainless steel drive cover.
Description:
The DFA 127 FP FULL POWER from record is a universal drive system for the automation of swing doors. The DFA 127 FP has a compact design, works with a mature and proven technique and is characterised by its quiet running. The record DFA 127 FP can be fitted to door frame sizes EN4 to EN6. The spring forces required for this can be adjusted very easily on site.
Technical properties:
- Optimised for the movement of large, heavy swing doors
- Universal drive system, programmable for various uses.
- Extensive functionality without add-on modules
- Robust and reliable mechanics
- Approved as a hold-open system for fire doors.
- Compatible with DIN 18 650 technology standards worldwide.
- Designed for disabled use on barrier-free special access suitable for:
- Shops
- Airports
- Administration and office buildings
- Restaurants and Hotels
Login
Spare parts
Connection cable STG-BDI 100 cm, STG-BDI 127 DFA cable , Length = 1000 mm
P1790 Drive cover 108, lengthened version 760 mm, raw aluminium
P1790 Drive cover 108, length 580 mm, raw aluminium
Drive cover 85 standard length 580 mm, raw aluminium
Drive cover 85 lengthened version 760 mm, polished stainless steel
Drive cover 85 standard length 580 mm, polished stainless steel
P1725 Chassis 108 DFA 127, modified, 580 mm length, designed for left or right hand installation on drives, raw aluminium
P1566 Chassis DFA 127, modified, length 580 mm, standard, raw aluminium
MS BDI-M DFA 127, BDI-M is absolutely necessary when using the DFA127 with external mechanical BDE, instead of toggle switch in the side cover, suitable for connecting a timer switch
Accessories
Direction-sensitive Radar motion detector for universal opening, adjustment by remote control (accessory), narrow or wide detection field, protection class IP54, 2.5m cable, mounting height 1.8 - 4.0mDescription:The EAGLE ARTEK radar detector from BEA offers a solution for every type of automatic door, regardless of the ambient conditions. The EAGLE ARTEK is a direction-detecting motion sensor for all types of automatic doors. The EAGLE ARTEK can be installed at a mounting height of up to 4 metres. The parameters can be configured flexibly and easily using a pushbutton or BEA remote control.Features: Improvement in the overall energy efficiency of buildings thanks to the directional sensitivity of the radar. This only detects movements approaching the door and ignores movements moving away. As a result, the door closes earlier and reduces the loss of heat or conditioned temperature. The size and shape of the detection fields can be customised to suit the environment and application. Thanks to the ARTEK radar antenna and direction-sensitive detection, the EAGLE ARTEK offers stability and reliability. As the drill holes of the EAGLE ONE have been adopted, the EAGLE ARTEK can easily be used to retrofit existing door systems. Feedback LED for the most important parameter settings of the sensor (field shape, field size and immunity).
Safety sensor for doors and windows, set contains 2 x Laser-Scanner (left- and right-hand installation), complete monitoring of the detection zone (70 laser points) and the pinch zone (100 laser points), max. range 4mDescription:The BEA LZR® FLATSCAN SW uses laser technology time-of-flight measurement) to monitor automatic swing doors. Full protection of the doors is guaranteed by 170 measurement points. One single FLATSCAN SW Module is enough to secure the entire door wing as well as the hinge and the area directly to the side of the closing edge.The LZR FLATSCAN can be used for monitoring as a pair (e.g. in swing doors), or as a single sensor (e.g. in windows). Properties:Maximum detection range of 4m (diagonal) with reflectivity of 2% (i.e. at 1.5m -> max. H = 3.7 m).Possible monitoring of the closing edgeCompact design (8.5 cm x 14.2 cm), can be integrated into any doorWorks with all floor types ((slatted floors, wire mesh, absorbent carpets, reflective flooring, slippery surfaces, etc.) and with the doors' surroundings (handrails, walls, radiators, dustbins, etc).One module per side is enough to secure the door wings as well as its hinges.Useable as a pair (i.e. for doors) or on its own (i.e. for windows).
Dual-Technology sensor for opening/ reversing doors and for presence detection, radar motion detector and active-IR-presence detector in one product, 2 IR-curtains (2 x 24 Active IR spots) to monitor an area in front of the door, adjustable via LCD-Display or remote (separate accessory), 10m cable, max. installation height 3,5mDescription:The IXIO-DT3 combines radar technology to open with infrared technology for the protection of automatic linear sliding doors and telescoping / revolving doors. It can be used both for escape routes and emergency exits, as well as for standard doors.Unidirectional - lowers the duration of the opening cycle because it masks cross-traffic movement48 infrared spots distributed over 2 curtains avoid anyone coming into contact with the doorIntuitive settings on an LCD screenConforms to EN16005/ DIN18650ESPE Type 2 conforms to IEC61496-1:2012 and PL c/ Cat. 2 conforms to EN ISO 13849-1:2008
Adapter frame for installation of the operating unit in the JUNG uP or aP frame switch range
Mechanical operating unit BDE-M for DFA 127, operation via key (2 pieces included), functions: Summer/permanently open/manual operation and locked, suitable for JUNG frames (not included in the scope of delivery) Note: The BDI-M mounting kit is absolutely necessary for use with DFA 127 swing door operators
The BDE-D EU operating unit is used to control the DFA 127 swing door drive from record. Standard with LCD display and electronics suitable for JUNG frames (not included in the scope of delivery, see accessories)
Connection cable STG-BDI 100 cm, STG-BDI 127 DFA cable , Length = 1000 mm
P1790 Drive cover 108, lengthened version 760 mm, raw aluminium
P1790 Drive cover 108, length 580 mm, raw aluminium
Drive cover 85 standard length 580 mm, raw aluminium
Drive cover 85 lengthened version 760 mm, polished stainless steel
Drive cover 85 standard length 580 mm, polished stainless steel
P1725 Chassis 108 DFA 127, modified, 580 mm length, designed for left or right hand installation on drives, raw aluminium
P1566 Chassis DFA 127, modified, length 580 mm, standard, raw aluminium
Jung/Möller Reset button for the Brandbox
MS BDI-M DFA 127, BDI-M is absolutely necessary when using the DFA127 with external mechanical BDE, instead of toggle switch in the side cover, suitable for connecting a timer switch
Spigot shaft 25, standard for the GG and GG1 slide arms
record Slide Arm PULL GG2, includes lever adapter 20 (D= 40 mm), spigot shaft 10 mm, recess depth +/- 10 mm
record Slide Arm PULL GG, includes lever adapter 20 (D= 40 mm), spigot shaft 25 mm, recess depth +/- 10 mm
