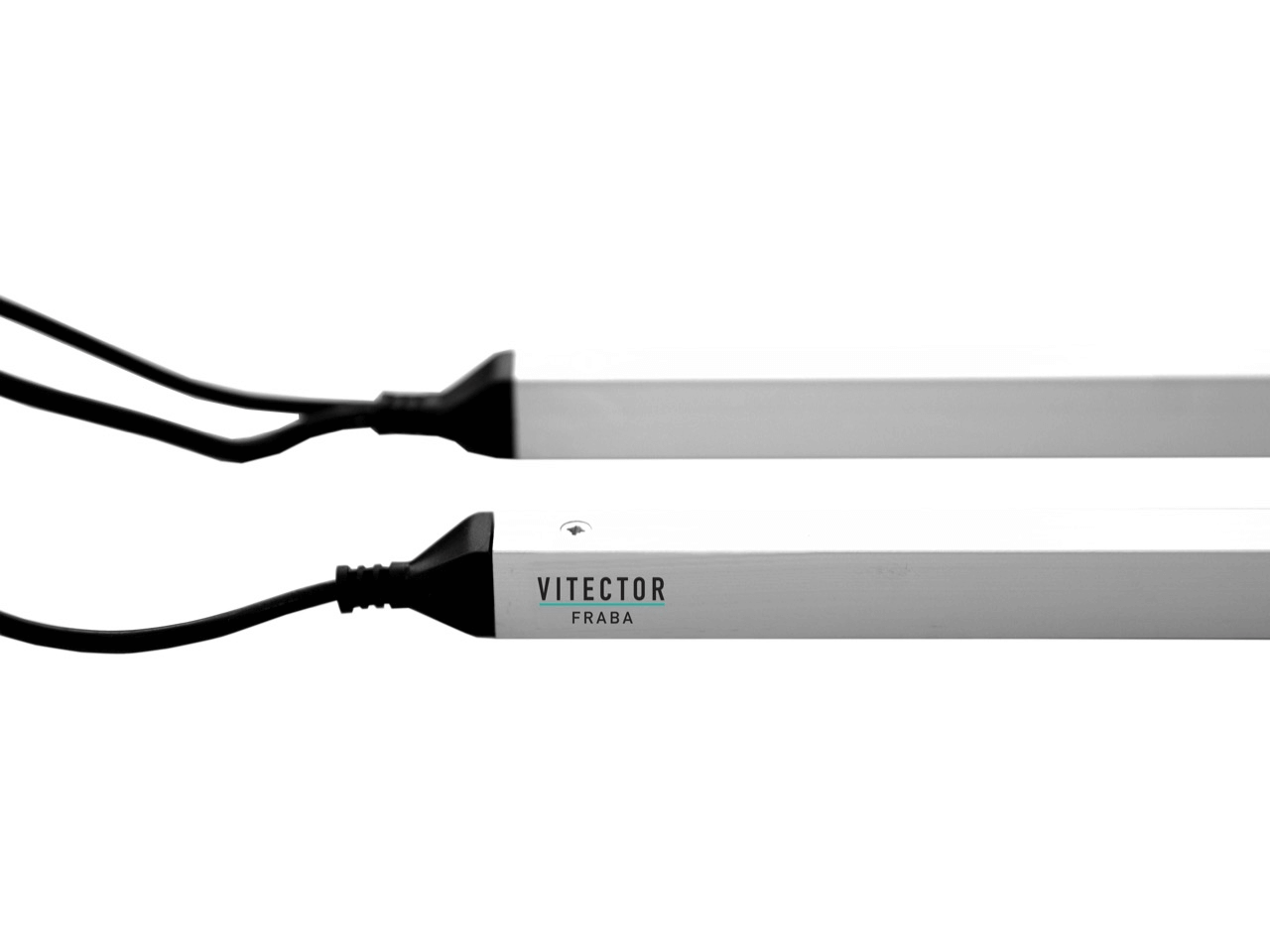

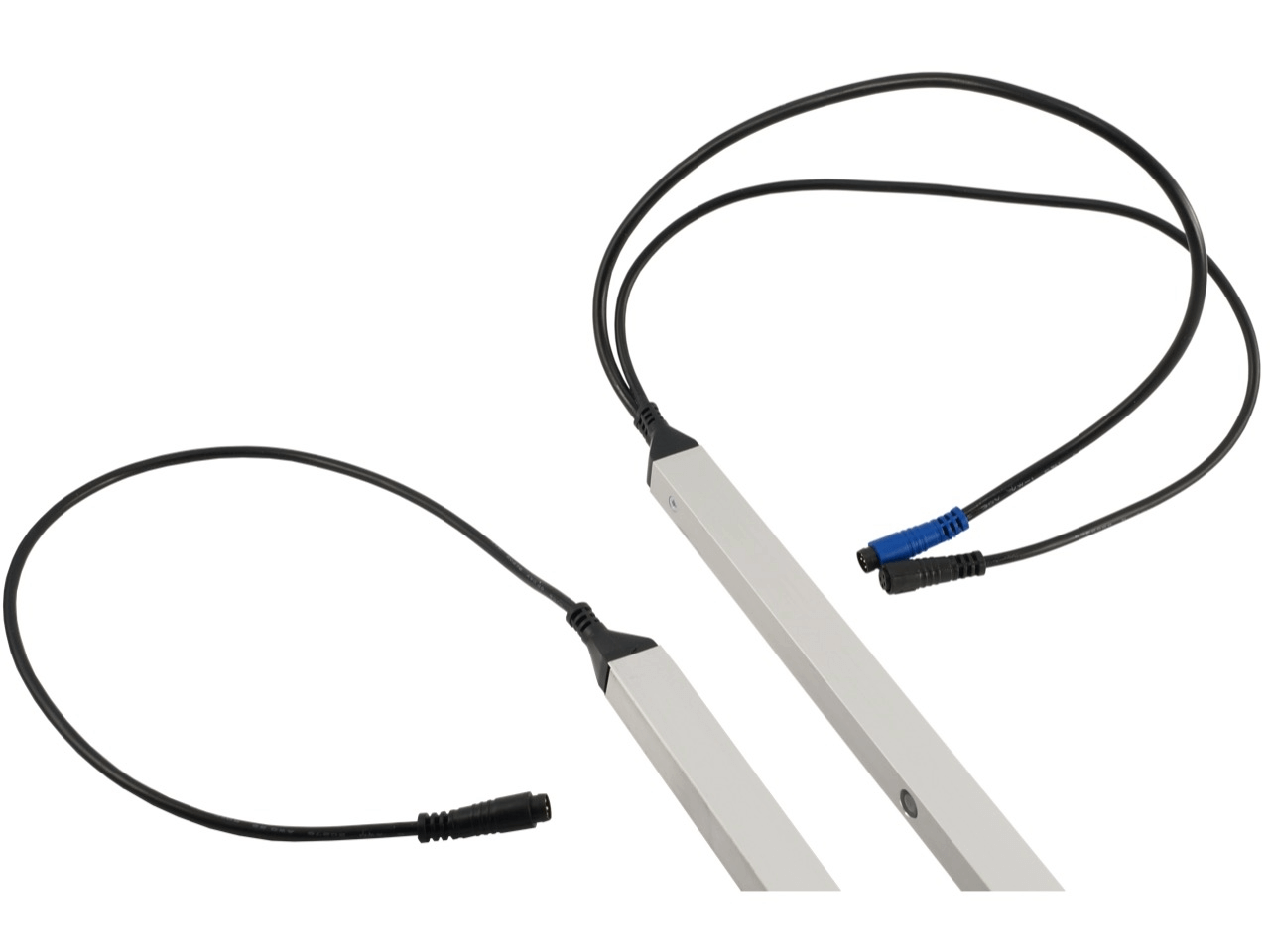

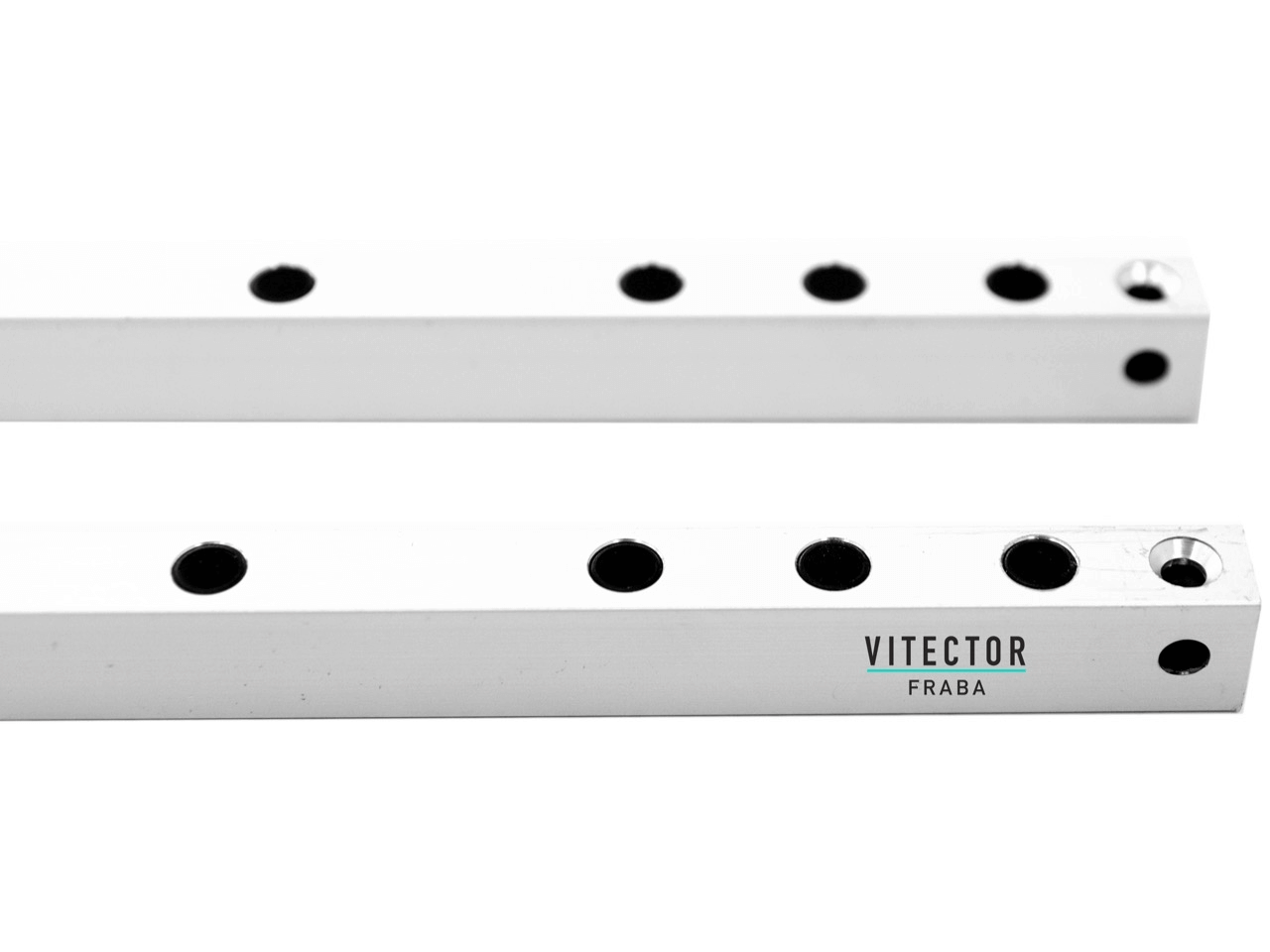

FRABA VITECTOR RAY-LG 1524 Light Curtain 2590mm Transistor Output

Product description: certified E-device acc. to EN 12453:2017, for doors with a max. closing speed of 1,6 m/s and max. opening speed of 3 m/s, door blanking function, PNP/NPN- and FSS/ OSE-output, with protection field height of 2500mm, sensor length 2420 mm, number of beams 22, resolution/beam spacing: 50 mm in the lower area up to 500 mm, above that 185 mm; incl. 10,0m synch-cable and 5,0m connection cable CEDES model designation: Gridscan/ Pro SY-2500-22   GridScan/Pro - Reliable SIL 2-certified safety light curtain for industrial doorsDiscover an innovative solution for the highest safety standards on industrial doors with the GridScan/Pro from CEDES. The SIL2-certified GridScan/Pro light curtain with TÜV type approval can be used on all doors and is also ideal for modernisation projects.Features:Versatile integration: the GridScan/Pro's multi-output design enables seamless integration into various door control units. The switchable operating mode from blanking to static operation extends the applicability of the light curtain and ensures that it can be flexibly adapted to the requirements of different door systems.Direct installation: The GridScan/Pro can be installed directly into the guide rail of the door, enabling efficient door blanking. This ensures precise and simple alignment for maximum safety.Versatile outputs: The combined output with PNP/NPN (push-pull) and FSS/ OSE offers a wide range of connection options. A second output provides additional information and increases the flexibility of the system.Modernisation projects: The GridScan/Pro from CEDES is ideal for modernisation projects and can also be used on older door control units with an optional OSE Monitoring unit / Evaluation unit. This enables efficient and cost-effective upgrading of existing door systems to the latest safety standards.High speeds: The sensor's high processing speed means it can be used for door speeds of up to 1.6 m/s. This makes the GridScan/Pro Light curtain perfect for applications with high-speed doors, sectional doors, rolling doors and many other door types.SIL 2 without test: The fulfilment of SIL 2 without test when selecting the FSS output underlines the high safety level of this light curtain

Product description:  certified E-device acc. to EN 12453:2017, for doors with a max. closing speed of 1,6 m/s and max. opening speed of 3 m/s, door blanking function, PNP/NPN- and FSS/ OSE-output, with protection field height of 1960mm, Sensor length 1880 mm, number of beams 19, resolution/beam spacing: 50 mm in the lower area up to 500 mm, above that 185 mm; incl. 10,0m synch-cable and 5,0m connection cable CEDES model designation: GridScan/Pro SY-1960-19   GridScan/Pro - Reliable SIL 2-certified safety light curtain for industrial doorsDiscover an innovative solution for the highest safety standards on industrial doors with the GridScan/Pro from CEDES. The SIL2-certified GridScan/Pro light curtain with TÜV type approval can be used on all doors and is also ideal for modernisation projects.Features:Versatile integration: the GridScan/Pro's multi-output design enables seamless integration into various door control units. The switchable operating mode from blanking to static operation extends the applicability of the light curtain and ensures that it can be flexibly adapted to the requirements of different door systems.Direct installation: The GridScan/Pro can be installed directly into the guide rail of the door, enabling efficient door blanking. This ensures precise and simple alignment for maximum safety.Versatile outputs: The combined output with PNP/NPN (push-pull) and FSS/ OSE offers a wide range of connection options. A second output provides additional information and increases the flexibility of the system.Modernisation projects: The GridScan/Pro from CEDES is ideal for modernisation projects and can also be used on older door control units with an optional OSE Monitoring unit / Evaluation unit. This enables efficient and cost-effective upgrading of existing door systems to the latest safety standards.High speeds: The sensor's high processing speed means it can be used for door speeds of up to 1.6 m/s. This makes the GridScan/Pro Light curtain perfect for applications with high-speed doors, sectional doors, rolling doors and many other door types.SIL 2 without test: The fulfilment of SIL 2 without test when selecting the FSS output underlines the high safety level of this light curtain

Intelligent light curtain, OSE-output, Length 1830mm, 20 beams, EN 12453 Type E safety device, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.

Intelligent light curtain, OSE-output, Length 1830mm, 20 beams, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.

Intelligent light curtain, transistor-output, Length 2590mm, 24 beams, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.

Intelligent light curtain, OSE-output, Length 2590mm, 24 beams, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.

Intelligent light curtain, OSE-output, Length 2590mm, 24 beams, EN 12453 Type E safety device, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.

10m cable, M8 4-pin male/ female connector, usable as synchronisation cable for light curtains, can also be used to extend the length of the sync-cable

5m cable, M8 6-pin male connector to open wires, usable as connection cable for light curtains
