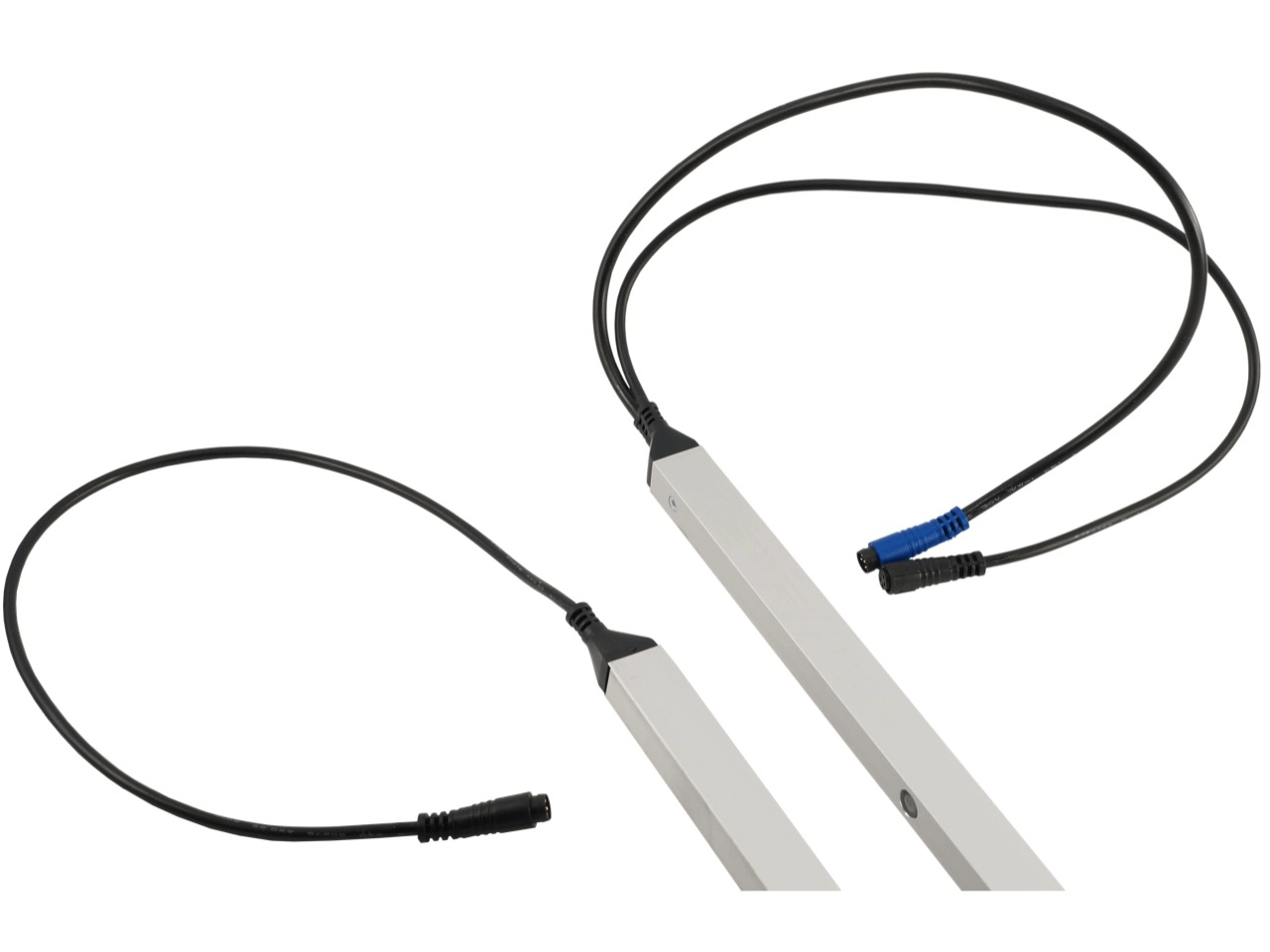

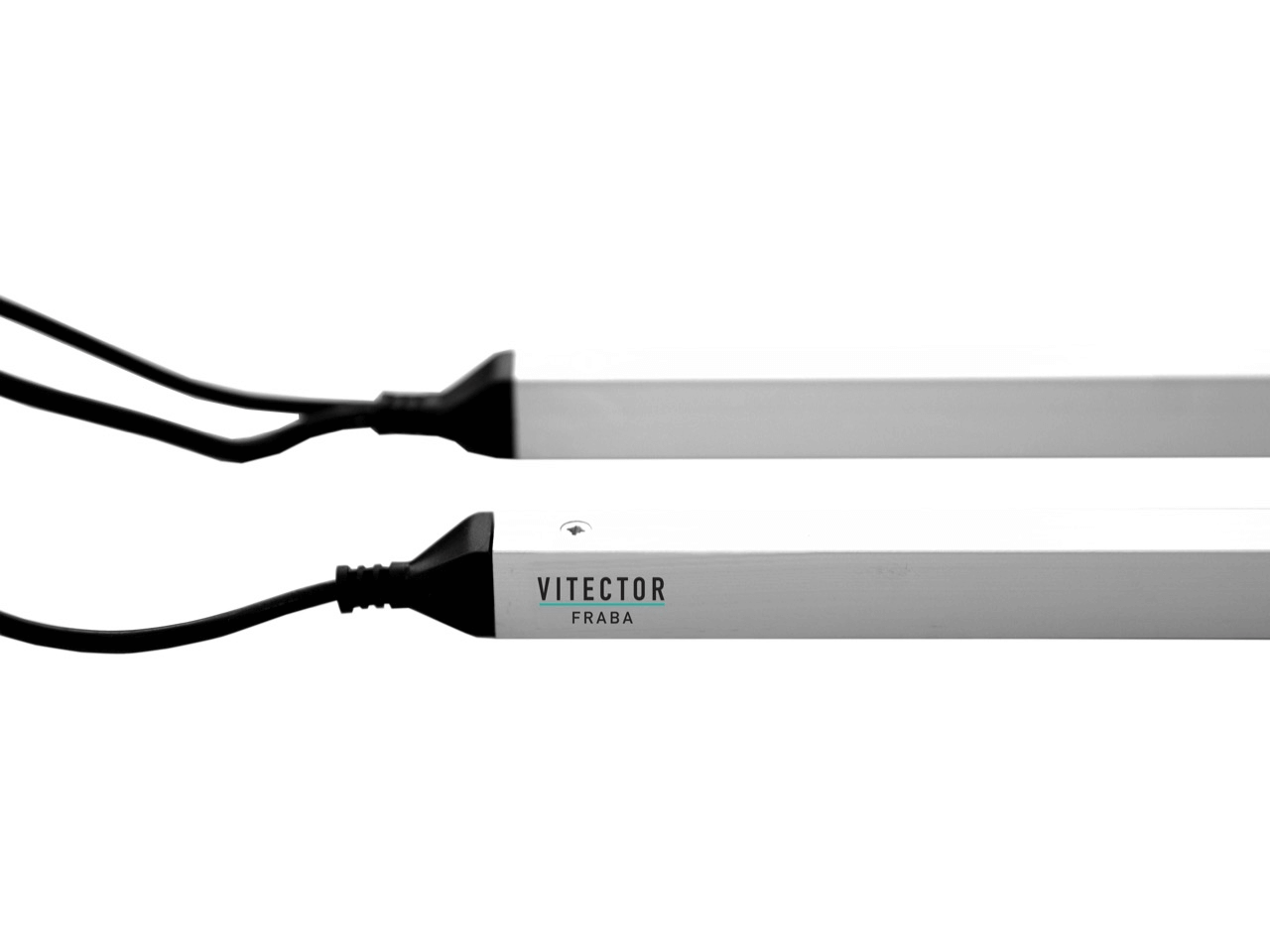

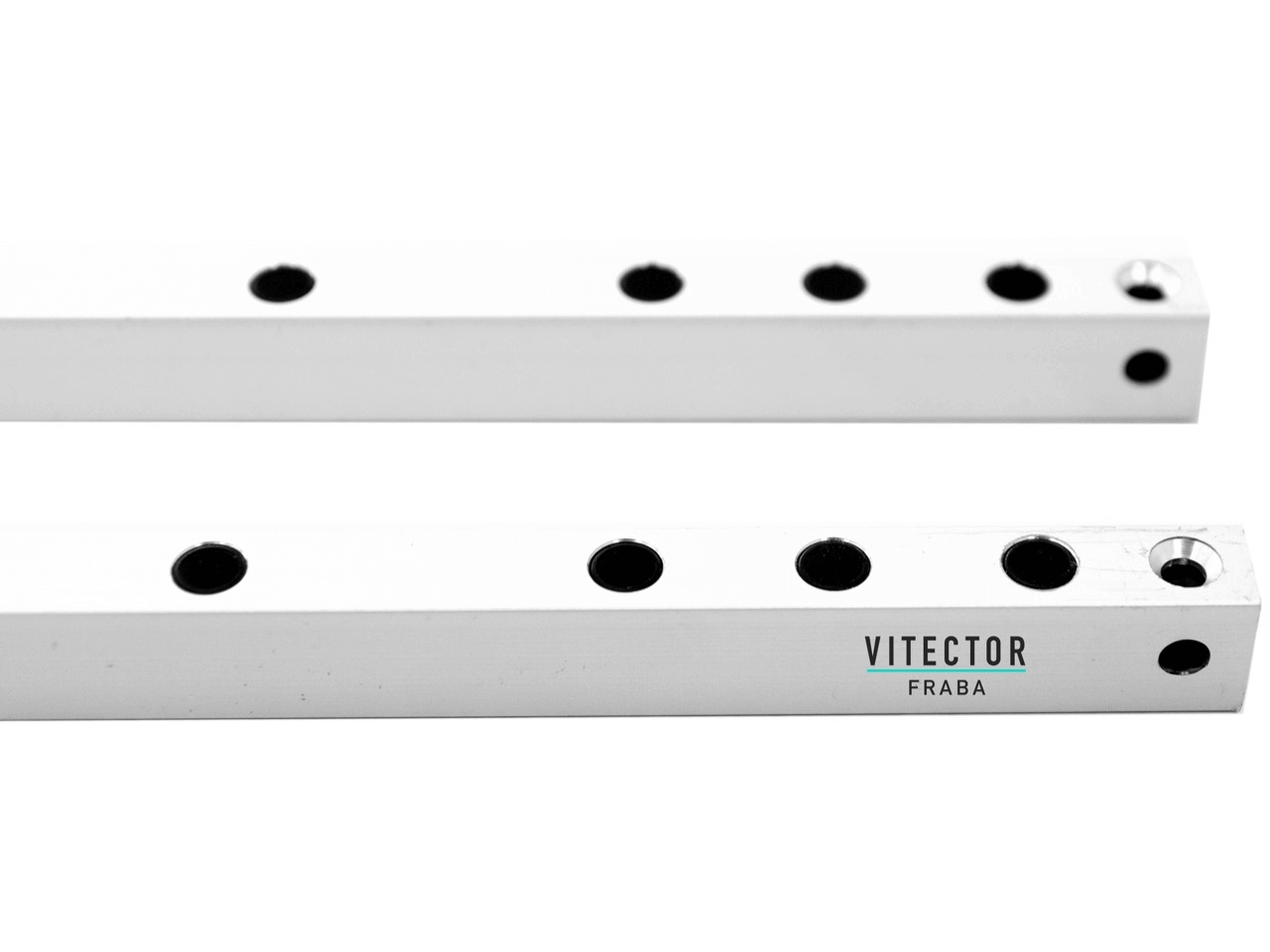

FRABA VITECTOR RAY-LG 2120 Light Curtain 1830mm OSE-Output Crossbeams
€0.00
Product information "FRABA VITECTOR RAY-LG 2120 Light Curtain 1830mm OSE-Output Crossbeams"
Intelligent light curtain, OSE-output, Length 1830mm, 20 beams, sync-cable 10m length, signal cable 5m length
Description:
Please note:
This product has been discontinued by the manufacturer and is no longer available.
In the "follow-up articles" tab you can find a link to the suggested replacement product.
| Cable Length: | 5.0 m |
|---|---|
| Connection Type: | Cable, w/o plug |
| Material: | Aluminium |
| Max. Operating Temperature: | +60 °C |
| Min. Operating Temperature: | -40 °C |
| Output: | OSE |
| Protection Class: | IP 67 |
| Protection Height: | 1600 mm |
| Range: | 8 m |
| Supply Voltage: | DC 10-30 V |
| max. Current Consumption: | 100 mA |
