ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm, mit angegossener Rampenschiene
Picture can deviate from the original
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "ASO Safety Sicherheitskontaktmatten Sentir mat, Noppenoberfläche, 500 x 1.000 mm, mit angegossener Rampenschiene"
The SENTIR mat 14-1T4.0-NP is a high-quality safety contact mat from ASO Safety for surface monitoring on machines, robots and automated systems. Even slight movements are reliably detected.
Key features:
- Robust PUR moulded construction with non-slip dotted surface
- Size: 500 x 1,000 mm (plus ramp rail)
- With moulded ramp rail (30 mm)
- Fast response time < 25 ms for maximum protection
- Dust and water jet protected (IP65) for industrial use
- High load capacity up to 2000 N – ideal for harsh production environments

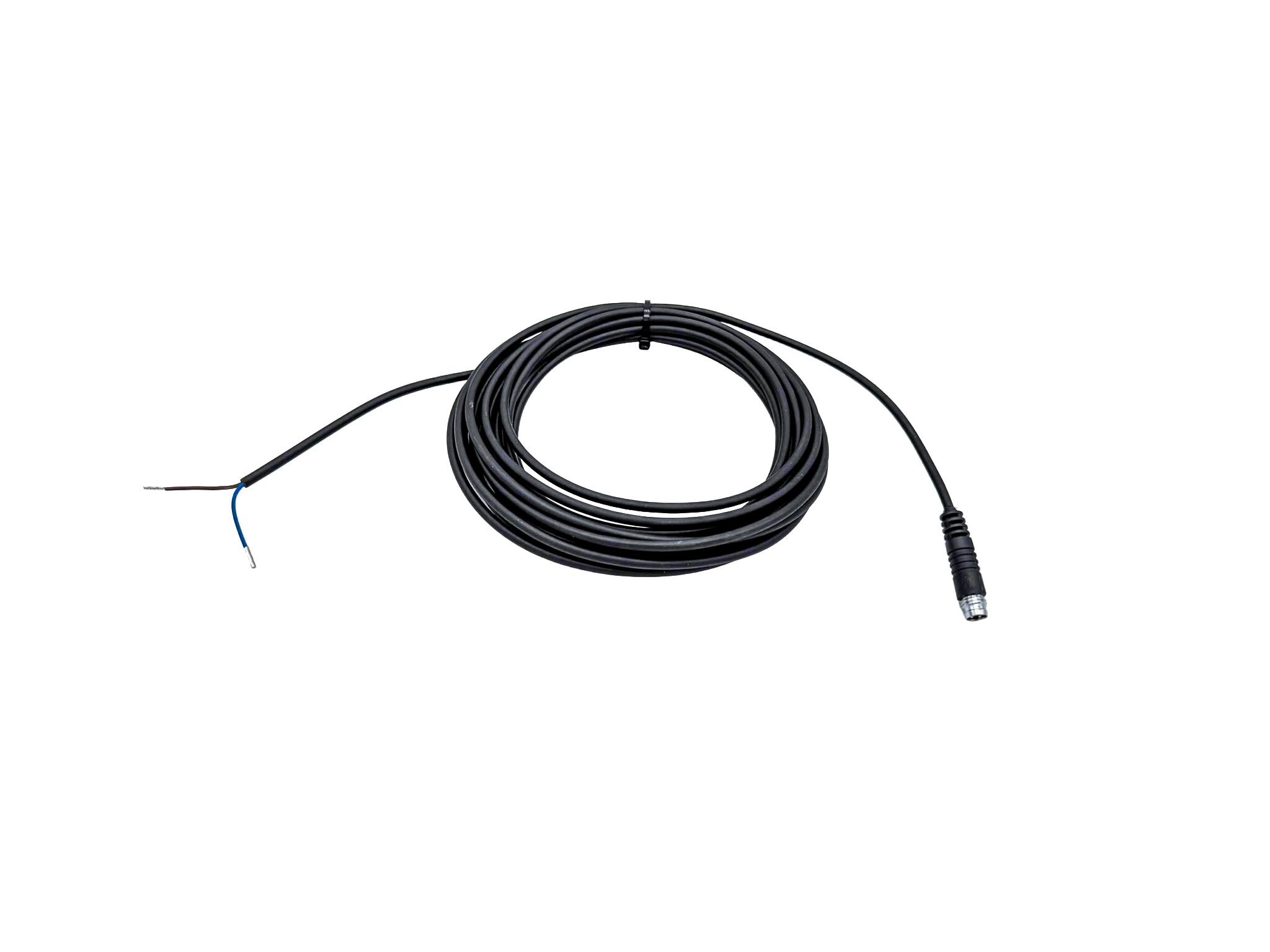

- Simple plug & play installation via pre-assembled M8 connectors (male/female)
- Switching pressure: approx. 150 N (test body Ø 80 mm)
- Inactive edge: 42 mm
- Expandable: series connection of several mats up to a total area of 10 m². For flush installation, the ramp rail can be easily cut off at the specified cutting gap.
✅ Ideal for: robot cells, machining centres, packaging machines, assembly and production lines.
For surface monitoring, control tasks and signal transmission in industrial plants, machine environments or automated workstations.
| Connection Type: | M8-Steckverbinder male/female |
|---|---|
| Material: | PUR |
| Max. Operating Temperature: | +55 °C |
| Min. Operating Temperature: | -10 °C |
| Protection Class: | IP 65 |
