GfA Elektromaten SE 6.65 DU ER DES Ø25,4 Drive for Sectional Doors with Direct Inverter 60Nm Emergency Release
€1,195.00
Product number:
TA1000063
Product information "GfA Elektromaten SE 6.65 DU ER DES Ø25,4 Drive for Sectional Doors with Direct Inverter 60Nm Emergency Release"

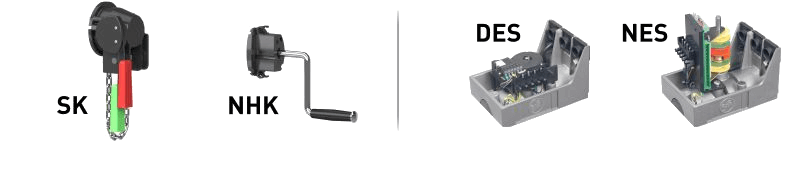

SE-ELEKTROMATEN, Drive for counter balanced sectional doors, output torque 60Nm, variable output speed up to 65 rpm, max. door weight 3000 N, supply voltage 3~400V, hollow shaft diameter 25,4mm, with emergency hand chain for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.
| Emergency Operation: | Gear Release |
|---|---|
| Hollow- / Output-Shaft (Ø): | 25.4 mm |
| Limit Switch type: | digital Limit Switch DES (GfA Elektromaten) |
| Limit Swtich Range: | 20 |
| Locking Torque: | 450 Nm |
| Output Torque: | 60 Nm |
| Power: | 0.45 kW |
| Supply Voltage: | 3~400 V |
| max. Movements per Hour: | 20 |
| max. Output Speed: | 65 min^-1 |
| min. Output Speed: | 20 min^-1 |
