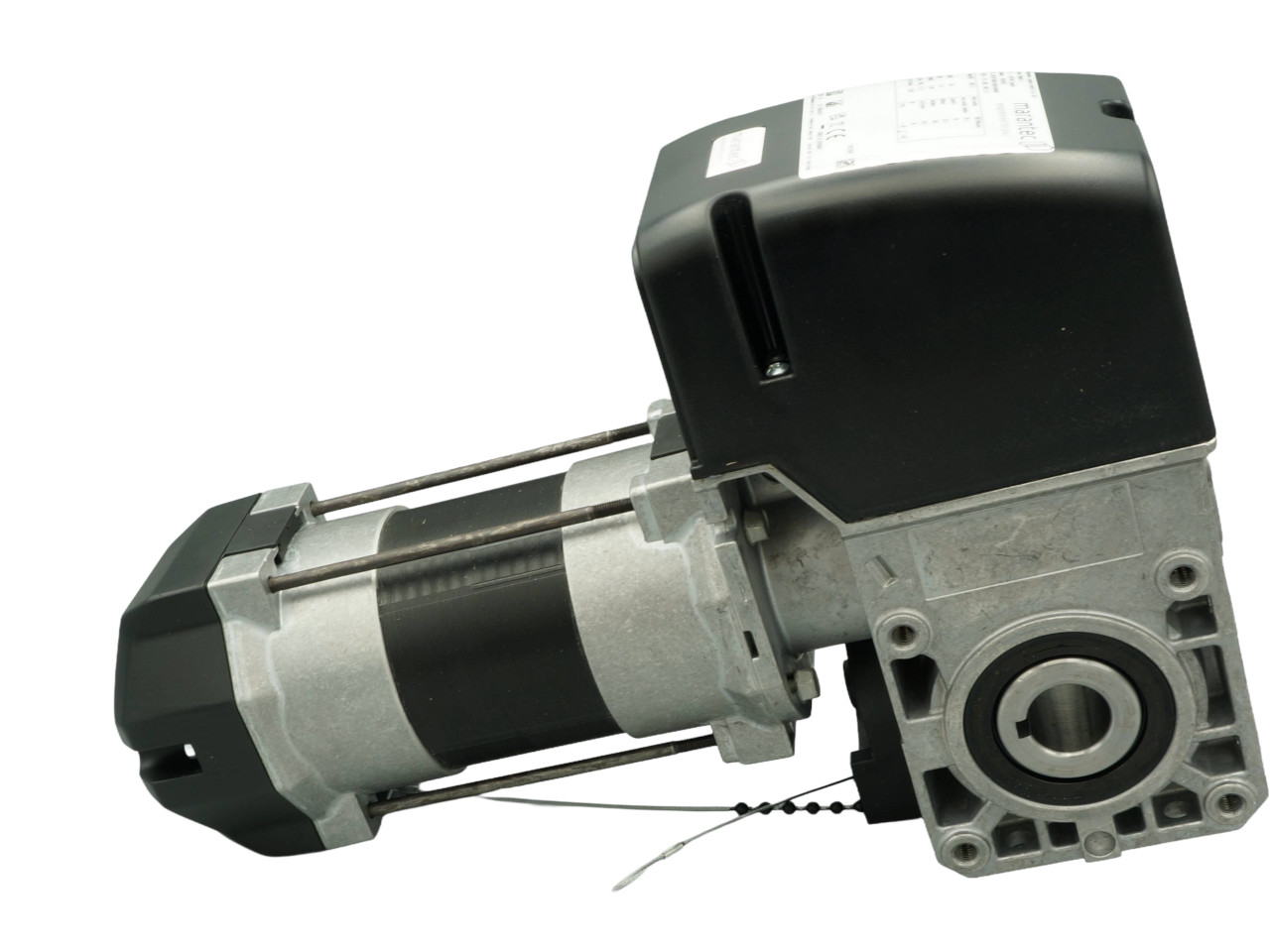

MFZ Marantec Ovitor STA 1-10-30 E MEC Ø25,4-Drive for Sectional Doors 100Nm with Emergency Release
€549.00
delivery time: 3-5 working days
Product information "MFZ Marantec Ovitor STA 1-10-30 E MEC Ø25,4-Drive for Sectional Doors 100Nm with Emergency Release"
Industrial door operator for sectional doors that are counter balanced, 3-phase current motor, output torque 100 Nm, output speed 30 rpm, hollow shaft diameter 25.4 mm, with emergency release, with mechanical limit switch (MEC), limit switch range: maximum 20 revolutions
Description:
The drives of the STA/STAW series are ideally designed for counter-balanced sectional doors. This is guaranteed by a special gear with a motor developed to ensure maximum strength in the smallest space. Therefore, the drive is extremely compact, and its casing is very slim.
Features:
- Aluminium die-cast casing
- Rolling worm shaft
- Dual worm shaft bearing
- Thermal protection built into the motor windings
- 230 / 400V / 50 Hz / 3~, custom solutions on request
- Plug-in connectors
| Emergency Operation: | Gear Release |
|---|---|
| Hollow- / Output-Shaft (Ø): | 25.4 mm |
| Limit Switch type: | mechanical Limit Switch MEC (MFZ Marantec) |
| Limit Swtich Range: | 20 |
| Output Speed: | 30 min^-1 |
| Output Torque: | 100 Nm |
| Power: | 0.55 kW |
| Supply Voltage: | 3~400 V |
| max. Door Weight: | 5735 N |
| max. Holding Torque: | 600 Nm |
| max. Movements per Hour: | 20 |
