Bircher DWGK DW40 Airwave Switch Normally Closed Enclosure
€54.00
delivery time: 3-5 working days
Product information "Bircher DWGK DW40 Airwave Switch Normally Closed Enclosure"

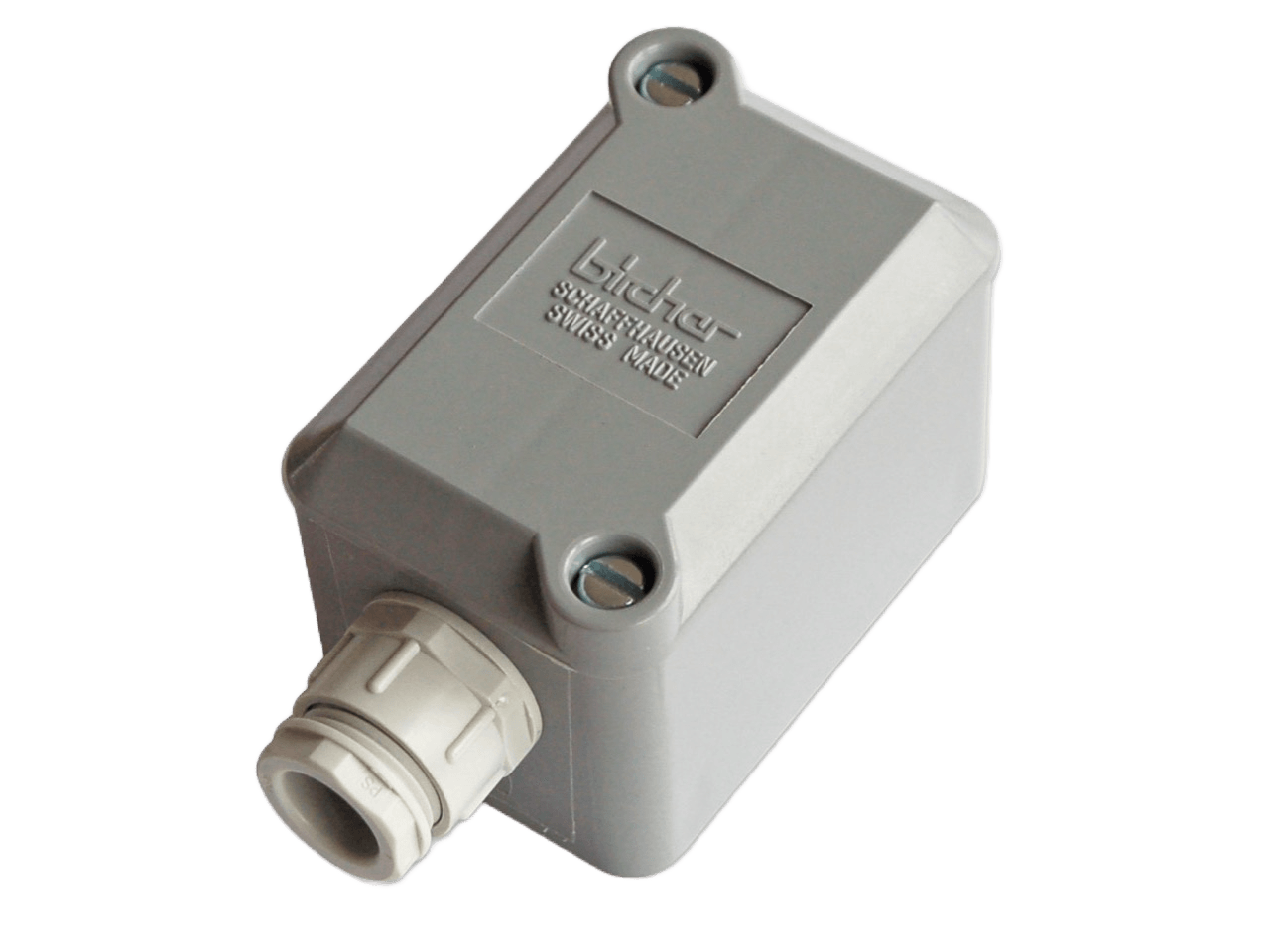

airwave switch DW40 normally closed contact in plastic enclosure
Description:
The Bircher Reglomat DW40 airwave switch is also available in an impact-resistant plastic housing unit. The airwave switch converts the airwaves from a signal generator (pushbutton, floor-mounted pressure sensing strip, rubber profile) into an electrical switching signal. Just a small amount of pressure of 3 or 4 mbar is enough to ensure the switch generates an electrical signal. Bircher Reglomat's DW-switches have proven reliable millions of times and are installed in a wide variety of applications.
Properties
Contact type: Normally Closed Contact (NCC), opens upon contact with the switching mechanism- With connecting terminals and latch plates 6.3mm
- Mounted in an impact-resistant plastic housing
- Housing unit protection class: IP65 (EN60529)
| Connection Type: | Screw Terminal |
|---|---|
| Housing: | Screw-Housing |
| Max. Operating Temperature: | +70 °C |
| Min. Operating Temperature: | -30 °C |
| Output: | NC |
| Protection Class: | IP 65 |
| max. Switching Current: | 0.5 A |
Login
Alternative article
Airwave switch, normally closed contact, in IP65 enclosure, with M16 cable gland and silicone hoseDescription:The FRABA VITECTOR DW3O-200 airwave switch converts the pressure wave from a signal transmitter (e.g. push button, floor contact wave, threshold tread-mat, rubber contact strip) into an electrical switch signal. These airwave switches from FRABA VIECTOR are installed into the most diverse applications.Properties:Contact type opener, opens upon contact with the switching mechanismIn IP65 housingWith screw connection
Accessories

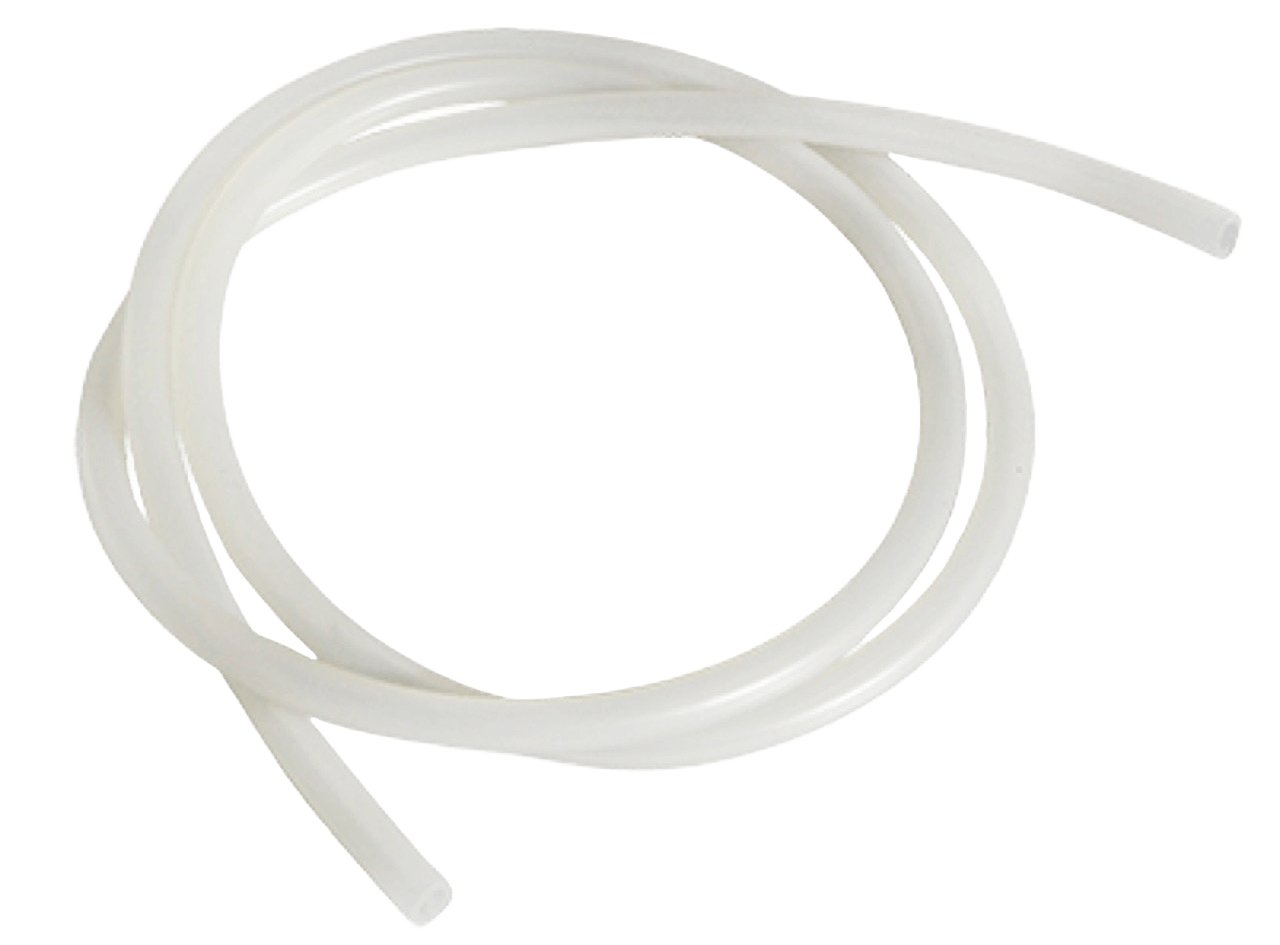

Silicone hose, hardness shore A 55-60° +/- 5°, operating temperature -60 bis +200°C, 2m length
