FRABA VITECTOR OSE-S 6600 Optical Edge Sensors Transmitter Tx 0,5m/Receiver Rx 0,5m PVC-Cable GfA-plug
€57.00
delivery time: 3-5 working days
Product information "FRABA VITECTOR OSE-S 6600 Optical Edge Sensors Transmitter Tx 0,5m/Receiver Rx 0,5m PVC-Cable GfA-plug"
Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, PVC-cable, cable length 0,5m/0,5m, with Molex-plugs
Description:

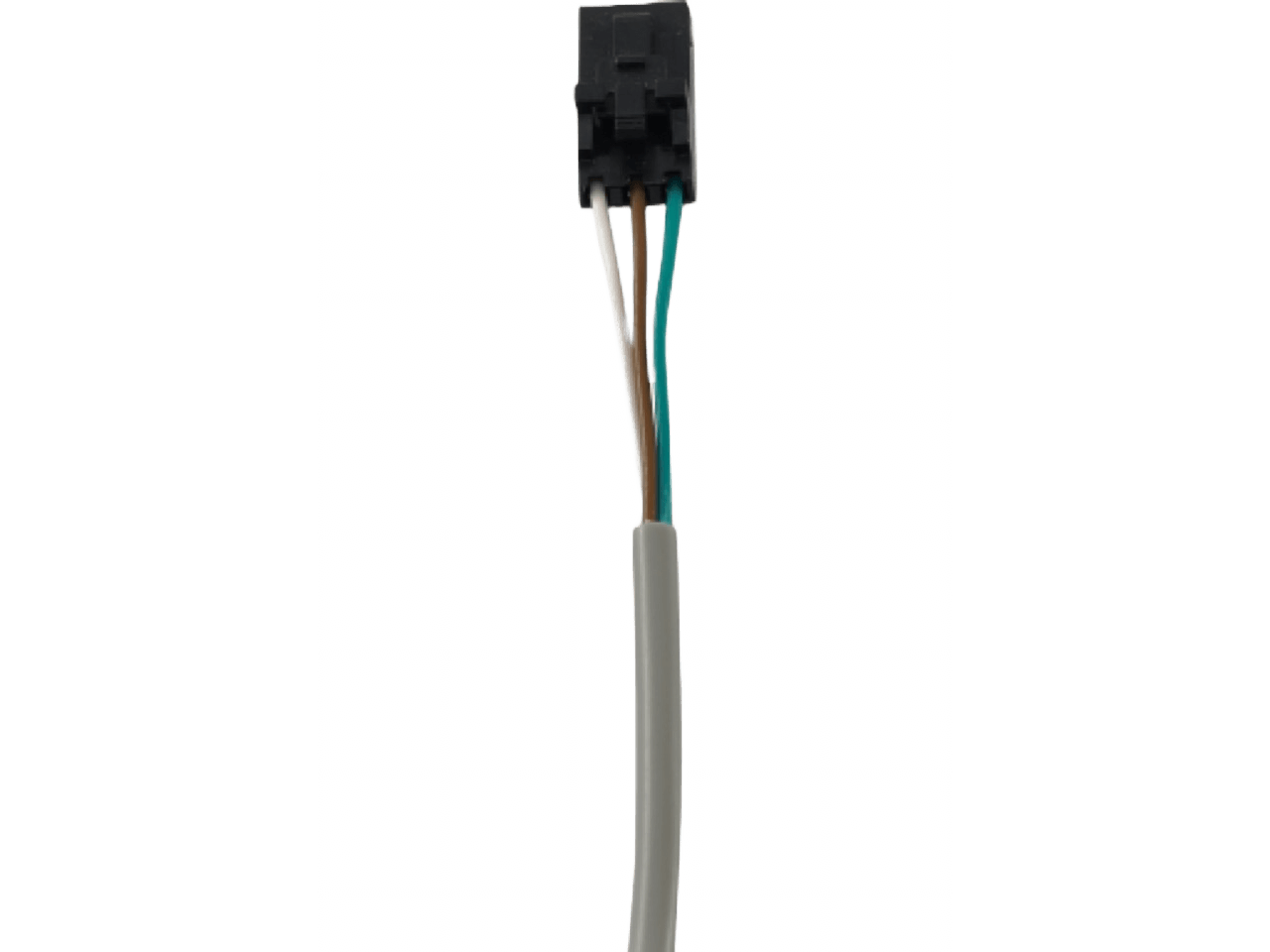

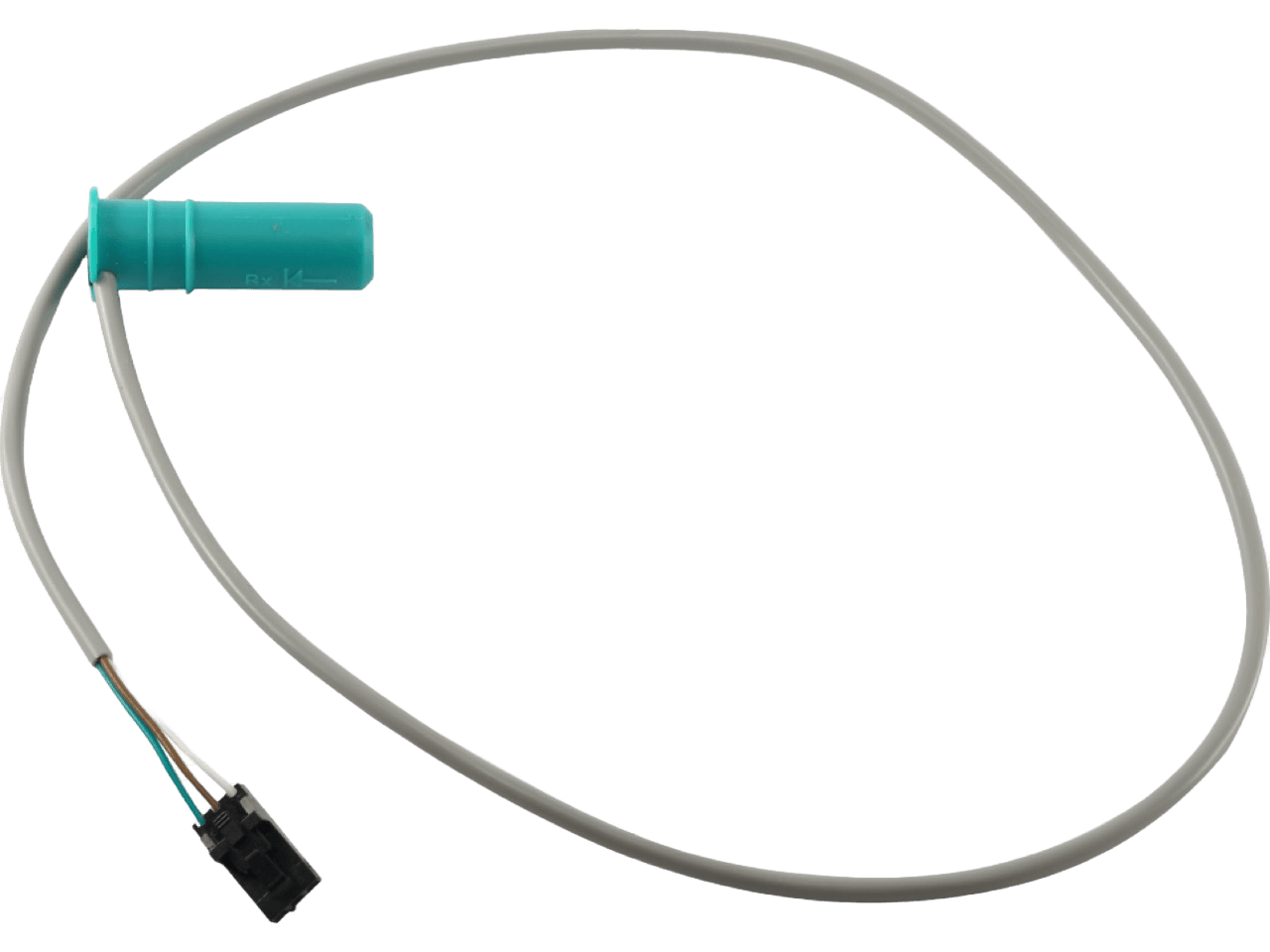

The FRABA VITECTOR OSE-S 6600 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 0.5 m and receiver - 0.5 m) and pre-assembled GfA plugs. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.
Warning:
The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.
| Additional Functions: | geeignet für Batteriesysteme |
|---|---|
| Cable Length: | 0.5 / 0.5 m |
| Connection Type: | GfA-Plug |
| Diameter: | 11 mm |
| Max. Operating Temperature: | +75 °C |
| Min. Operating Temperature: | -20 °C |
| Output: | OSE |
| Protection Class: | IP 68 |
| Range: | 10 m |
| Supply Voltage: | DC 4-28 V |
