FRABA VITECTOR OSE-S 6701 Optical Edge Sensors Transmitter Tx 6,5m/Receiver Rx 0,5m PVC-Cable Status-LED
€58.50
delivery time: 3-5 working days
Product information "FRABA VITECTOR OSE-S 6701 Optical Edge Sensors Transmitter Tx 6,5m/Receiver Rx 0,5m PVC-Cable Status-LED"

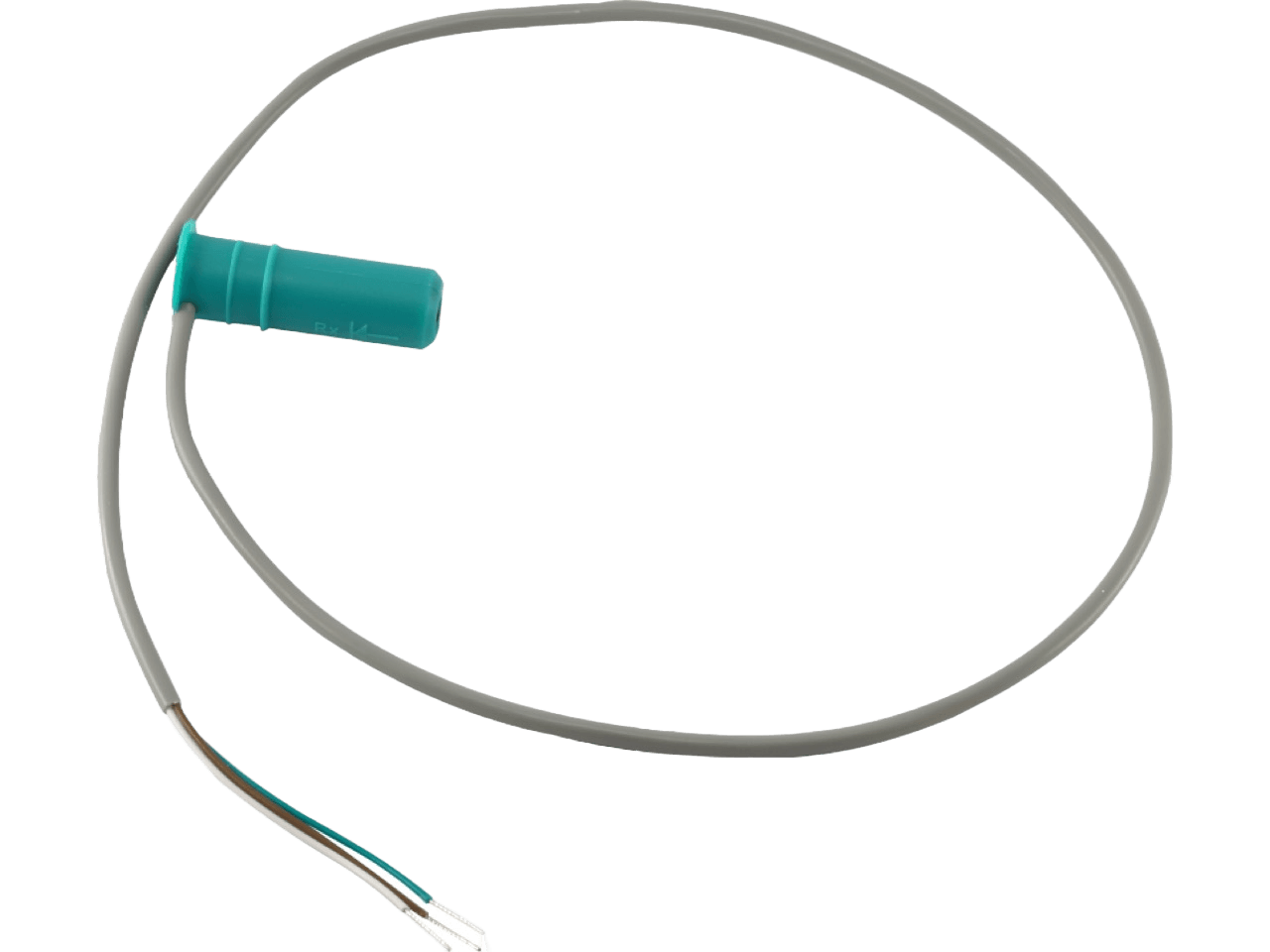

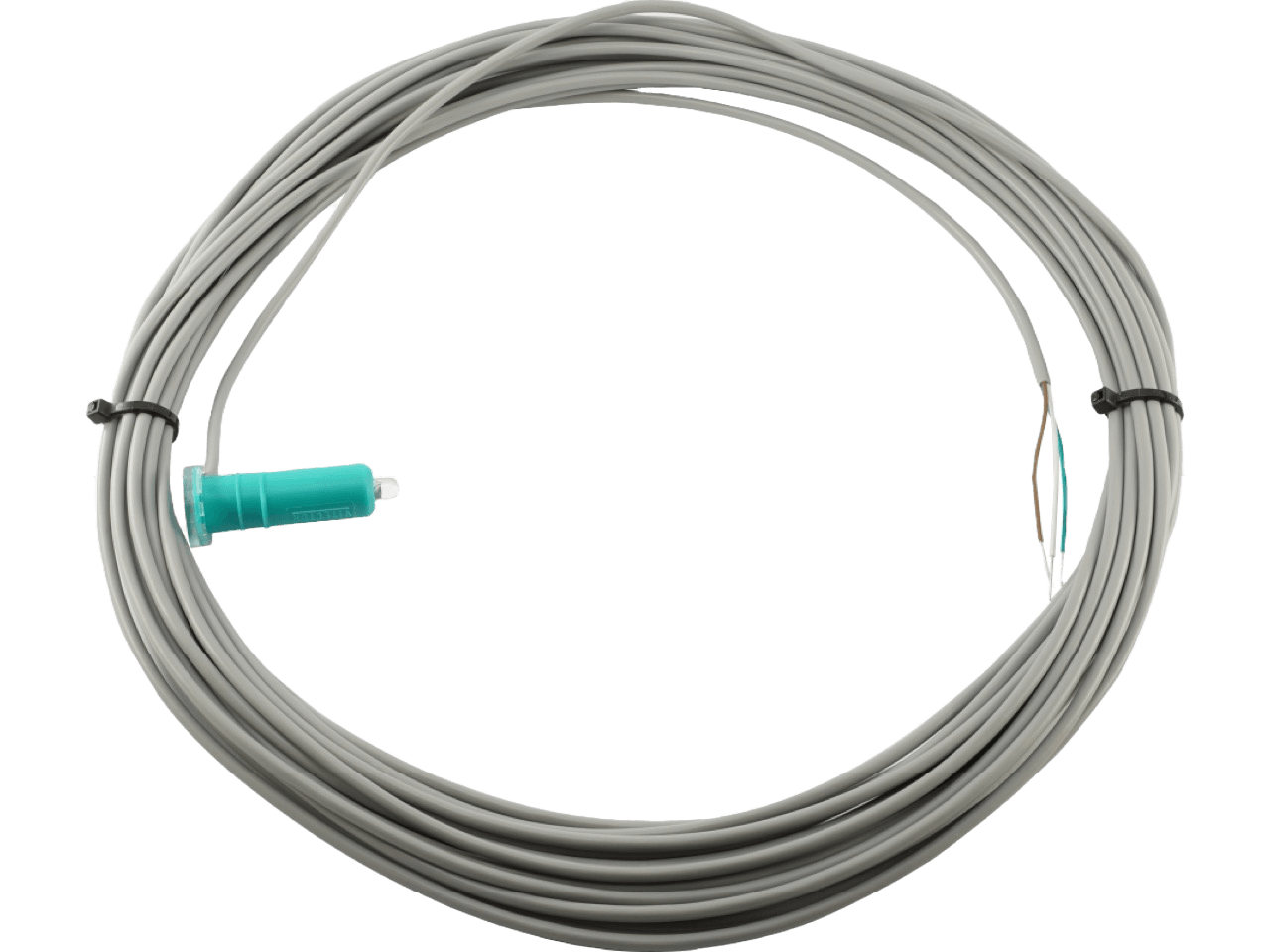

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, with Diagnose-LED, PVC-cable, cable length 6,5m/0,5m, without plugs
Description:
The FRABA VITECTOR OSE-S 6701 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 6.5 m and receiver - 0.5 m). Through an LED at the back of the transmitter, the operating status of the sensing edge is always clearly visible. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.
Warning:
The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.
| Additional Functions: | Status LED, geeignet für Batteriesysteme |
|---|---|
| Cable Length: | 6.5 / 0.5 m |
| Connection Type: | Cable, w/o plug |
| Diameter: | 11 mm |
| Max. Operating Temperature: | +75 °C |
| Min. Operating Temperature: | -20 °C |
| Output: | OSE |
| Protection Class: | IP 68 |
| Range: | 10 m |
| Supply Voltage: | DC 4-28 V |
