FRABA VITECTOR OSE-S 6800 Optical Edge Sensors Transmitter Tx 0,5m/Receiver Rx 0,5m PVC-Cable GfA-Plug Status-LED
€59.00
delivery time: 3-5 working days
Product information "FRABA VITECTOR OSE-S 6800 Optical Edge Sensors Transmitter Tx 0,5m/Receiver Rx 0,5m PVC-Cable GfA-Plug Status-LED"
Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, with Diagnose-LED, PVC-cable, cable length 0,5m/0,5m, with Molex-plugs
Description:

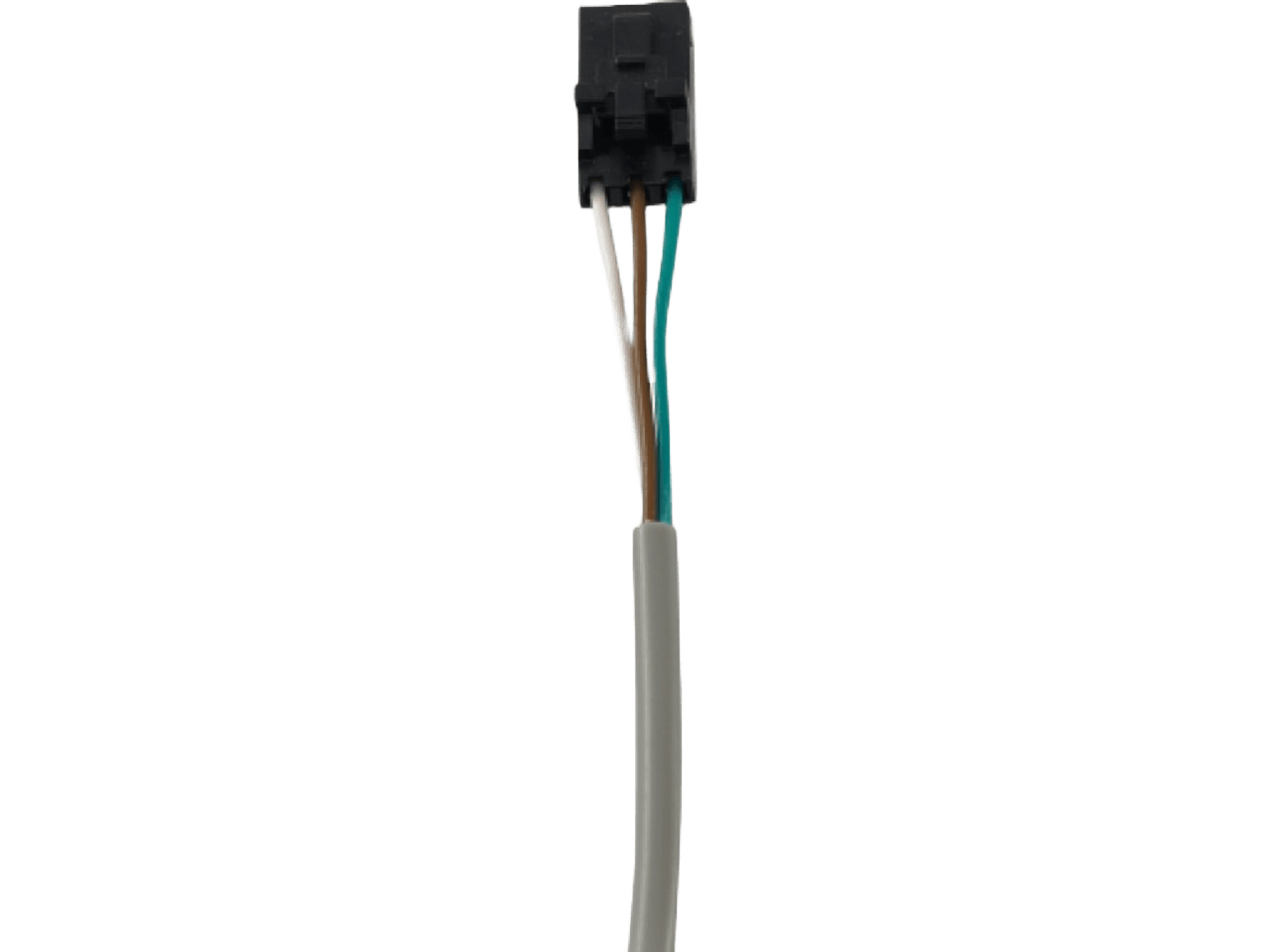

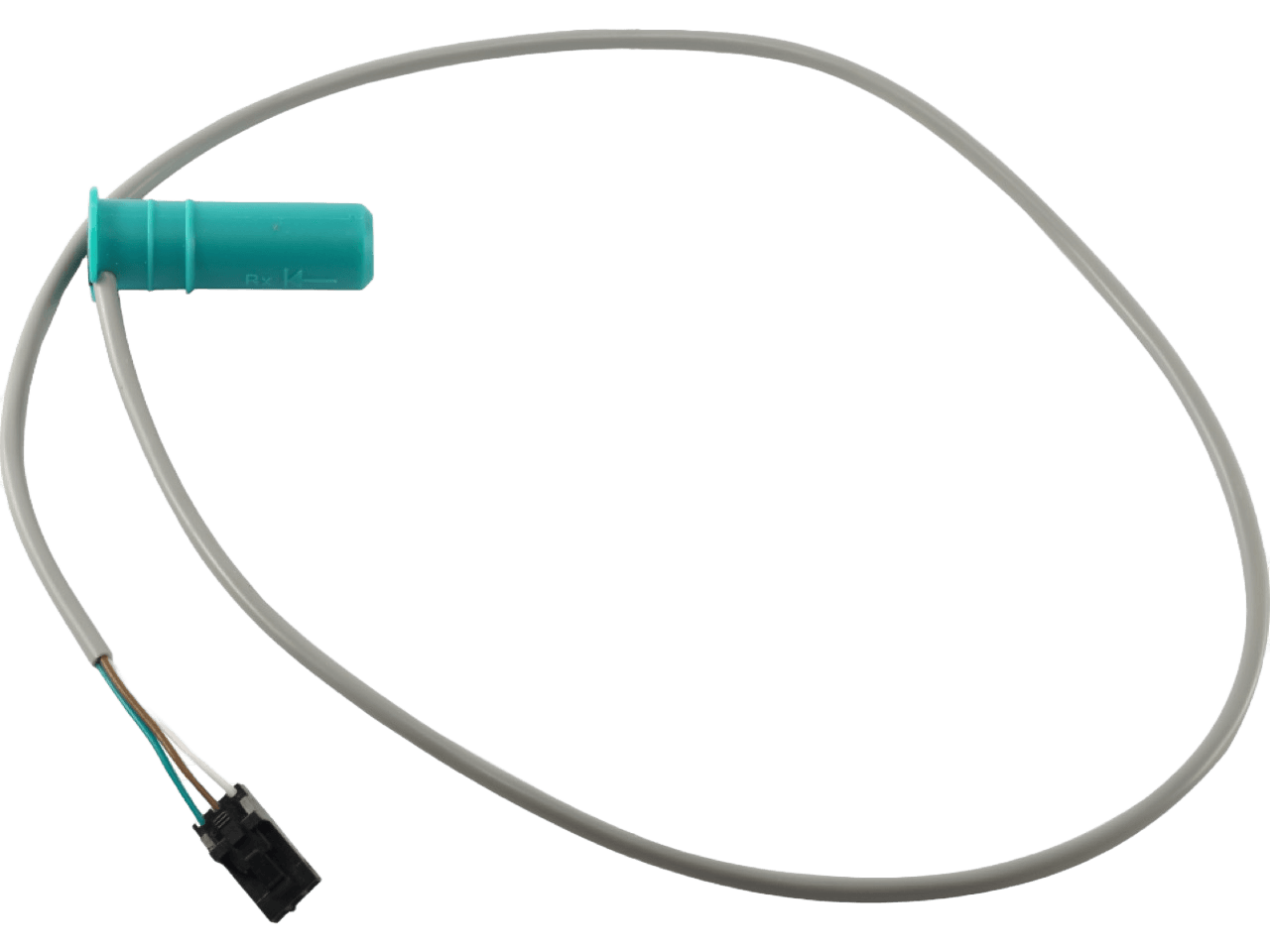

The FRABA VITECTOR OSE-S 6800 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 0.5 m and receiver - 0.5 m) and pre-assembled GfA plugs. Through an LED at the back of the transmitter, the operating status of the sensing edge is always clearly visible. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.
Warning:
The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.
| Additional Functions: | Status LED, geeignet für Batteriesysteme |
|---|---|
| Cable Length: | 0.5 / 0.5 m |
| Connection Type: | GfA-Plug |
| Diameter: | 11 mm |
| Max. Operating Temperature: | +75 °C |
| Min. Operating Temperature: | -20 °C |
| Output: | OSE |
| Protection Class: | IP 68 |
| Range: | 10 m |
| Supply Voltage: | DC 4-28 V |
Login
Accessories
straight mounting bracket for coil cords, with M16 bend protection gland
angled mounting bracket for coil cords, with M16 bend protection gland
Adapter sleeve for OSE sensors, ID12mm, OD15mm, for installation of sensors in rubber profiles with a 15mm chamber (eg. Hoermann SKS)
Adapter sleeve for OSE sensors, ID12mm, OD23mm, for installation of sensors in rubber profiles with a 22mm chamber
Modular bumper for optical sensing edges, 45 x 25 x 53 mm, screw M8 x 45 mm, material: PP
Bumper for optical sensing edges, 18 x 30 x 55 mm, Screw M8 x 40 mm, material: PP
Aluminium C-Profile, rail of 1,0m length

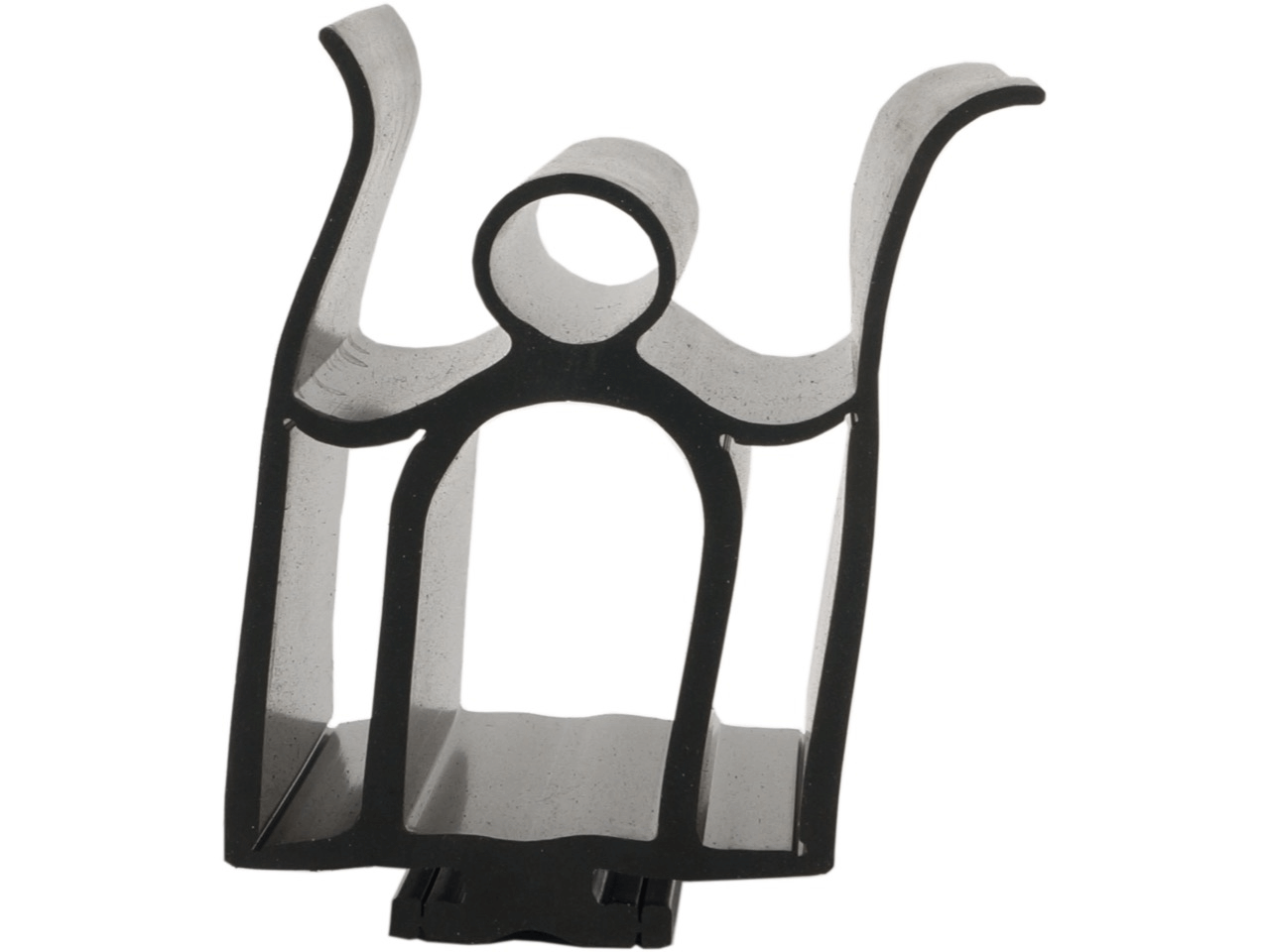

Rubber profile for optical sensing edges, coil of 25m, material EPDM
