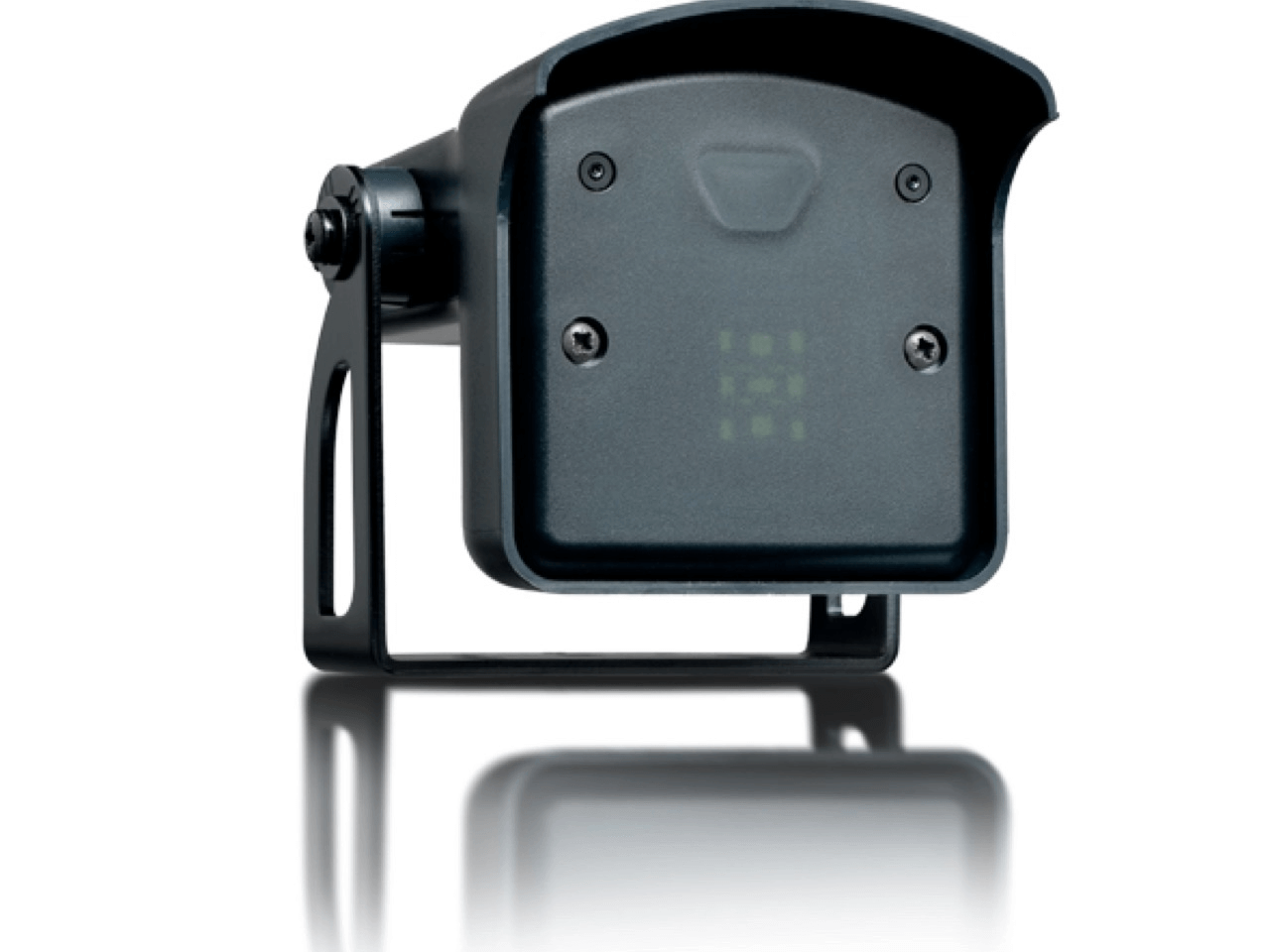

BEA FALCON Radar Motion-Sensor Installation Height 3,5-7,0m
€199.00
delivery time: 16 - 30 working days
Product information "BEA FALCON Radar Motion-Sensor Installation Height 3,5-7,0m"
Radar motion detector for opening and reversing of doors, unidirectional motion detection, adjustable via remote (separate accessory), IP65 rated, people and cross-traffic filter, 10m cable, installation height 3,5 - 7m
Description:
The BEA Falcon is a radar motion detector for use in automatic doors. The Falcon detects all movement in the monitored area and can filter people or cross-traffic movement if necessary. Concealing parallel traffic helps to minimise unnecessary opening of the doors. Mounted at a height of 7m, the BEA Falcon has a detection field of 4 x 5m.
Properties:
- Direction recognition helps to reduce the number of opening cycles, saving energy costs
- Filtering people to detect vehicles only
- Concealing cross-traffic to reduce the number of unwanted openings
- Simple installation and parameter setup via remote control (optional accessory)
| Cable Length: | 10.0 m |
|---|---|
| Connection Type: | Cable, w/o plug |
| Function: | Motion Detector |
| Material: | ABS/ PC |
| Max. Operating Temperature: | +60 °C |
| Min. Operating Temperature: | -30 °C |
| Output: | 1x Relay (NC/NO) |
| Protection Class: | IP 65 |
| Supply Voltage: | AC 12-24V, DC 12-24 V |
| max. Field Depth (Opening): | 7.0 m |
| max. Installation Height: | 7.0 m |
| max. Switching Current: | 1 A |
| min. Installation Height: | 3.5 m |
