BEA IXIO-DT3 BLACK Motion-Detector Presence-Sensor Installation Height 3,5m max
€199.00
delivery time: 3-5 working days
Product information "BEA IXIO-DT3 BLACK Motion-Detector Presence-Sensor Installation Height 3,5m max"
Dual-Technology sensor for opening/ reversing doors and for presence detection, radar motion detector and active-IR-presence detector in one product, 2 IR-curtains (2 x 24 Active IR spots) to monitor an area in front of the door, adjustable via LCD-Display or remote (separate accessory), 10m cable, max. installation height 3,5m
Description:
The IXIO-DT3 combines radar technology to open with infrared technology for the protection of automatic linear sliding doors and telescoping / revolving doors. It can be used both for escape routes and emergency exits, as well as for standard doors.
- Unidirectional - lowers the duration of the opening cycle because it masks cross-traffic movement

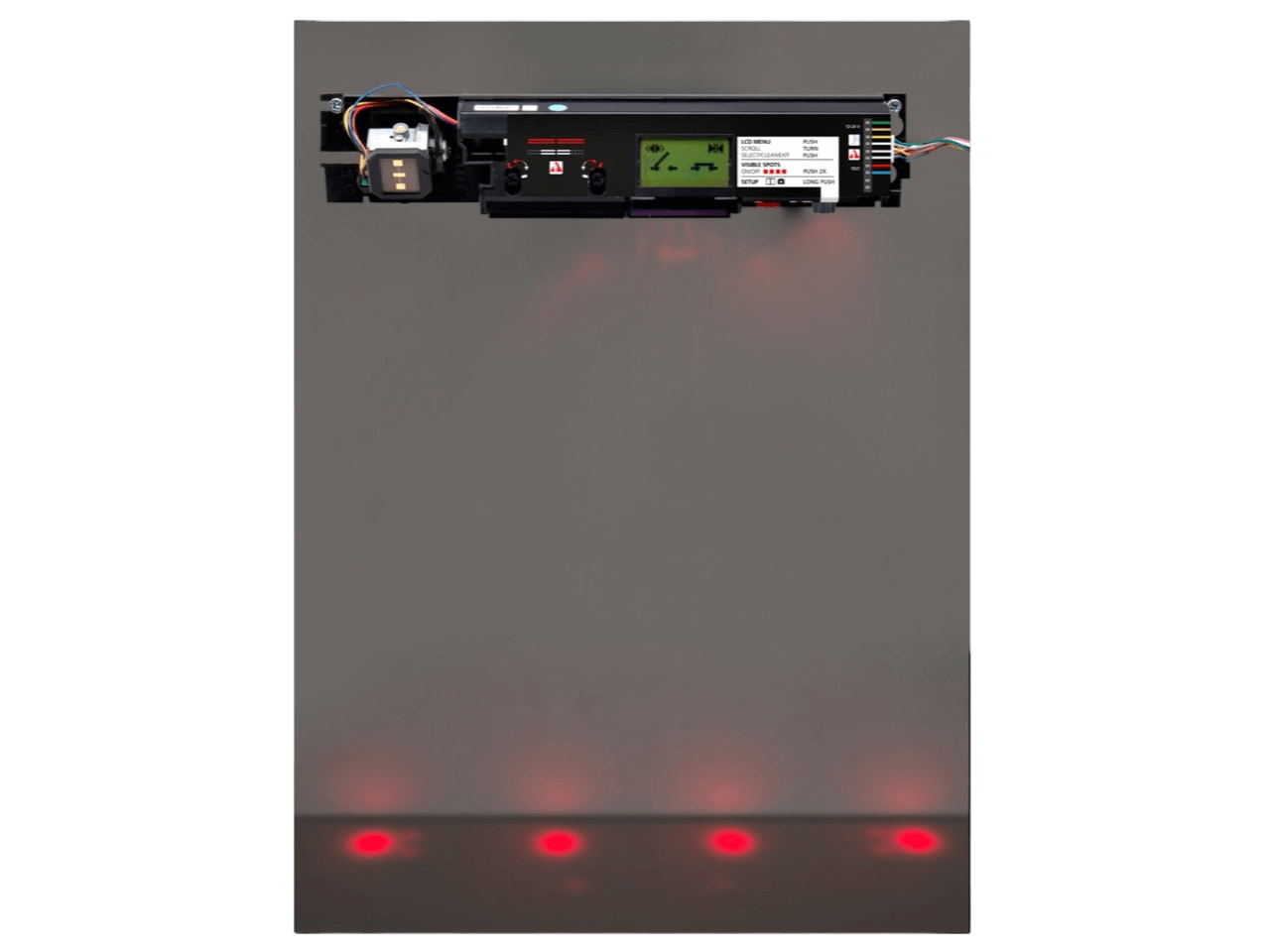

- 48 infrared spots distributed over 2 curtains avoid anyone coming into contact with the door

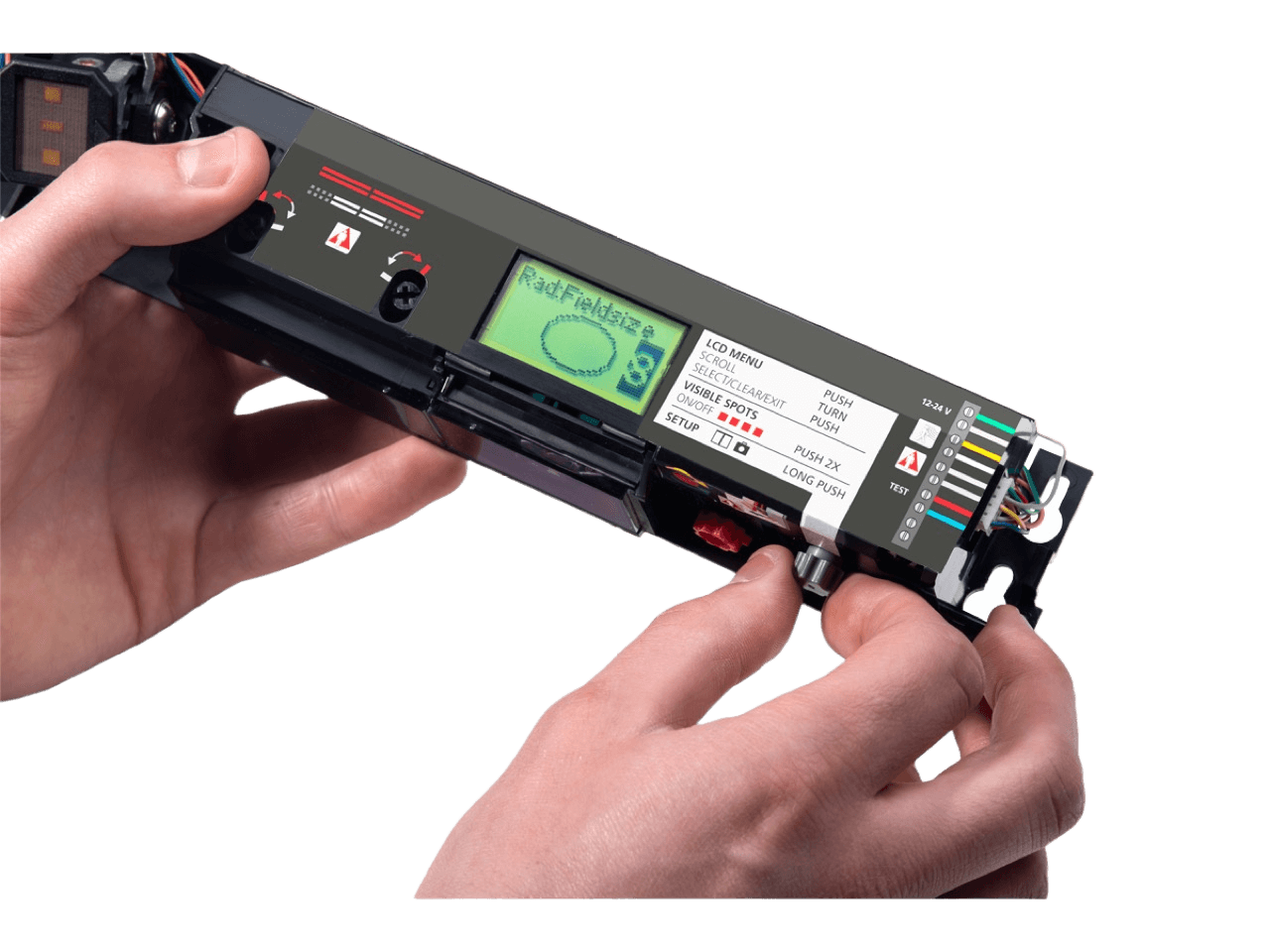

- Intuitive settings on an LCD screen
- Conforms to EN16005/ DIN18650
- ESPE Type 2 conforms to IEC61496-1:2012 and PL c/ Cat. 2 conforms to EN ISO 13849-1:2008
| Cable Length: | 2.5 m |
|---|---|
| Connection Type: | Cable, w/o plug |
| Function: | Motion Detector, Presence Detector |
| Material: | ABS/ LURAN S |
| Max. Operating Temperature: | +55 °C |
| Min. Operating Temperature: | -25 °C |
| Output: | 2x Relay (NC/NO) |
| Protection Class: | IP 54 |
| Supply Voltage: | AC 12-24 V, DC 12-30 V |
| max. Field Depth (Opening): | 3.0 m |
| max. Field Depth (Presence): | 0.6 m |
| max. Installation Height: | 3.5 m |
| max. Switching Current: | 1 A |
| min. Installation Height: | 2.0 m |
