BEA LZR®-I100 BLACK 3D Laser-Scanner Protection/Opening Doors 9,9x9,9m

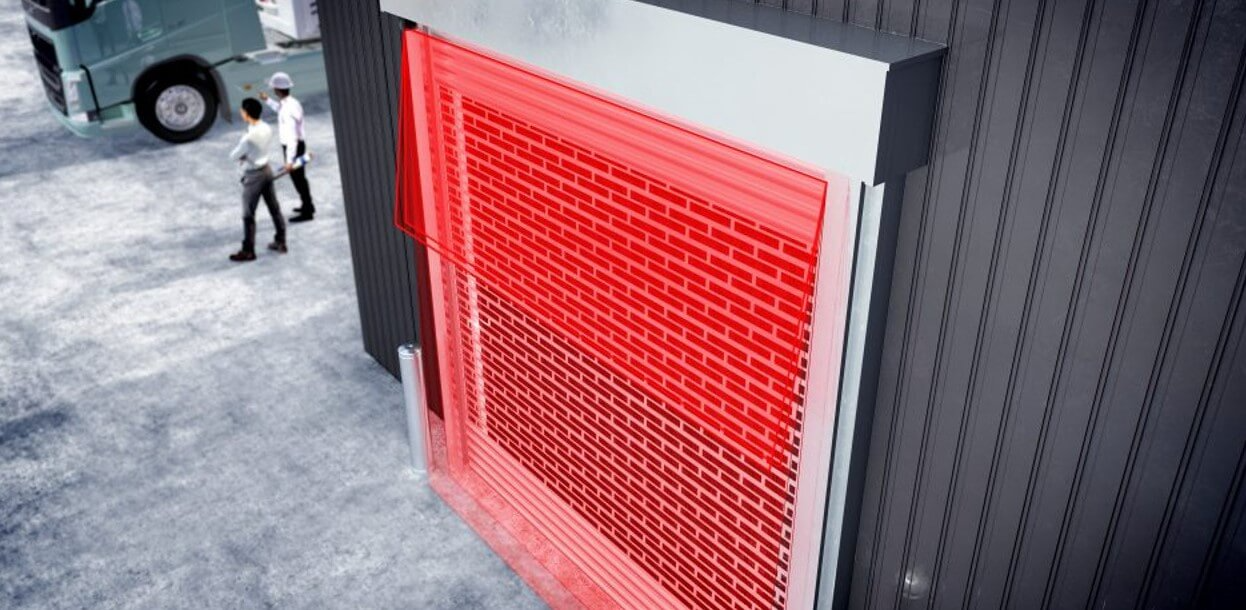

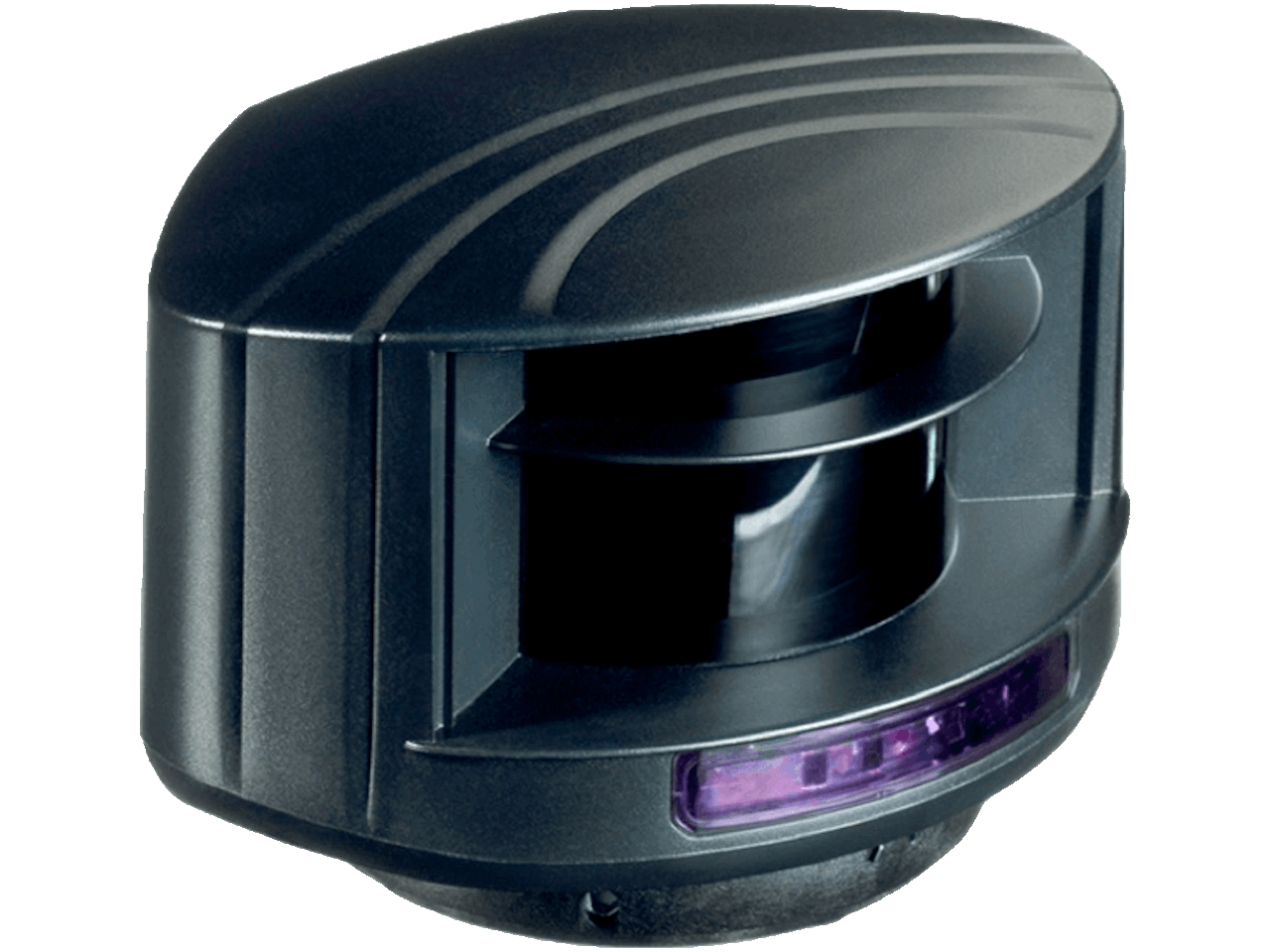

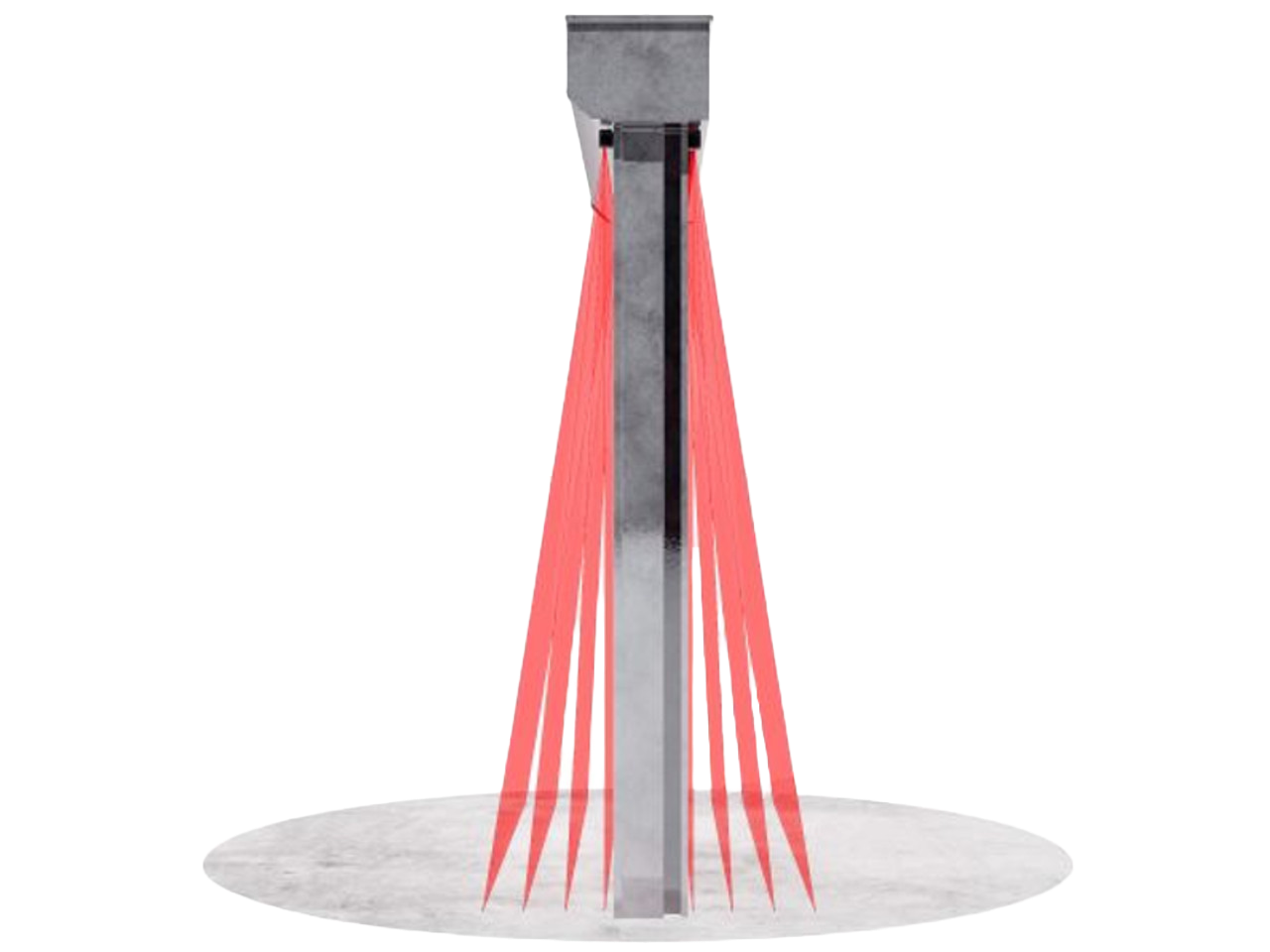

Set of Laser Scanner with protective cover, scanner for presence detection on doors or barrier arms: complete coverage over 4 planes (16560 measurements per second), adjustable via remote control (separate accessory), IP65 rated, 2 output signals, dynamic teach-in, max. range 9,9m x 9,9m, can fulfil requirements of a type-E device according to EN 12453, PL "d"Description:The BEA LZR®-I100 is a sensor for monitoring the closing plane of the door and is certified as a type E device with presence detection according to the EN12453 certification. The sensor functions on time-of-flight technology which enables precise recognition of even the smallest object. The LZR generates laser beams in 4 detection planes to monitor both the closing plane of the door and the area in front it. BEA designed the LZR I100 for industrial environments and can also ensure larger industrial doors are secured thanks to its detection field of up to 9.9m x 9.9m. Together with the BEA LZR laser scanner protective cover, the set is ideally suited for first installations or for retrofitting on existing barrier systems. The scanner is secured in the protective cover and can be easily installed.Details of the LZR-I100:Maximum range 9.9m x 9.9mDepending on the installation height, monitors up to 1m upon approach of the doorEN ISO 13849-1 PL d/CAT 2 and EN 12453 type E certifiedContactless protection of industrial doorsEasy setup and retrofitting of existing facilitiesProtection upon approach and departure (roll-up safety)Up to 2 virtual pushbuttons for opening doorsFilters external interference (door vibrations, snow, rain...)IP 65 protection classThrough the separate use of a universal remote control, it is possible to set up and adjust the sensors from the ground.Details of the protective cover for the BEA LZR laser scanner:The protective cover for the BEA LZR Laser scanner was developed as an accessory for the BEA LZR sensor range. The protective cover is made of a 2.5mm-thick Aluminium sheet and is used protect the sensor and to make its installation inconspicuous. Thanks to its pure white powder coating, similar to RAL9010, the protective cover can fit in with any installation environment. Other RAL colours are also available upon request. The protective cover can be mounted either on the appropriate mounting holes on masonry, barrier housing, etc... or with the help of a mounting bracket, sold separately. The LZR Sensor does not come with the cover and must be ordered separately.Compatible with BEA LZR H-100, LZR-i100 and LZR-i110Powder coating in pure white, similar to RAL9010Anticorrosive thanks to aluminium sheetVersatile installation options

Laser Scanner for presence detection on doors: complete coverage over 4 planes (16560 measurements per second), adjustable via remote control (separate accessory), IP65 rated, 2 output signals, dynamic teach-in, max. range 5m x 5m, can fulfil requirements of a type-E device according to EN 12453, PL "d"Description:The BEA LZR®-I110 is a sensor for monitoring the closing plane of the door and is certified as a type E device with presence detection according to EN12453 certification. The sensor functions on time-of-flight technology which enables precise recognition of even the smallest object. The LZR generates laser beams in 4 detection planes to monitor both the closing plane of the door and the area in front it. BEA designed the LZR I110 for industrial environments and can also ensure larger industrial doors are secured thanks to its detection field of up to 5.0m x 5.0m.Properties:Maximum range 5.0m x 5.0mDepending on the installation height, monitors up to 1m upon approach of the doorEN ISO 13849-1 PL d/CAT 2 and EN 12453 type E certified.Contactless protection of industrial doorsEasy setup and retrofitting of existing facilitiesProtection upon approach and departure (roll-up safety)Up to 2 virtual pushbuttons for opening doorsFilters external interferences (door vibrations, snow, rain...)IP 65 protection classThrough the separate use of a universal remote control, it is possible to set up and adjust the sensors from the ground.

Protection cap for BEA LZR laser-scanner, types LZR-H100, LZR-i100 and LZR-i110, material: aluminium 2,5mm thick, non-coated - Scanner is not included!Description:The Protection Cap for BEA LZR Scanners was developed as an accessory for the BEA LZR sensor series. The protective cover made of 2.5mm thick aluminium sheet is used for protected and unobtrusive installation of the sensor. The protective cap can be mounted either through the appropriate mounting holes on masonry, barrier housing, etc. or with the help of the optional mounting bracket. The mounting material for installing the LZR sensor in the protection cap is included. The LZR sensor is not included and must be ordered separately.Compatible with BEA LZR-H100, LZR-i100 and LZR-i110Corrosion resistant by using aluminium sheetFlexible mounting options

Protection cap for BEA LZR laser-scanner, types LZR-H100, LZR-i100 and LZR-i110, material: aluminium 2,5mm thick, powder-coated RAL9005 - Scanner is not included!Description:The Protection Cap for BEA LZR Scanners was developed as an accessory for the BEA LZR sensor series. The protective cover made of 2.5mm thick aluminium sheet is used for protected and unobtrusive installation of the sensor. Due to the powder coating in black, similar to RAL9005, the protective cap fits well in different installation environments. Other RAL colours can be offered on request. The protective cap can be mounted either through the appropriate mounting holes on masonry, barrier housing, etc. or with the help of the optional mounting bracket. The mounting material for installing the LZR sensor in the protection cap is included. The LZR sensor is not included and must be ordered separately.Compatible with BEA LZR-H100, LZR-i100 and LZR-i110Powder coated in black, similar to RAL9005Corrosion resistant by using aluminium sheetFlexible mounting options

Set of Laser Scanner with protective cover, scanner for presence detection on doors or barrier arms: complete coverage over 4 planes (16560 measurements per second), adjustable via remote control (separate accessory), IP65 rated, 2 output signals, dynamic teach-in, max. range 9,9m x 9,9m, can fulfil requirements of a type-E device according to EN 12453, PL "d"Description:The BEA LZR®-I100 is a sensor for monitoring the closing plane of the door and is certified as a type E device with presence detection according to the EN12453 certification. The sensor functions on time-of-flight technology which enables precise recognition of even the smallest object. The LZR generates laser beams in 4 detection planes to monitor both the closing plane of the door and the area in front it. BEA designed the LZR I100 for industrial environments and can also ensure larger industrial doors are secured thanks to its detection field of up to 9.9m x 9.9m. Together with the BEA LZR laser scanner protective cover, the set is ideally suited for first installations or for retrofitting on existing barrier systems. The scanner is secured in the protective cover and can be easily installed.Details of the LZR-I100:Maximum range 9.9m x 9.9mDepending on the installation height, monitors up to 1m upon approach of the doorEN ISO 13849-1 PL d/CAT 2 and EN 12453 type E certifiedContactless protection of industrial doorsEasy setup and retrofitting of existing facilitiesProtection upon approach and departure (roll-up safety)Up to 2 virtual pushbuttons for opening doorsFilters external interference (door vibrations, snow, rain...)IP 65 protection classThrough the separate use of a universal remote control, it is possible to set up and adjust the sensors from the ground.Details of the protective cover for the BEA LZR laser scanner:The protective cover for the BEA LZR Laser scanner was developed as an accessory for the BEA LZR sensor range. The protective cover is made of a 2.5mm-thick Aluminium sheet and is used protect the sensor and to make its installation inconspicuous. Thanks to its pure white powder coating, similar to RAL9010, the protective cover can fit in with any installation environment. Other RAL colours are also available upon request. The protective cover can be mounted either on the appropriate mounting holes on masonry, barrier housing, etc... or with the help of a mounting bracket, sold separately. The LZR Sensor does not come with the cover and must be ordered separately.Compatible with BEA LZR H-100, LZR-i100 and LZR-i110Powder coating in pure white, similar to RAL9010Anticorrosive thanks to aluminium sheetVersatile installation options

Protection cap for BEA LZR laser-scanner, types LZR-H100, LZR-i100 and LZR-i110, material: aluminium 2,5mm thick, powder-coated RAL7031 - Scanner is not included!Description:The Protection Cap for BEA LZR Scanners was developed as an accessory for the BEA LZR sensor series. The protective cover made of 2.5mm thick aluminium sheet is used for protected and unobtrusive installation of the sensor. Due to the powder coating in grey, similar to RAL7031, the protective cap fits well in different installation environments. Other RAL colours can be offered on request. The protective cap can be mounted either through the appropriate mounting holes on masonry, barrier housing, etc. or with the help of the optional mounting bracket. The mounting material for installing the LZR sensor in the protection cap is included. The LZR sensor is not included and must be ordered separately.Compatible with BEA LZR-H100, LZR-i100 and LZR-i110Powder coated in grey, similar to RAL7031Corrosion resistant by using aluminium sheetFlexible mounting options

Mounting bracket for BEA LZR-series

Protection cap for BEA LZR laser-scanner, types LZR-H100, LZR-i100 and LZR-i110, material: aluminium 2,5mm thick, powder-coated RAL9010 - Scanner is not included!Description:The Protection Cap for BEA LZR Scanners was developed as an accessory for the BEA LZR sensor series. The protective cover made of 2.5mm thick aluminium sheet is used for protected and unobtrusive installation of the sensor. Due to the powder coating in pure white, similar to RAL9010, the protective cap fits well in different installation environments. Other RAL colours can be offered on request. The protective cap can be mounted either through the appropriate mounting holes on masonry, barrier housing, etc. or with the help of the optional mounting bracket. The mounting material for installing the LZR sensor in the protection cap is included. The LZR sensor is not included and must be ordered separately.Compatible with BEA LZR-H100, LZR-i100 and LZR-i110Powder coated in pure white, similar to RAL9010Corrosion resistant by using aluminium sheetFlexible mounting options

Universal remote for BEA sensors (BEA Falcon, BEA Condor, BEA LZR)
