FRABA VITECTOR OSE-C 2300 Control Unit OSE 230V AC
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "FRABA VITECTOR OSE-C 2300 Control Unit OSE 230V AC"
Control unit for optical sensing edges OSE, relay output (stop and reverse), monitors up to 2 sensing edges, supply voltage 230 V AC, rated Cat. 3 PL c (EN 13849-1)
Description:

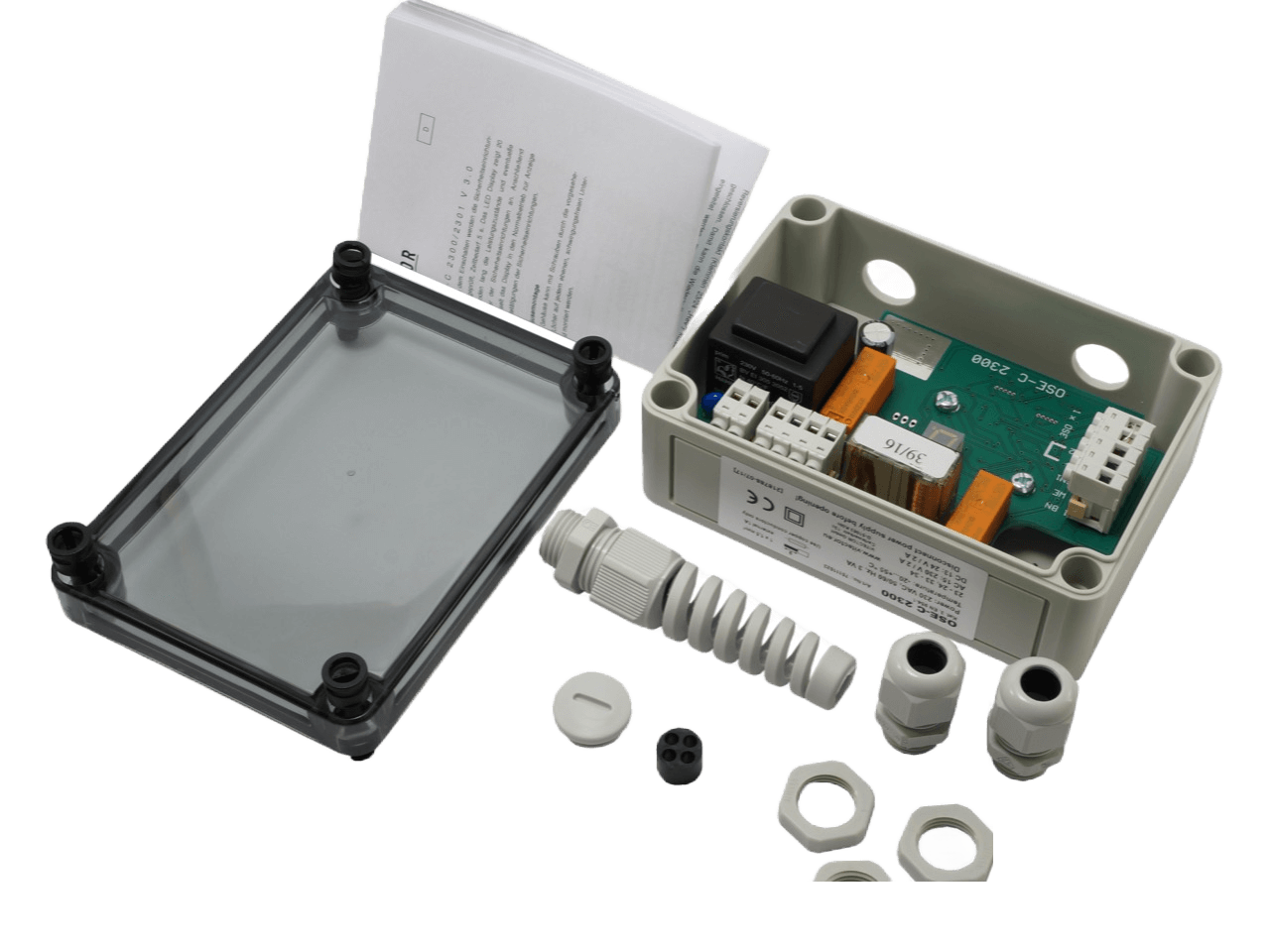

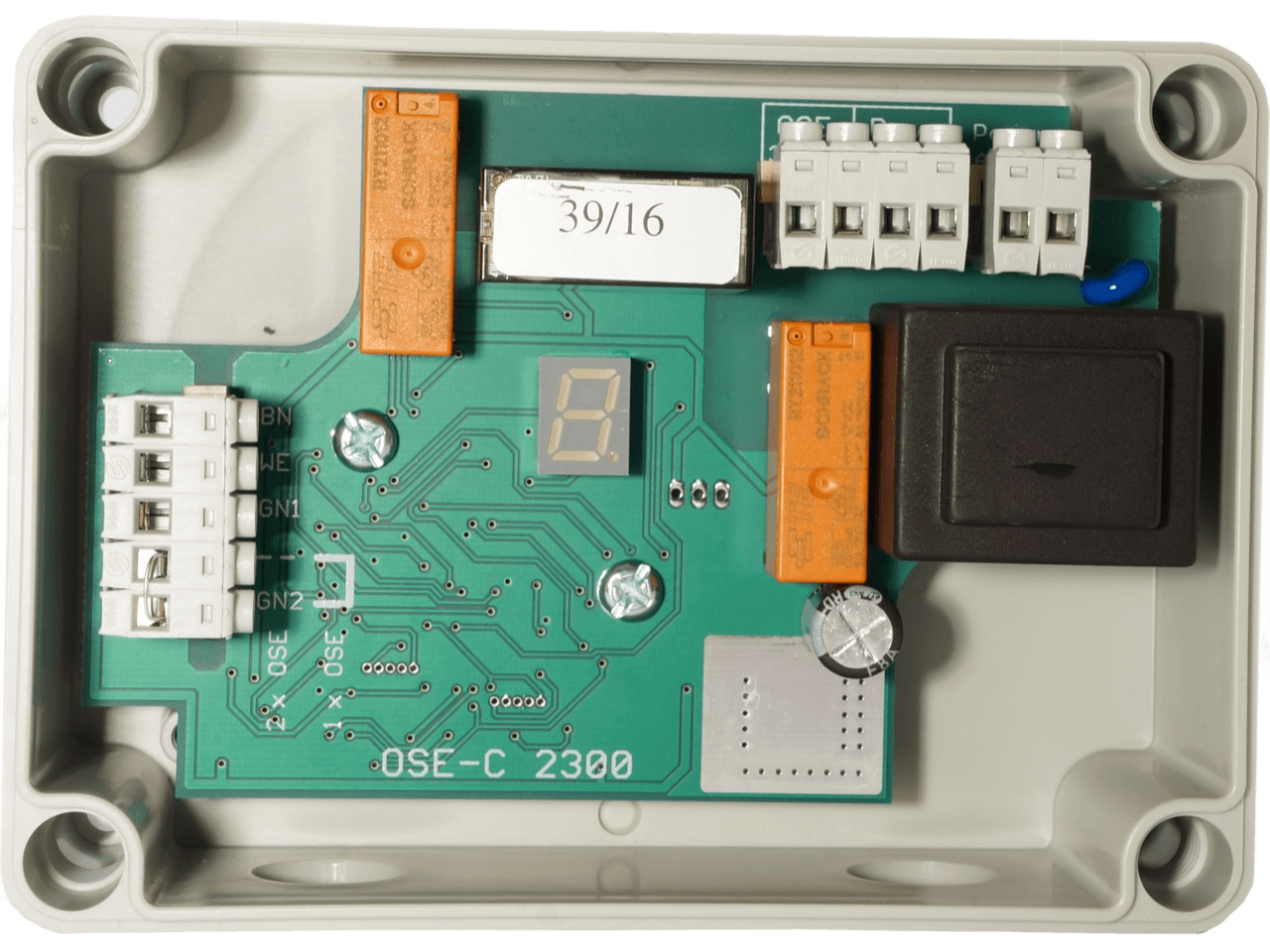

The FRABA VITECTOR OSE-C 2300 is a control unit for optical sensing edges on doors. The control unit can monitor and evaluate up to two optical sensing edges type (FRABA VITECTOR OSE) or two pull-in protection devices (type FRABA VITECTOR RAYTECTOR). Thereby, the security signal of the sensors can be converted via the evaluation of the OSE-C 2300 into a potential-free NC relay contact. As well as the safety output, the OSE-C2300 also delivers a NO relay contact which e.g. can be used to reverse the door when operating the safety edge.
- Several relay outputs (stop and reverse)
- Monitors up to 2 OSE sensing edges or pull-in protection devices
- Housing unit protection class: IP65
- Supply voltage: 230V AC
- Safety category: Cat.3 PL according to EN13849-1
| Additional Functions: | Reversierausgang (Schließer) |
|---|---|
| Housing: | Surface Mount |
| Input: | 2x OSE |
| Material: | PC |
| Max. Operating Temperature: | +55 °C |
| Min. Operating Temperature: | -20 °C |
| No. Of Channels: | 2 |
| Output: | 1x Relay (NC) |
| Protection Class: | IP 65 |
| Supply Voltage: | 1N~230 V |
| max. Switching Current: | 4 A |
