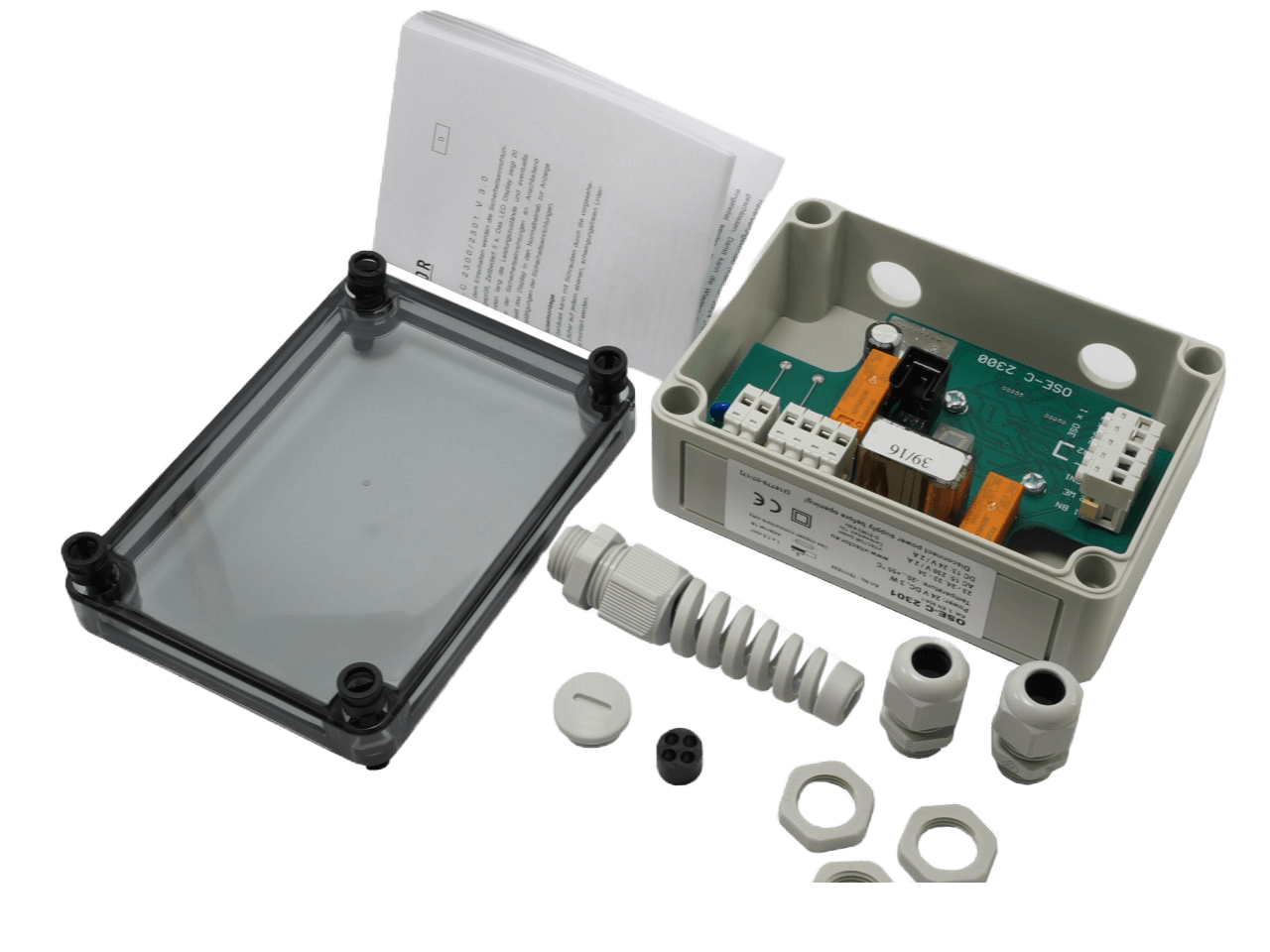

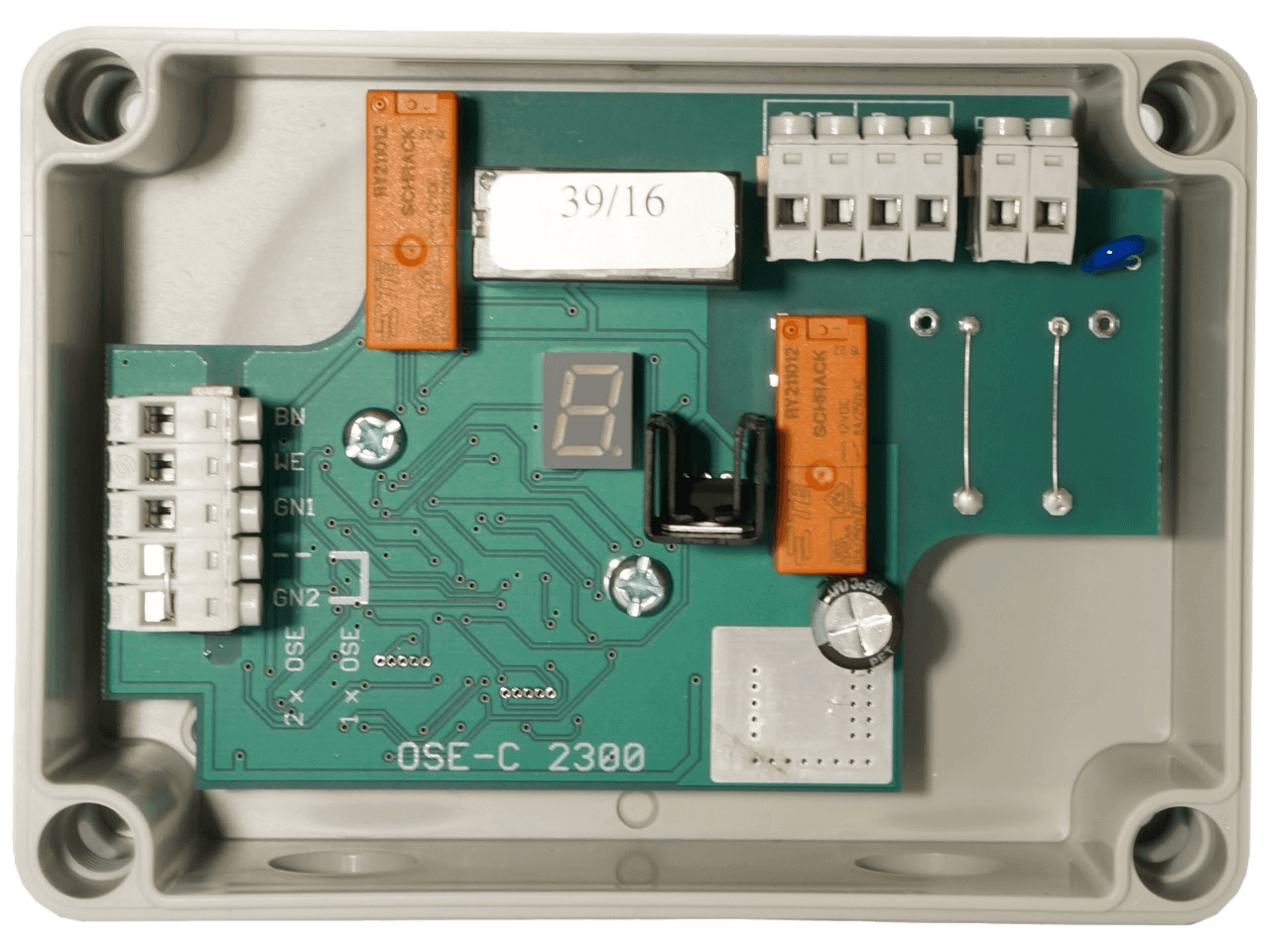

FRABA VITECTOR OSE-C 2301 Control Unit OSE 24V DC

straight mounting bracket for coil cords, with M16 bend protection gland

angled mounting bracket for coil cords, with M16 bend protection gland

Adapter sleeve for OSE sensors, ID12mm, OD15mm, for installation of sensors in rubber profiles with a 15mm chamber (eg. Hoermann SKS)

Adapter sleeve for OSE sensors, ID12mm, OD23mm, for installation of sensors in rubber profiles with a 22mm chamber

Modular bumper for optical sensing edges, 45 x 25 x 53 mm, screw M8 x 45 mm, material: PP

Bumper for optical sensing edges, 18 x 30 x 55 mm, Screw M8 x 40 mm, material: PP

Aluminium C-Profile, rail of 1,0m length

Rubber profile for optical sensing edges, coil of 25m, material EPDM

Rubber profile for optical sensing edges, coil of 30m, material EPDM

Coil cord for doors, EstTPU/PP, black, cable configuration: fine-stranded 5x0,25mm²,  Lif9Y11Y, dimensions: left end = 300mm, coil length = 900mm, right end = 2000mm, max. extension length 3,5m   Description: The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf. Properties: Due to the 800mm-long spiral block, the coil cable can be extended to a length of up to 3.5m. The 5-core cable installation and a 0.25mm² conductor cross-section means the helical cable has enough strands for e.g. the safety edge and slack-rope switches Sheath and core insulation made of high-grade materials Can be installed universally on doors from various manufacturers

Coil cord for doors, black, cable configuration: fine-stranded 4x0,25mm², Lif9Y11Y, PP/ TPU Ether, dimensions: left end = 350mm, coil length = 900mm, right end = 2000mm, max. extension length 3,5mDescription:The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.Properties:Due to the 900mm-long spiral block, the coil cable can be extended to a length of up to 3.5mThe 4-core cable installation and a 0.25mm² conductor cross-section means the coil cord has enough strands for e.g. the safety edge and slack-rope switches.Can be installed universally on doors from various manufacturers

Coil cord for doors, PUR/ PUR, black, cable configuration: fine-stranded 3x0,25mm², Li11Y11Y, dimensions: left end = 90mm, coil length = 620mm, right end = 500mm, max. extension length 2,5mDescription:The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf.Properties:Due to the 620mm-long spiral block, the coil cable can be extended to a length of up to 2.5m.The 3-core cable installation and a 0.25mm² conductor cross-section enables the signal of the optical sensing edge to be transmitted to the door control unit.Sheath and core insulation made of high-grade Polyurethane (PUR)Can be installed universally on doors from various manufacturers

Electrical box with status LED, 90 x 48,5 x 40mm, with 1x M16 cable gland, 1x blind plug and 1x M16 cable gland with bend protectionDescription:The Fraba Vitector small junction box is distinguished by its compact design. The connection circuit board ensures the cables can be easily connected to the door.Further characteristics:90 x 48,5 x 40mm1 x M16 open in the ground1 x pre-shaped for the ground1 x M16 open in the lidIncludes 1 x M16 cable gland, 1 blind plug, and 1 M16 with bend protection

Electrical box with status LED, 40 x 136 x 56 mm, incl. 3x M16 cable glands, 1x M16 cable gland with bend protection and 4x M16 lock nutDescription:The Fraba Vitector large junction box is useful wherever lots of space is needed for cabling from sensors, photo-eye switches, pass-door switches, slack-rope switches, etc. The connection circuit board ensures the cables can be easily connected to the door.Further characteristics:Dimensions: 40 x 136 x 56 mmTransparent coverPre-punched cable entries 5xM16 in the housing, 1xM16 in the lidIncludes 3xM16 cable glands, 1x bend protector and 4 x locknuts

electrical box, 40 x 136 x 56 mm, incl. 3x M16 cable glands, 1x M16 cable gland with bend protection and 4x M16 lock nutDescription:The Fraba Vitector large junction box is useful wherever lots of space is needed for cabling from sensors, photo-eye switches, pass-door switches, slack-rope switches, etc.Further characteristics:Dimensions: 40 x 136 x 56 mmGrey coverPre-punched cable entries 5xM16 in the housing, 1xM16 in the lidIncludes 3xM16 cable glands, 1x bend protector and 4 x locknuts

Electrical box, 90 x 48,5 x 40mm, with 1x M16 cable gland, 1x blind plug and 1x M16 cable gland with bend protectionDescription:The Fraba Vitector small junction box is distinguished by its compact design.Further characteristics:90 x 48,5 x 40mm1 x M16 open in the ground1 x pre-shaped for the ground1 x M16 open in the lidIncludes 1 x M16 cable gland, 1 blind plug, and 1 M16 with bend protection and terminal strip

Electrical box, 75 x 40 x 13 mm, cable gland with bend protection for coil cord, cable gland for sensor cables, with status LEDDescription:The Fraba Vitector extra flat junction box is optimally suited for roller shutters due to its slim design.Properties:Dimensions 75 x 40 x 13 mmCable entry with bend protection for coil cordDouble cable entry for sensor cablesPre-shaped for the floorIncludes diagnostic terminal block 2x3-pol

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, with Diagnose-LED, PVC-cable, cable length 6,5m/0,5m, without plugsDescription:The FRABA VITECTOR OSE-S 6701 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 6.5 m and receiver - 0.5 m). Through an LED at the back of the transmitter, the operating status of the sensing edge is always clearly visible. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.Warning:The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, PVC-cable, cable length 6,5m/0,5m, without plugsDescription:The FRABA VITECTOR OSE-S 6501 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 6.5 m and receiver - 0.5m). The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.Warning:The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, with Diagnose-LED, PVC-cable, cable length 10,5m/0,5m, without plugsDescription:The FRABA VITECTOR OSE-S 6702 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 10.5 m and receiver - 0.5 m). Through an LED at the back of the transmitter, the operating status of the sensing edge is always clearly visible. The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.Warning:The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, PVC-cable, cable length 10,5m/0,5m, without plugsDescription:The FRABA VITECTOR OSE-S 6502 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 10.5 m and receiver - 0.5m). The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.Warning:The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, PUR-cable, cable length 10,5m/3,0m, without plugsDescription:The FRABA VITECTOR OSE-S1100 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. The sensors are equipped with a top quality PUR Cable (length: transmitter - 10.5 m and receiver - 3.0m). For an electrical connection, the sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.Warning:The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

Pull-in protection for doors, set includes: 1x IR transmitter, 1x receiver with 10,5m cable each, mounting brackets and screwsDescription:The safety light barrier RAYTECTOR from FRABA Vitector can be used in rolling grill doors as pull-in protection. The light barrier is constructed in such a way that it will reliably detect when there is interference by outside light, whenever a light beam is broken, or when an electrical component fails (including the connection to the monitoring unit). A two-coloured LED shows the various operating modes clearly on the front part of the receiver. The set, made up of sender and receiver, is delivered with a mounting bracket for easy alignment and simple installation on rolling grill doors.Properties:- Compatible with FRABA OSE interface- LED indicator to help alignment of transmitter and receiver- Mounting bracket for easy alignment- Range 1.5m – 10m- Protection class: IP68

Intelligent light curtain, OSE-output, Length 2590mm, 24 beams, EN 12453 Type E safety device, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
