FRABA VITECTOR OSE-C 2324 Control Unit OSE/8k2 24V ACDC
Technical Support Hotline +44 115 7180691
Only 100% New and Original Parts
Special Prices available for Door Dealers and Resellers. Contact us!
Stocked Products Ship within 24h
Product information "FRABA VITECTOR OSE-C 2324 Control Unit OSE/8k2 24V ACDC"
Control unit for optical sensing edges OSE or 8k2 resistive edges, relay output (stop, reverse and cable tension switch), monitors up to 2 sensing edges, IP65 enclosure, supply voltage 24 V AC/DC, rated Cat. 3 PL d (EN 13849-1)
Description:

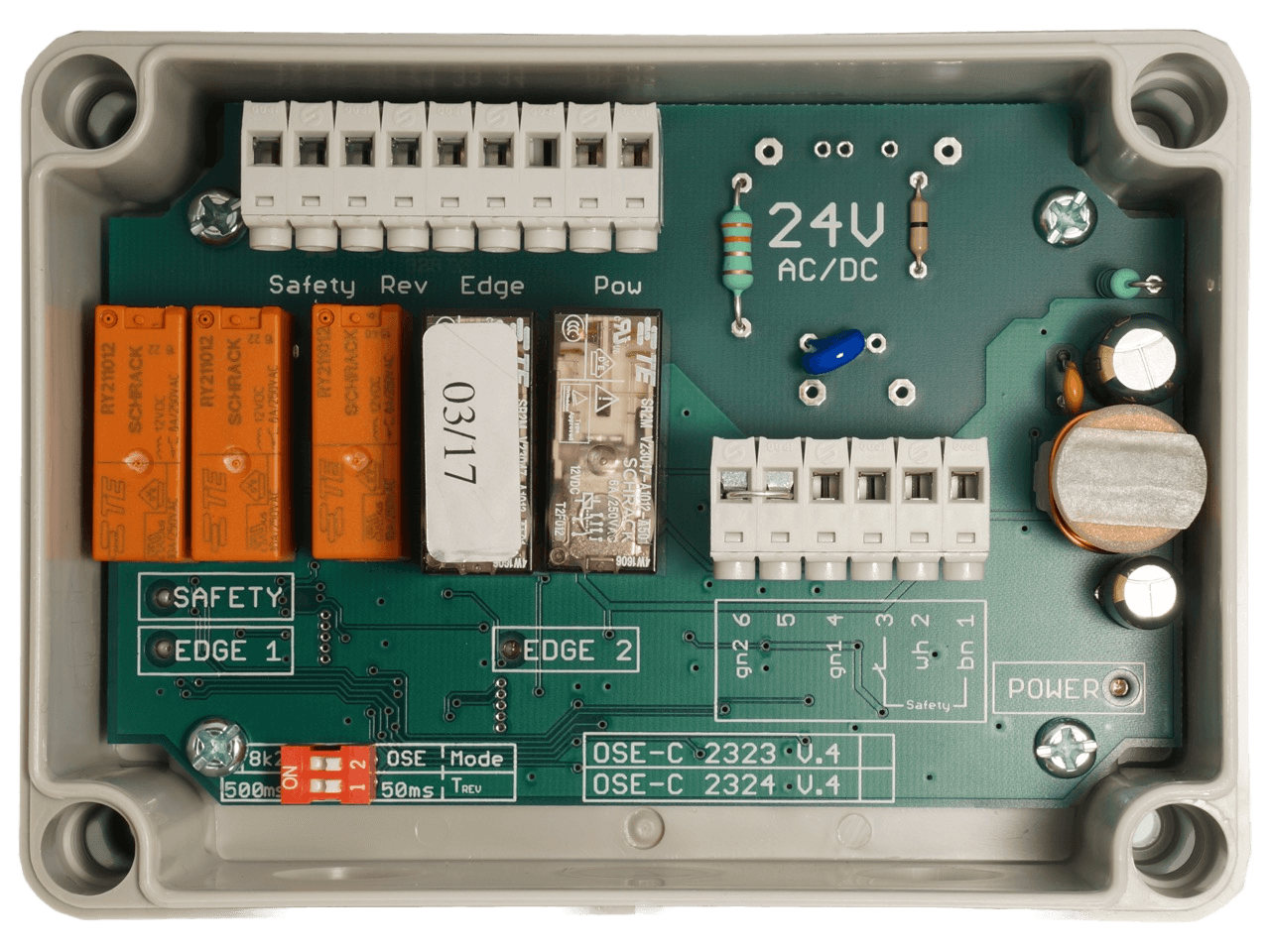

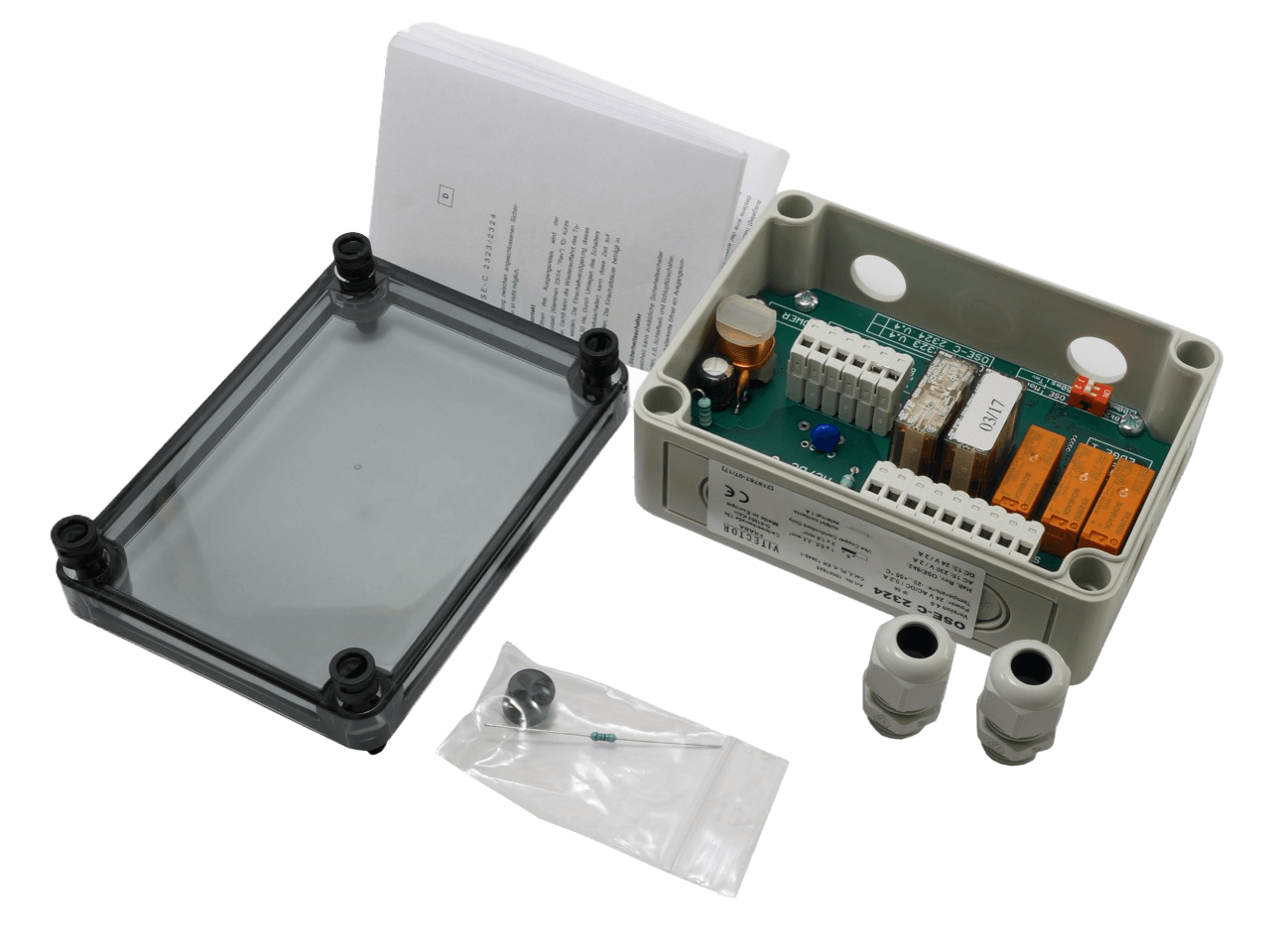

The FRABA VITECTOR OSE-C 2324 is a control unit for optical sensing edges on doors. The control unit can monitor and evaluate both optical sensing edges (type FRABA VITECTOR OSE) and resistant sensing edges with a terminal resistance of 8k2 Ohm. Besides this, a stop circuit (e.g. slack-rope switch and pass-door switch) can be monitored with this device.
- Several relay outputs (stop reverse and slack-rope switch, pass-door switch)
- Monitors up to 2 OSE or 8k2 safety edges
- Housing unit protection class: IP65
- Supply voltage: 24 V AC/DC
- Safety category: Cat.3 PL according to EN13849-1
| Additional Functions: | Reversierausgang (Schließer), Stop-Kontakt (Öffner) |
|---|---|
| Housing: | Surface Mount |
| Input: | 1x Stop-Circuit, 2x OSE or 8k2 |
| Material: | PC |
| Max. Operating Temperature: | +55 °C |
| Min. Operating Temperature: | -20 °C |
| No. Of Channels: | 2 |
| Output: | 1x Relay (NC) |
| Protection Class: | IP 65 |
| Supply Voltage: | AC 24 V, DC 24 V |
| max. Switching Current: | 4 A |
