GfA Elektromaten Sectional Door Drive SE9.24 with Control TS971

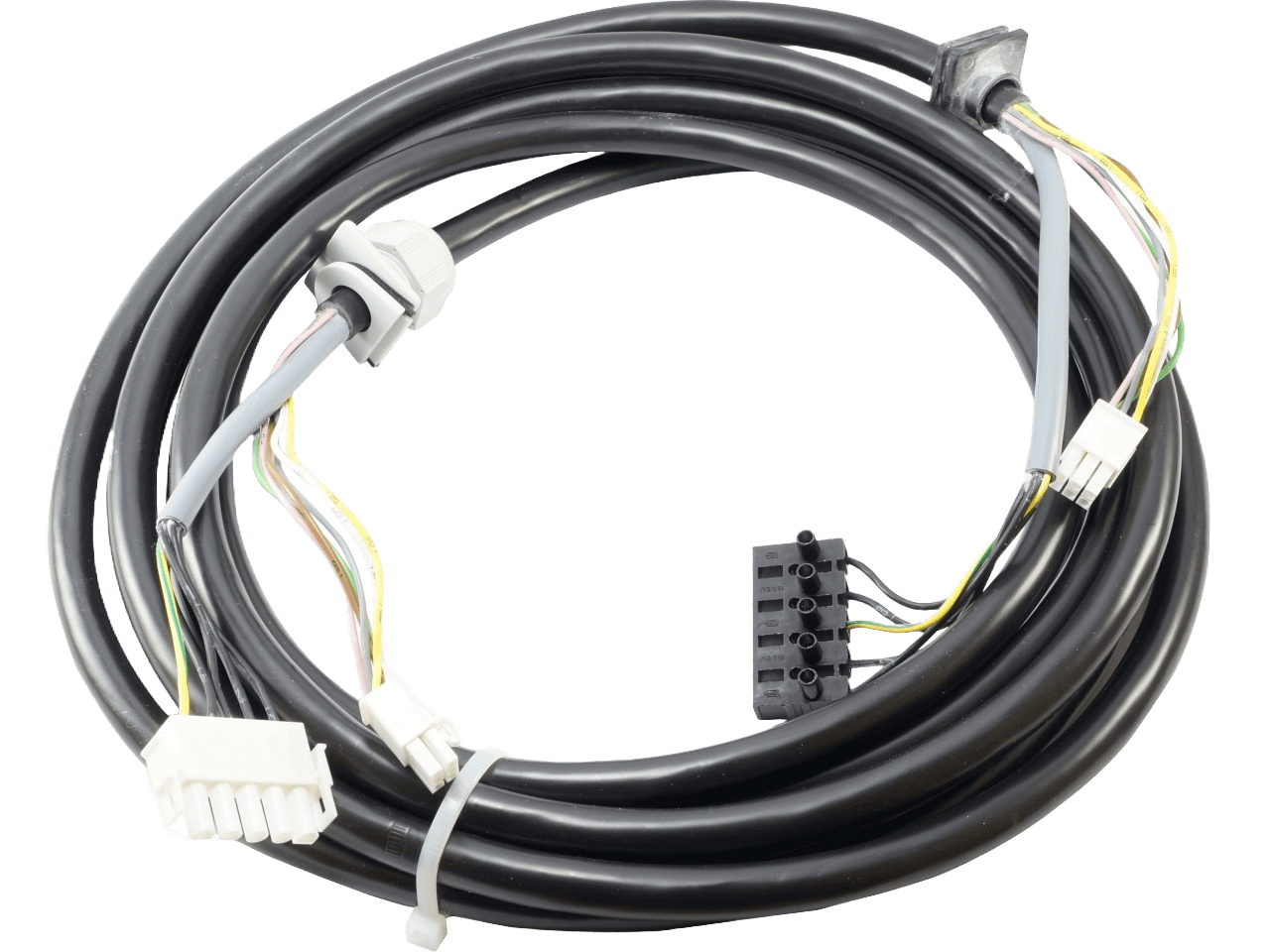

Motor cable for GfA Elektromaten drives with digital limit switch DES, length 5m

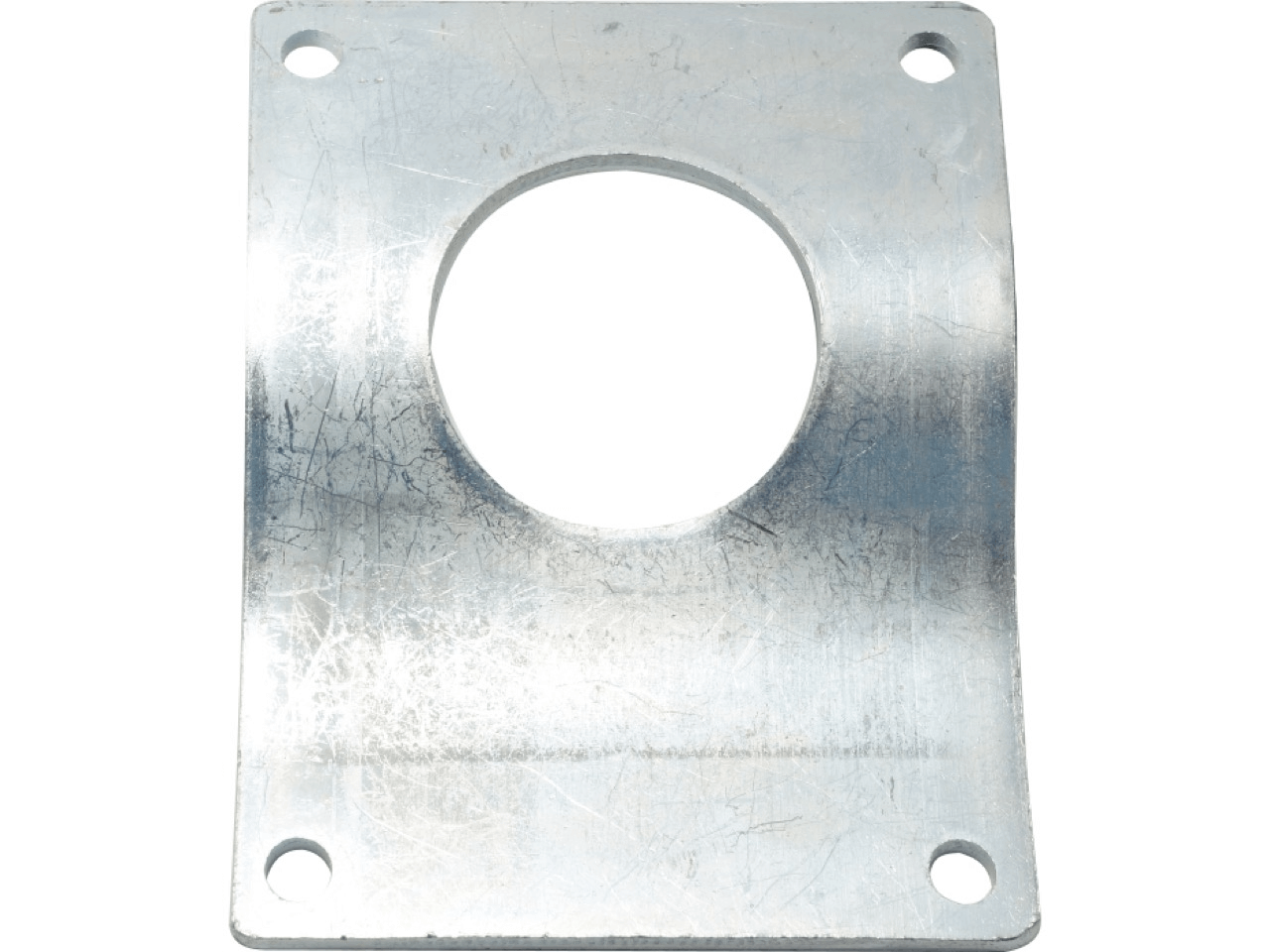

torque support bracket for sectional door drives, GfA Elektromaten Series SG50

Door control unit TS 971 for GfA Elektromaten drives with digital or mechanical limit switch, automatic or constant pressure to close operation, with integrated radio systemDescription:The door control unit TS 971 by GfA Elektromaten is an automatic control panel for use with GfA Elektromaten drives with digital (DES) or mechanical (NES) limit switch system. The TS 971 control panel comes with an integrated radio receiver for 434 MHz radio products of different manufacturers. In addition, the TS 971 has an integrated receiver, that can be used for the wireless transmission of the door safety edge in combination with the optional WSD module.Properties:Protection class IP54 with CEE plug or IP65 for direct wiringIntegrated push button for UP-STOP-CLOSE commandsIntegrated radio receiver for 434 MHz wireless productsParameter setting via selector switch with digital displayTwo independent, programmable relay contact, e.g. for red-green traffic-lightsOperating modes: hold-to-run or self-hold/ automatic modeAutomatic detection of safety edge type (Optical edge FRABA VITECTOR, resistive edge 8k2 or NC-contact type 1k2 with testing)Automatic timer-to-closeAdjustable intermediate open position, e.g. half open, venting positionAutomatic ground adjustment (only DES) to compensate for rope-stretch or subsequent change in ground heightDue to the pre-assembled, pluggable motor cable, the TS 971 can easily be connected to the drive. A faulty wiring is hereby avoided, thus minimizing installation errors and time. The connection cable can be wired into the control panel housing from either top or bottom. In addition to the motor cable, the TS 971 can work with a multitude of additional inputs, e.g. rope-switches, photo eyes, sensing edges and many more.The TS 971 by GfA Elektromaten comes with the function "radio/ wireless" already integrated, the control panel has an integrated receiver for remotes from different manufacturers using a frequency of 434 MHz. An additional radio receiver is not needed. In addition the wireless sensing edge transmission system WSD is already integrated on the control panel side. The WSD system is a wireless transmission system for sensing edges and allows monitoring and transmission of the most common sensing edge types, as well as pedestrian door and rope tension switches. The use of a coil cord is no longer needed. Of course the TS 971 also allows for connection with a coil cord.The TS 971 has comfort functions and allows installation in more demanding applications. For standard-applications GfA Elektromaten offers the panel type TS970.

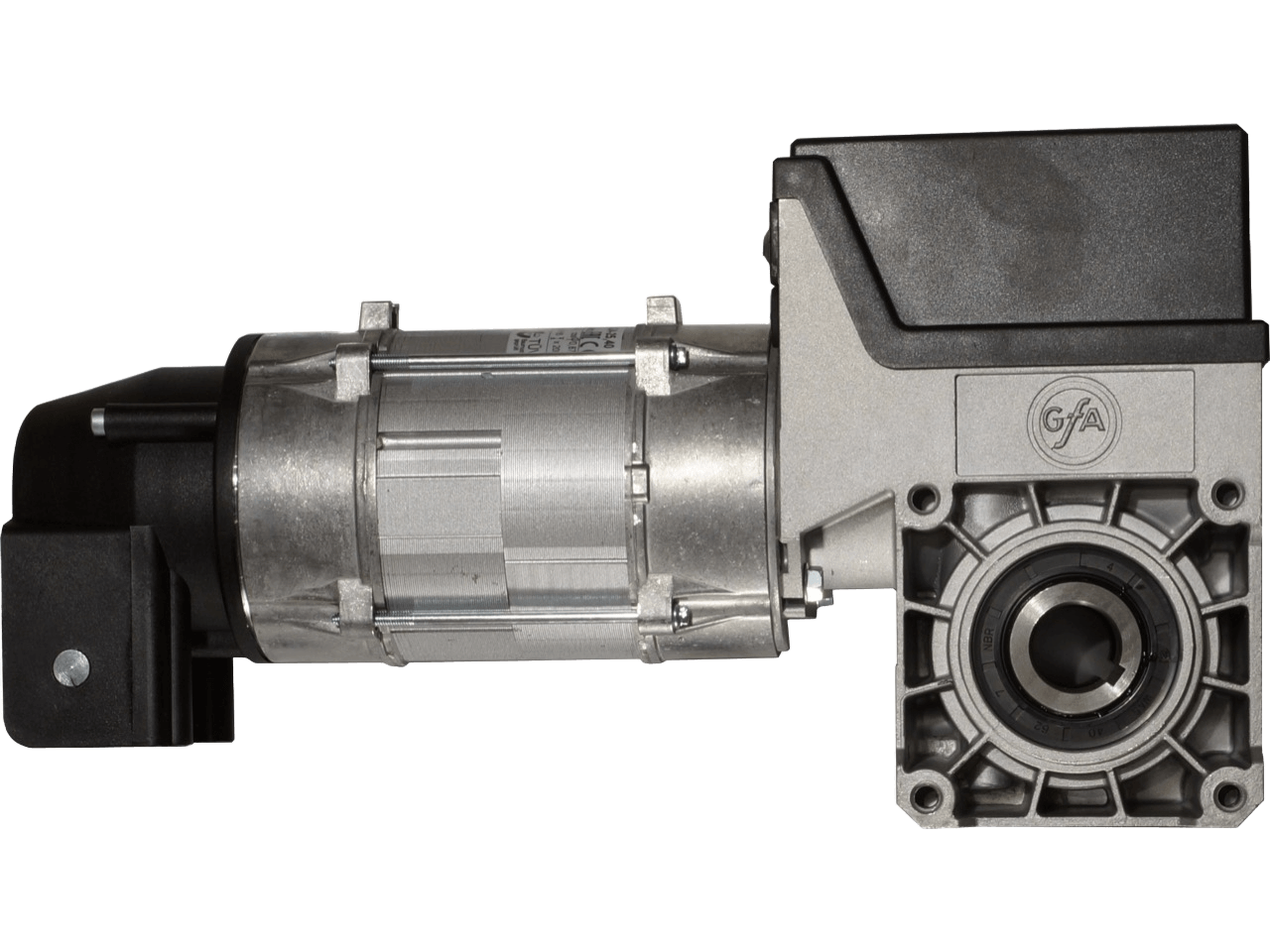

SE-ELEKTROMATEN, Drive for counter balanced sectional doors, output torque 90Nm, output speed 24 rpm, max. door weight 4000 N, supply voltage 3~230V/400V, hollow shaft diameter 25,4mm, with emergency hand chain for manual operation, digital limit switch DES, limit switch range E=20 revolutions max.Description:GfA Elektromaten SE9.24 SK-DES, sectional door drive with an output torque of 90Nm and an output speed of 24 rpm is a drive for counterbalanced sectional doors.Normally installed directly on the door shaftWith digital limit switch DES, no need to reset the parameters following a power failureEmergency manual override with rapid hand chain operatorMax. door weight 4000NSupply voltage 3~230V/400V

Drive set for counter-balanced sectional doors, motor torque 90 Nm, 25.4mm hollow shaft, 400 V, set contains: GfA Elektromaten drive SE9.24-25.40 SK DES, GfA Elektromaten door control unit TS970 with CEE plug, 5m motor cable, torque-support bracketDescription:The set of GfA Elektromaten door drive SE9.24 and door control unit TS970 is the perfect choice for automating counter balanced doors. The drive by GfA Elektromaten comes with 90Nm of torque, 24 rpm and with a hollow-shaft diameter of 25.4mm it fits most sectional door types. In case of a power loss, the door can be operated by using the hand chain attached to the drive unit. The set also contains the door control unit TS970, for automatic or constant pressure to close operation. For connection of the drive to the door control, a 5m connection cable is included.Properties:Drive for counter-balanced doors GfA Elektromaten SE9.24Integrated digital limit switch DESEmergency operation via hand chainConnection cable with 5m lengthDoor control unit TS970

Electrical box with status LED, 40 x 136 x 56 mm, incl. 3x M16 cable glands, 1x M16 cable gland with bend protection and 4x M16 lock nutDescription:The Fraba Vitector large junction box is useful wherever lots of space is needed for cabling from sensors, photo-eye switches, pass-door switches, slack-rope switches, etc. The connection circuit board ensures the cables can be easily connected to the door.Further characteristics:Dimensions: 40 x 136 x 56 mmTransparent coverPre-punched cable entries 5xM16 in the housing, 1xM16 in the lidIncludes 3xM16 cable glands, 1x bend protector and 4 x locknuts

Coil cord for doors, EstTPU/PP, black, cable configuration: fine-stranded 5x0,25mm²,  Lif9Y11Y, dimensions: left end = 300mm, coil length = 900mm, right end = 2000mm, max. extension length 3,5m   Description: The coil cord was developed especially for use on doors to connect the sensors and switches on the door leaf. Properties: Due to the 800mm-long spiral block, the coil cable can be extended to a length of up to 3.5m. The 5-core cable installation and a 0.25mm² conductor cross-section means the helical cable has enough strands for e.g. the safety edge and slack-rope switches Sheath and core insulation made of high-grade materials Can be installed universally on doors from various manufacturers

Set Transmitter (Tx) and Receiver (Rx) for Optical Sensing Edge OSE, PVC-cable, cable length 10,5m/0,5m, without plugsDescription:The FRABA VITECTOR OSE-S 6502 sensor set consists of a transmitter (Tx) and a receiver (Rx) for optical sensing edges. For an electrical connection, the sensors are equipped with a top-quality PVC Cable (length: transmitter - 10.5 m and receiver - 0.5m). The sensors are based on the original FRABA OSE technology and provide the well-known OSE-signal, which is implemented in many controllers.Warning:The 4-digit sequence of numbers used on the displays shows the sensor's manufacture date in week / year format. For example, 0118 shows the sensor was produced in the first calendar week (01) of 2018.

The VTX2 remote control from doorautomation24 combines modern design and reliable performance in a compact format. Equipped with a robust plastic housing, the remote control offers excellent functionality and is the perfect choice for the control of various devices. The high-quality workmanship and strong radio parameters of the VTX ensure reliable and convenient use. The remote controls of the VTX series are compatible with the radio receiver VRX150 from doorautomation24 and the integrated radio receiver of the door control unit TS971 from GfA Elektromaten. The integration into the existing door control unit TS971 is simple and is explained step by step in the document available under ‘Download’. Important features: Design: Robust plastic housing for long-lasting use Compatibility: Fully compatible with the VRX150 receiver from doorautomation24 and the TS971 from GfA Elektromaten Range, coverage: Stable radio range of up to 150 metres Security: KeeLoq® rolling code for high security with 4,294,967,296 possible combinations User-friendly: powered by 2 standard CR2016 batteries (included)   Important information for use with the TS971 from GfA Elektromaten: To teach the remote control to the door control unit, the remote control must be programmed using the corresponding parameter of the door control unit. To do this, the installer must have access to the control unit programming.
