ELKA NOVA 800 sliding door operator, M4 Plastic, without radio
€817.00
Product information "ELKA NOVA 800 sliding door operator, M4 Plastic, without radio"
The ELKA NOVA 800 sliding gate operator is the ideal solution for industrial and private applications that require maximum reliability and performance. This robust operator is suitable for sliding gates up to a weight of 800 kg (depending on model) and a maximum gate length of 14 metres. With a running speed of up to 16.8 m/min (depending on model), it ensures fast and efficient opening and closing of your gates.

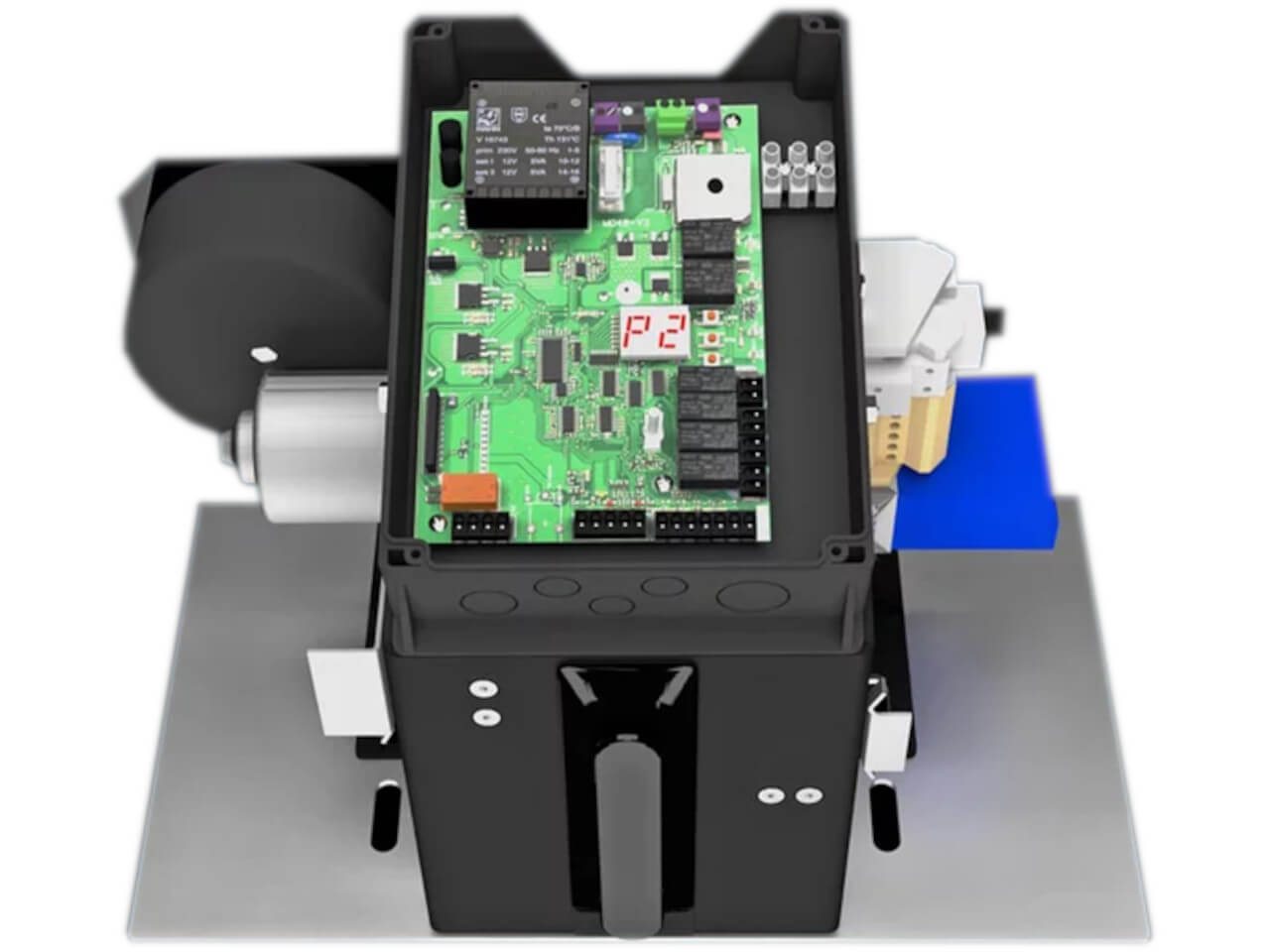

The NOVA 800 offers a wide range of applications thanks to its robust design and high-quality materials. The built-in MO 46 multifunctional control unit offers a wide range of connection options and takes over the door control unit in automatic or constant-pressure-to-close. The drive also has a plastic or steel gear wheel, depending on the specific requirements and operating conditions.

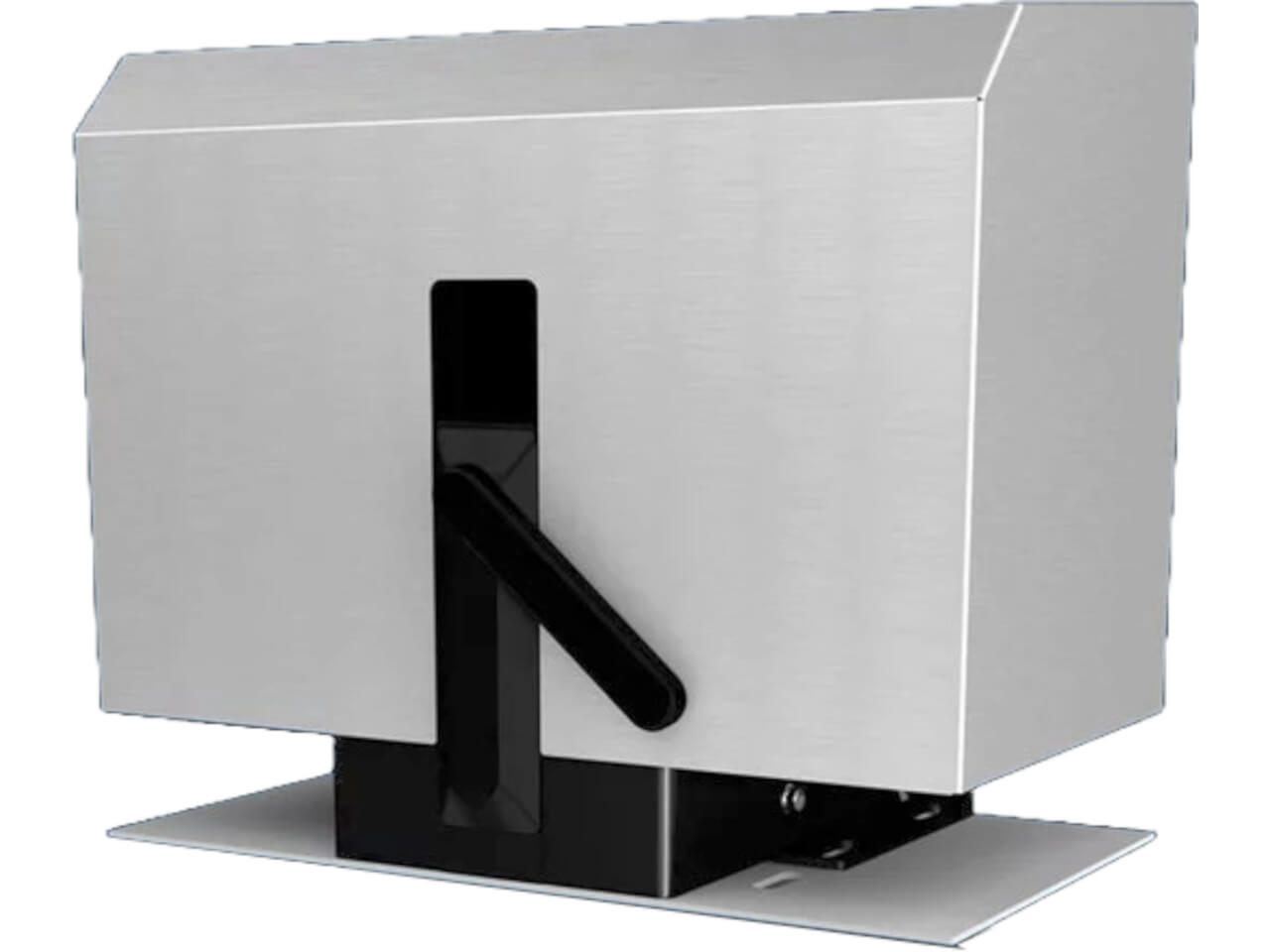

Safety and user-friendliness are ELKA's top priorities. The NOVA 800 sliding gate operator is equipped with a lockable stainless steel cover that provides additional protection against unauthorised access. There is sufficient space under this cover for accessories such as an induction loop detector or timer. The swivelling lever lock makes it easy to remove the cover, which automatically interrupts the power transmission to the door - an important emergency release function in the event of a power failure. Clear cable routing, large cable glands and professional plug-in terminals make installation quick and easy.
Technical highlights
Operator system:
- Robust construction: Durability and stability
- Stainless steel cover: Lockable for additional contactors
- Emergency release: Via standard profile half cylinder and swivelling lever lock
- High duty cycle: Ideal for intensive use
- Quick commissioning: Quick and easy to start
- Convenient control layout: User-friendly and efficient
- Space for cable entry and accessories: Flexibility during installation
- Variable gear adjustment: Adaptable to different requirements
- Output shaft with damper hub: Optimised performance
- Long output shaft (NOVA 800-L): For doors up to 600 kg
- Pinion for high speed (NOVA 800-S): For doors up to 300 kg
MO 46 multifunction control unit:
- 2x7 segment display: Clear and simple operation
- Soft start and soft stop: Smooth operation
- No limit switches required: Less maintenance required
- Adjustable speed and force: Adaptation to specific requirements
- Automatic closing: For full and partial opening
- Various operating modes: One-button, three-button or constant-pressure-to-close
- 6 photo eye inputs with test function: Increased safety
- Contact profile evaluation 8.2 kOhm: Separate evaluation for OPEN and CLOSE
- Door status query: Via relay outputs
- Relief return: Off GATE CLOSED position
| Emergency Operation: | Gear Release |
|---|---|
| Gate Speed (with standard sprocket): | 12,6 m/min |
| Hollow- / Output-Shaft (Ø): | 20 mm |
| Max. Operating Temperature: | +50 °C |
| Min. Operating Temperature: | -20 °C |
| Protection Class: | IP 44 |
| Radio Function: | Optional |
| Supply Voltage: | 1N~230 V |
| max. Door Weight: | 800 kg |
