Switches & Radio
Es gibt verschiedene Möglichkeiten ein automatisches Tor zu bedienen und das Öffnen oder Schließen der Toranlage zu starten. Neben dem Einsatz von Aktivierungssensoren zur automatischen Torbewegung werden häufig auch Funksysteme oder Taster eingesetzt.
4-channel mini remote, unidirectional, 868 MHz bi.linked, neutral version. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryWall bracket with mounting materialsFeatures:4 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

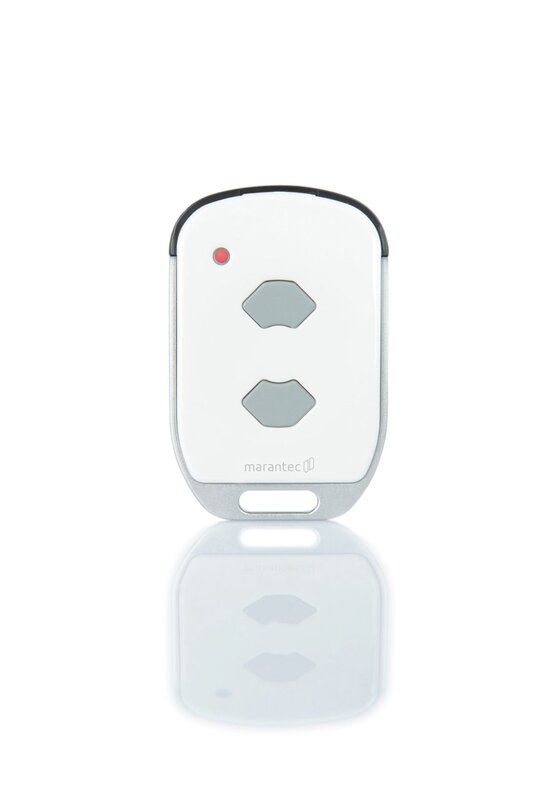

2-channel micro handheld remote, unidirectional, 433 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Handheld remote with batteryFeatures:2 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)
2-channel micro remote, unidirectional, 868 MHz bi.linked, neutral version. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryFeatures:2 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)
3-channel mini remote with status query, bidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryWall bracket with mounting materialsFeatures:3 function buttons for free assignment1 button for checking the gate positionAutomatic indication of direction of travel when button is pressedMulti-coloured LED indicationBracket / mount for attaching to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

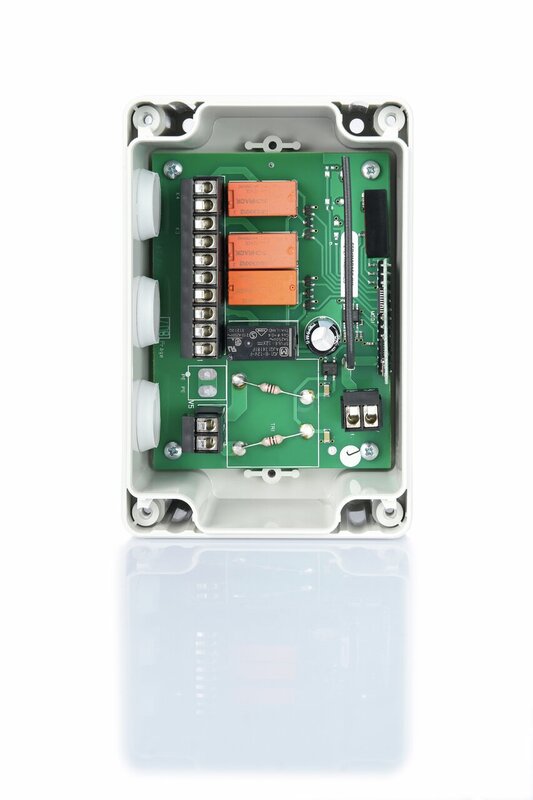

4-channel universal receiver with 2,000 memory slots and 4 relays, 24 V, IP54, unidirectional, 868 MHz DM7S. For all Marantec control units and third-party products. Scope of delivery:Universal receiver with memory moduleFeatures:4 channels for free assignment4 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable for each channelControl of additional electrical loads, e.g. LightingPlug-in memory module for up to 2,000 handheld remote controlsThe memory module is programmed using the programming device and the computer software

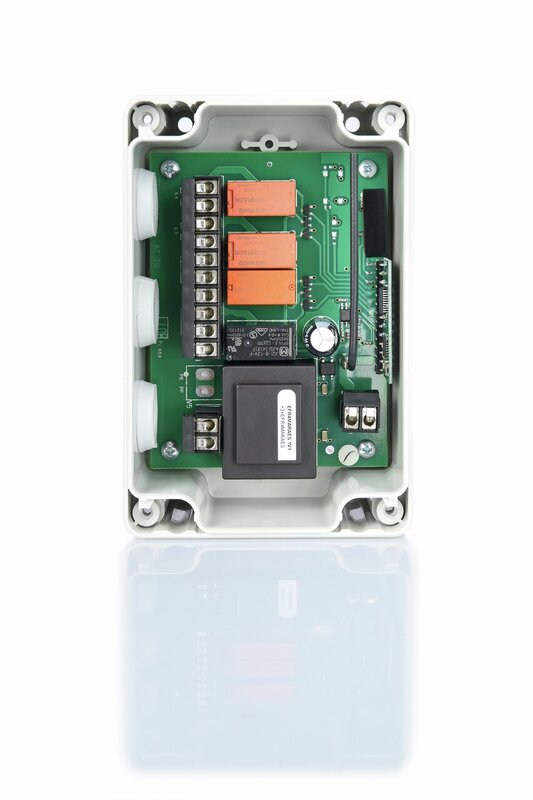

4-channel universal receiver with 2,000 memory slots and 4 relays, 230 V, IP54, unidirectional, 868 MHz DM7S. Compatible with all Marantec control units and third-party products. Scope of delivery:Universal receiver with memory moduleFeatures:4 channels for free assignment4 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable per channelControl of additional electrical loads, e.g. LightingPlug-in memory module for up to 2,000 remote controlsThe memory module is programmed using the programming device and computer software

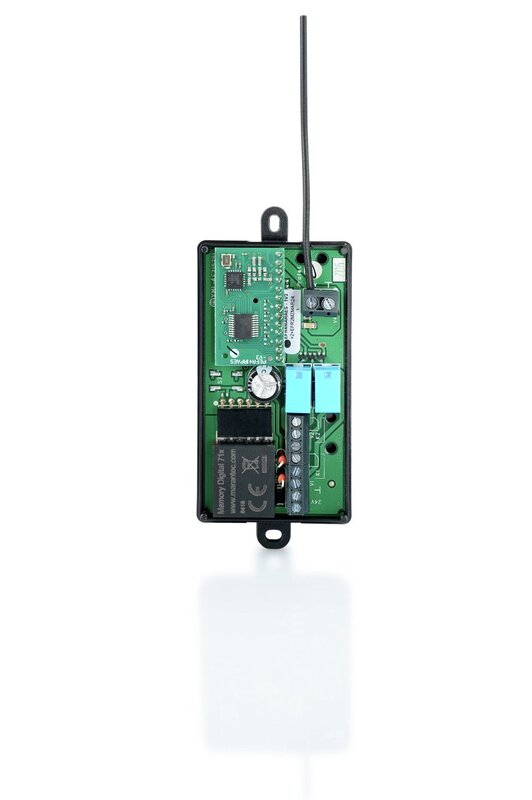

2-channel universal receiver with 2,000 memory slots and 2 relays, 24 V, IP20, unidirectional, 868 MHz DM7S. For all Marantec controls and third-party products. Contents:Mini universal receiver with memory module2 Velcro adhesive padsFeatures:2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable per channelControl of additional electrical loads, e.g. lightingPlug-in memory module for up to 2,000 remote transmittersThe memory module is programmed using the programming device and computer softwareCompact size

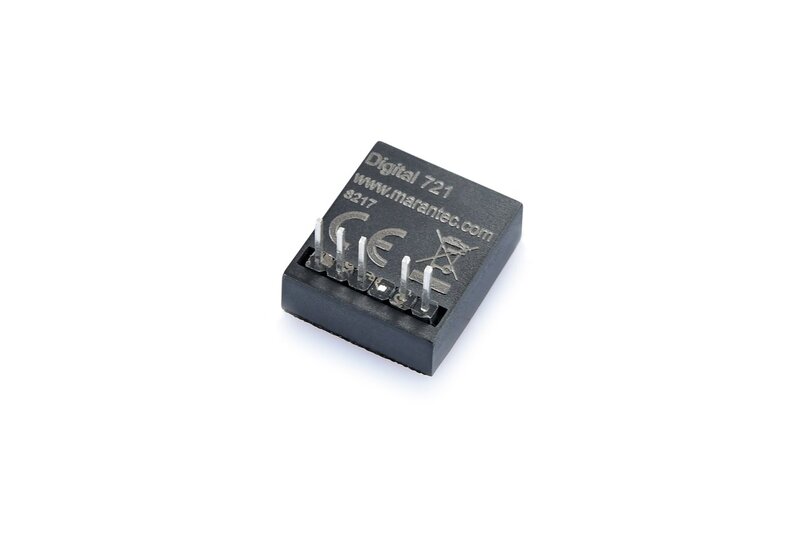

Memory module with 1,000 virtual serial numbers. For Digital 720 programming device. Contents:Memory module with 1,000 virtual serial numbersFeatures:Memory module with 1,000 virtual serial numbersThe memory module can be read out once using the programming device and is then unusable. The virtual serial numbers are displayed in the software and can be usedVirtual serial numbers should always be stored on a receiver’s memory module in addition to real serial numbers. If the customer subsequently orders a further remote transmitter, this can be pre-programmed in the office with a virtual serial number and sent to the customer. After pressing the button on the remote twice, it is immediately programmed into the receiver and can be used
4-channel flush-mounted transmitter, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Flush-mounted transmitter with batteryConnection cable, 90 mmFeatures:4 potential-free inputs for connecting e.g. push-buttons – wired push-buttons thus become wireless push-buttonsHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
Module receiver with 200 memory slots, bidirectional, 433 MHz bi.linked. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370, 380 and 390 (plus) from Controlbox R10 onwards. For Control x.52, CS 265 and VTA. Contents:Module receiverFeatures:IMPULS functionGenerous memory capacity for up to 200 buttonsPlugs-in directly to the control unitCompact size
Module receiver with 200 memory slots and magnetic base antenna with 5 m cable, bidirectional, 433 MHz bi.linked. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370, 380 and 390 (plus) from Controlbox R10. For Control x.52, x.82, CS 255 AC and VTA. Contents:Module antenna with connection for magnetic base antennaMagnetic base antenna with connection cable, 5,000 mmMounting bracketMounting hardware
Module receiver with 200 memory slots and magnetic base antenna with 5 m cable, bidirectional, 868 MHz bi.linked. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370, 380 and 390 (plus) from Controlbox R10. For Control x.52, x.82, CS 255 AC and VTA. Contents:Module antenna with connection for magnetic base antennaMagnetic base antenna with connection cable, 5,000 mmMounting bracketMounting hardware
Module receiver with 200 memory slots and 1 open-collector output, 24 V, unidirectional, 433 MHz bi.linked. For CS 320. For third-party products (in conjunction with the enclosed connection cable). Scope of delivery:Universal receiverConnection cable, 300 mmFeatures:1 channel for free assignment1 potential-free relay contact for switching an electrical device, e.g. pulse input of a door control unitPULSE functionGenerous memory capacity for up to 200 buttonsCompact size
Module receiver with 200 memory slots and 1 open-collector output, 24 V, unidirectional, 868 MHz bi.linked. For CS 320. For third-party products (in conjunction with the supplied connection cable). Scope of delivery:Universal receiverConnection cable, 300 mmFeatures:1 channel for free assignment1 potential-free relay contact for switching an electrical device, e.g. pulse input of a door control unitPULSE functionGenerous memory capacity for up to 200 buttonsCompact size
2-channel universal receiver with 100 memory slots per relay, 24 V, IP65, unidirectional, 868 MHz bi.linked. For all Marantec controls and third-party products. Scope of delivery:Universal receiverMounting hardwareFeatures:Weather-resistant housing2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse or ON/OFF function separately adjustable per channelGenerous memory capacity for up to 100 buttons per channelConnection via conventional wiring for external push-buttons to directly switch each relay

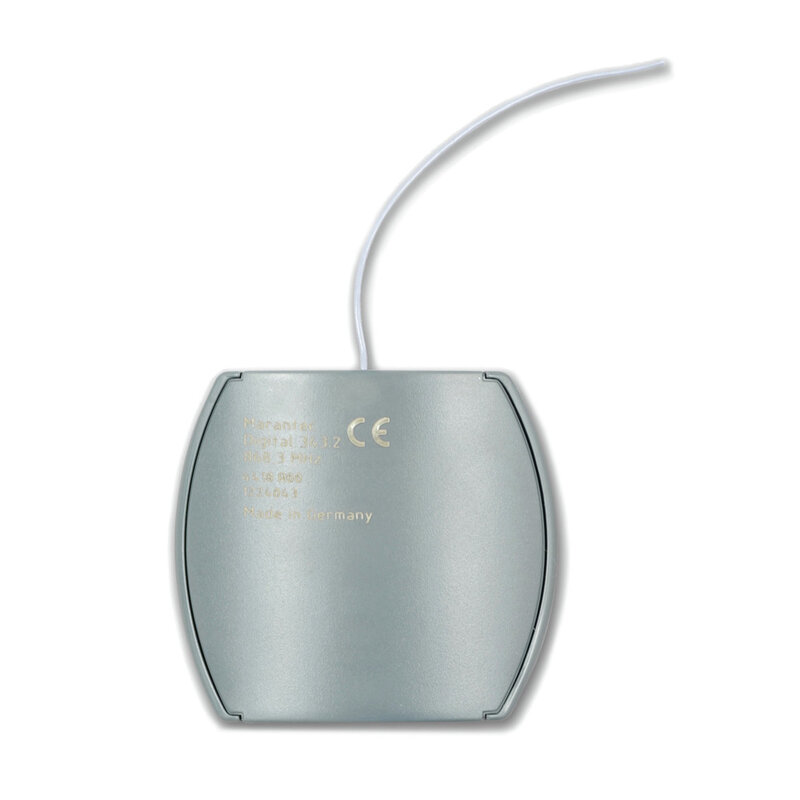

2-channel universal receiver with 100 memory slots per relay, 24 V, IP20, unidirectional, 433 MHz bi.linked. For all Marantec controls and third-party products. Contents:Universal receiverMounting hardwareFeatures:Compact design2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse or ON/OFF function separately adjustable per channelGenerous memory capacity for up to 100 buttons per channelConnection via conventional wiring for external push-buttons to directly switch each relay
2-channel universal receiver with 100 memory slots per relay, 24 V, IP65, unidirectional, 433 MHz bi.linked. For all Marantec controls and third-party products. Scope of delivery:Universal receiverMounting hardwareFeatures:Weather-resistant housing2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse or ON/OFF function separately adjustable per channelGenerous memory capacity for up to 100 buttons per channelConnection via conventional wiring for external push-buttons to directly switch each relay
1-channel socket receiver with 200 memory slots, Schuko type F, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products. Contents:Socket receiver with Schuko plug and socket type FConnection cable, 1,500 mmFeatures:1 channel for free assignment1 potential-free relay contact for switching an electrical device, e.g. pulse input of a door control unitPULSE functionGenerous memory capacity for up to 200 buttonsPower supply via the drive’s mains socket without blocking itEasy conversion of third-party drives to Marantec remote transmitters or to change the radio frequency
1-channel flush-mounted receiver with 200 memory slots and a live relay, 230 V, unidirectional, 868 MHz bi.linked. For all Marantec controls and third-party products. Scope of delivery:Flush-mounted receiverFeatures:1 channel for free assignment1 live relay contact for directly switching an electrical device, e.g. an outdoor lightON/OFF functionGenerous memory capacity for up to 200 buttonsCompact size
1-channel module receiver with 15 memory slots, unidirectional, 433 MHz multi-bit. For CS 320. Contents:Module receiverFeatures:PULSE functionPlug-in directly into the control unitCompact size

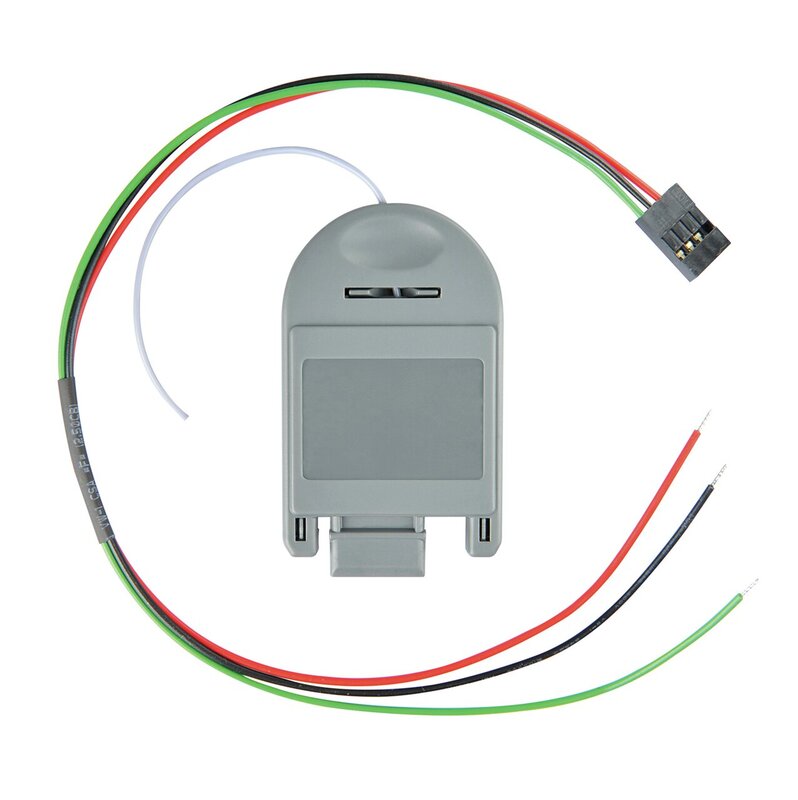

1-channel module receiver with 15 memory slots and 1 open-collector output, 24 V, unidirectional, 433 MHz multi-bit, with 0.3 m cable. For third-party products. Scope of delivery:Module receiverConnection cable for third-party products, 300 mmFeatures:IMPULS functionPlug-in directly into the control unitCompact size
1-channel module receiver with 15 memory slots and 1 open-collector output, 24 V, unidirectional, 868 MHz multi-bit, with 0.3 m cable. For third-party products. Scope of delivery:Module receiverConnection cable for third-party products, 300 mmFeatures:IMPULSE functionCan be plugged-in directly to the control unitCompact size
Without housing, for Hormann industrial doors series 30 and 40, 0.5 m cable, conventional, NC. For control units with connection for NC slack-rope switch. Scope of delivery:Slack-rope switch with 500 mm connection cable
Without housing, for Hormann industrial doors, Series 30 and 40, 0.5 m cable, system cabling, NC. Contents:Slack-rope switch with 500 mm connection cable and system plug
Funksysteme für Tore
Eine der häufigsten Methoden ist Bedienung mittels Funk-Fernbedienung oder Handsender. Benutzer können das Tor bequem von einer Entfernung aus öffnen oder schließen, indem sie eine drahtlose Fernbedienung nutzen. Dies ist besonders praktisch für Durchfahrts- oder Garagentore und ermöglicht eine komfortable Bedienung direkt aus dem Fahrzeug heraus.
Taster und Schalter an Toren
Eine sehr beliebte Art zur Torsteuerung ist auch die Bedienung per Schlüsselschalter. Hierbei wird durch das Drehen des Schlüssels in der Schaltereinheit das Tor geöffnet oder geschlossen. Diese Methode bietet eine physische Sicherheitskontrolle, da der Schlüssel physisch vorhanden sein muss, um das Tor zu bedienen.
Ähnlich verhält es sich beim Einsatz von Codeschlössern, bei denen das Tor durch die Eingabe eines vorher festgelegten Zahlencodes gesteuert wird. Dies ist besonders nützlich, wenn mehrere Personen Zugang zum Bereich haben sollen, ohne dass physische Schlüssel oder Fernbedienungen weitergegeben werden müssen.
Zur Ausfahrt in Tiefgaragen kommen oft Zugschalter zum Einsatz, bei denen durch den Zug an einer Kordel ein Schalter aktiviert wird. Dieser veranlasst dann die Torbewegung.
Im Bereich der Schalter und Taster gibt es eine Vielzahl von Ausführungsformen die sich zum Einsatz an Toranlagen eignen. Die Wahl der Methode zur Einleitung der Torfahrt hängt von verschiedenen Faktoren ab. Darunter der spezifischen Anwendung, den Sicherheitsanforderungen, der Anzahl an Nutzern, dem Nutzungsgrad und den Präferenzen der Benutzer. Die Vielfalt der verfügbaren Technologien bietet eine flexible und maßgeschneiderte Lösung für die individuellen Bedürfnisse unterschiedlichster Toranwendungen.
