Radio transmitters and radio receivers for industrial door automation
Remote transmitters for automatic doors are small, but nevertheless extremely important components in door automation. After all, they significantly improve the convenience and safety of automatic doors. Radio transmitters and radio receivers allow doors to be opened and closed conveniently and easily, which not only promises an uninterrupted production process, but also contributes significantly to safety in industry and manufacturing.
4-channel radio code keypad with 3 permanent PINs, one temporary PIN and a light button, unidirectional, 433 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Radio code keypad with 2 batteriesMounting materialsFeatures:Operation via entry of a 4-digit PIN3 freely selectable user PINs for assigning functions1 freely selectable temporary user PIN (usable 3 times)1 changeable master PIN for administration1 function key for free assignmentSignalling via red LEDHigh security thanks to 128-bit AES-encrypted wireless transmission and constantly changing wireless code (rolling code method)
4-channel radio code keypad with 3 permanent PINs, one temporary PIN and a light button, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Radio code keypad with 2 batteriesMounting materialsFeatures:Operation via entry of a 4-digit PIN3 freely selectable user PINs for assigning functions1 freely selectable temporary user PIN (usable 3 times)1 changeable master PIN for administration1 function key for free assignmentSignalling via red LEDHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
4-channel radio code keypad with 3 permanent PINs, one temporary PIN, a light button and a protective cover, unidirectional, 433 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Radio code keypad with 2 batteriesMounting materialsFeatures:Operation via entry of a 4-digit PIN3 freely selectable user PINs for customisable function assignment1 freely selectable temporary user PIN (usable 3 times)1 changeable master PIN for administrationSignalling via red LEDSliding cover protects the keypad from dirtHigh security thanks to 128-bit AES-encrypted wireless transmission and constantly changing wireless code (rolling code method)
4-channel wireless code keypad with 3 permanent PINs, one temporary PIN, a light button and a protective cover, unidirectional, 868 MHz bi.linked, neutral finish. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Radio code keypad with 2 batteriesMounting materialsFeatures:Operation via entry of a 4-digit PIN3 freely selectable user PINs for customisable function assignment1 freely selectable temporary user PIN (usable 3 times)1 changeable master PIN for administrationSignalling via red LEDSliding cover protects the keypad from dirtHigh security thanks to 128-bit AES-encrypted wireless transmission and constantly changing wireless code (rolling code method)
4-channel wireless code keypad with 3 permanent PINs, one temporary PIN, a light button and a protective cover, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Radio code keypad with 2 batteriesMounting materialsFeatures:Operation via entry of a 4-digit PIN3 freely selectable user PINs for customisable function assignment1 freely selectable temporary user PIN (usable 3 times)1 changeable master PIN for administrationSignalling via red LEDSliding cover protects the keypad from dirtHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)

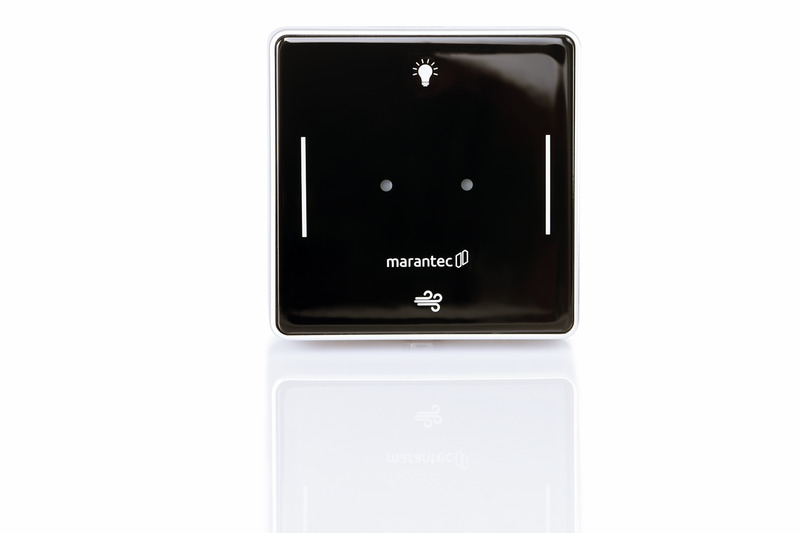

4-channel wireless indoor push-button switch with light and ventilation buttons, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Wireless indoor push-button switch with 2 batteriesMounting materialsFeatures:2 function buttons for free assignment1 button for actuations of the drive lighting ON/OFF1 button for operating the ventilation positionSignalling via red LEDHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)
4-channel wireless indoor push-button switch with light and ventilation buttons, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Wireless indoor push-button switch with 2 batteriesMounting materialsFeatures:2 function buttons for free assignment1 button for actuations of the drive lighting ON/OFF1 button for operating the ventilation positionSignalling via red LEDHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

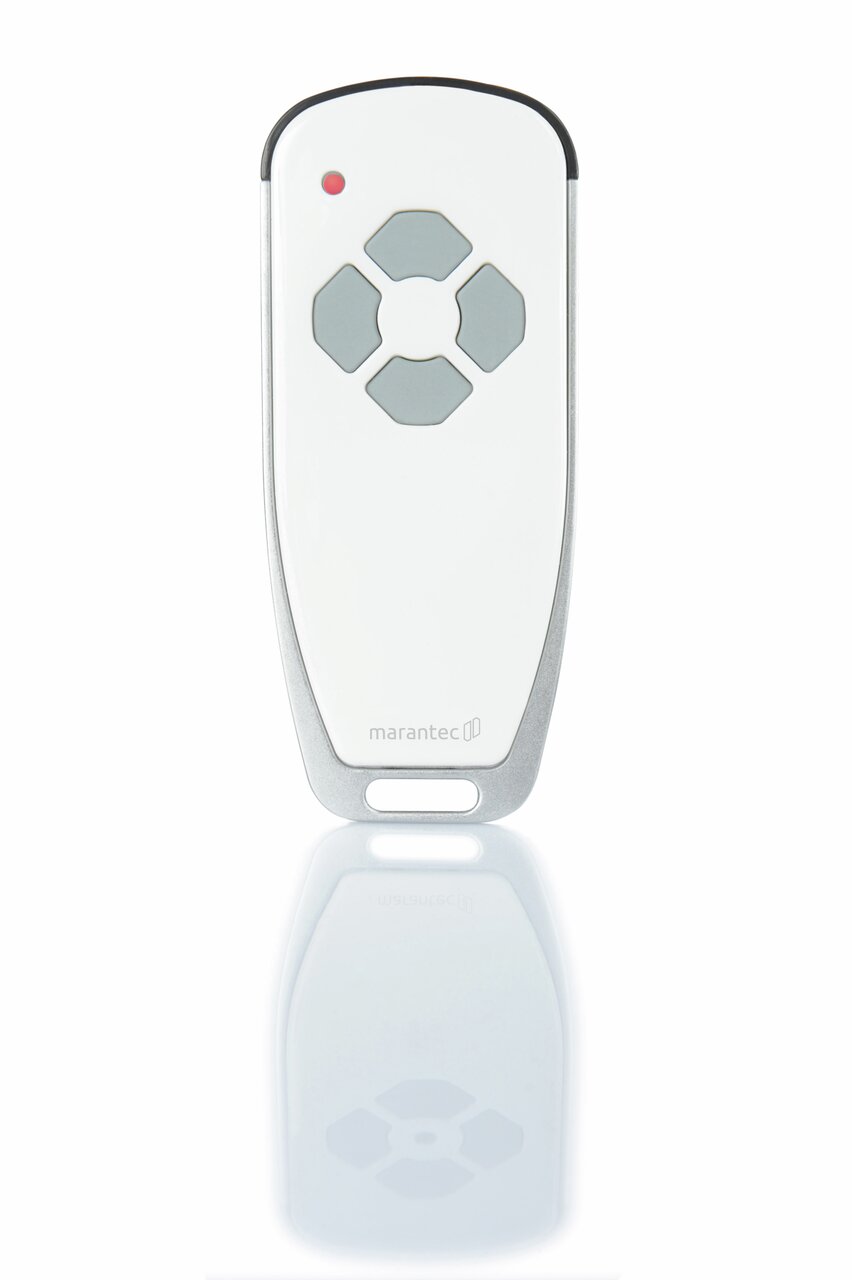

4-channel mini remote, unidirectional, 433 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryWall bracket with mounting materialsFeatures:4 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

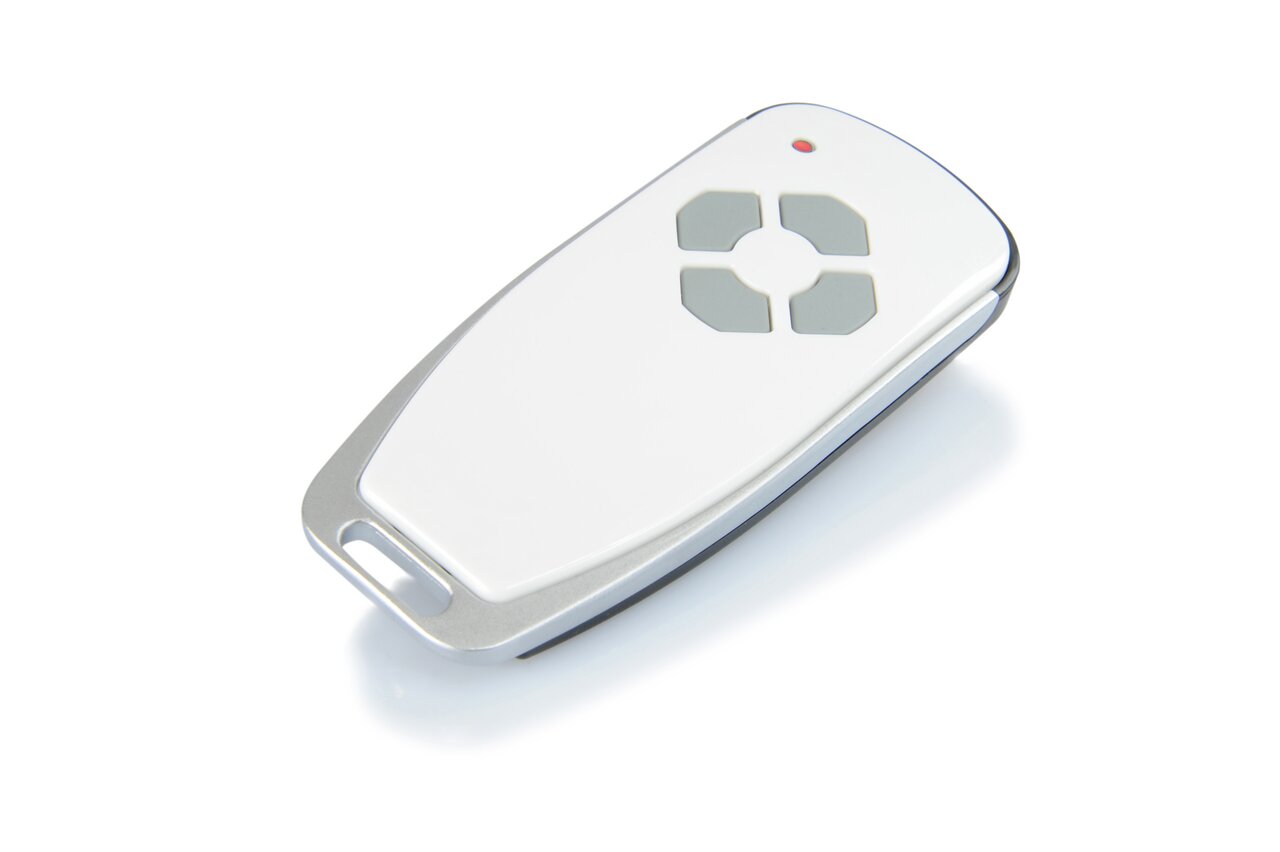

4-channel mini remote, unidirectional, 868 MHz bi.linked, neutral version. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryWall bracket with mounting materialsFeatures:4 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

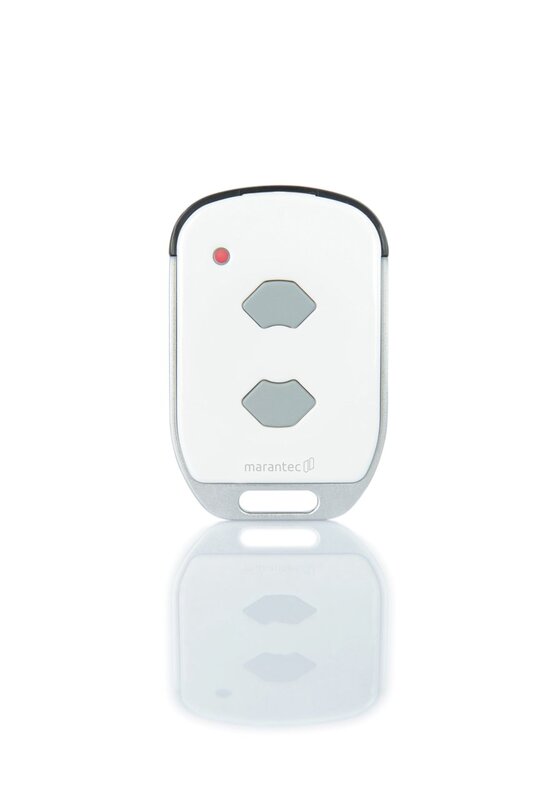

2-channel micro handheld remote, unidirectional, 433 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Handheld remote with batteryFeatures:2 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)
2-channel micro remote, unidirectional, 868 MHz bi.linked, neutral version. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryFeatures:2 function buttons for free assignmentSignalling via red LEDEyelet for a bracket / mount to attach to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

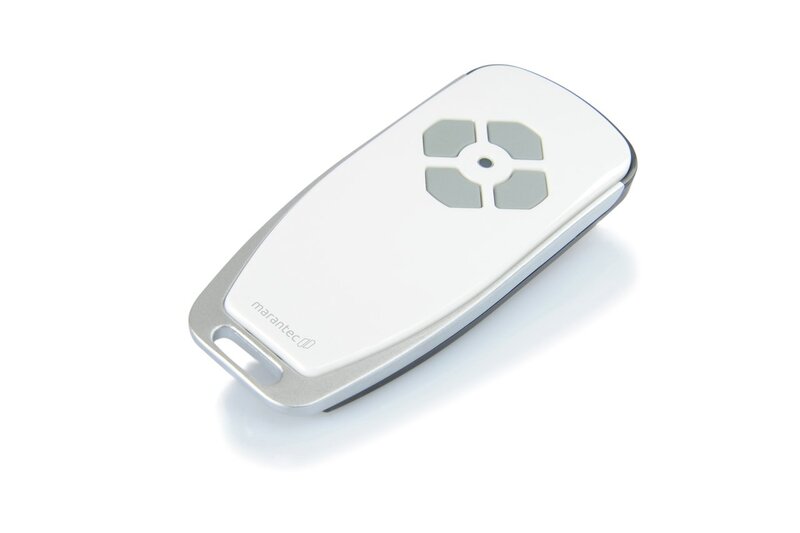

3-channel mini remote with status query, bidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Remote with batteryWall bracket with mounting materialsFeatures:3 function buttons for free assignment1 button for checking the gate positionAutomatic indication of direction of travel when button is pressedMulti-coloured LED indicationBracket / mount for attaching to a key ring or lanyardHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code system)

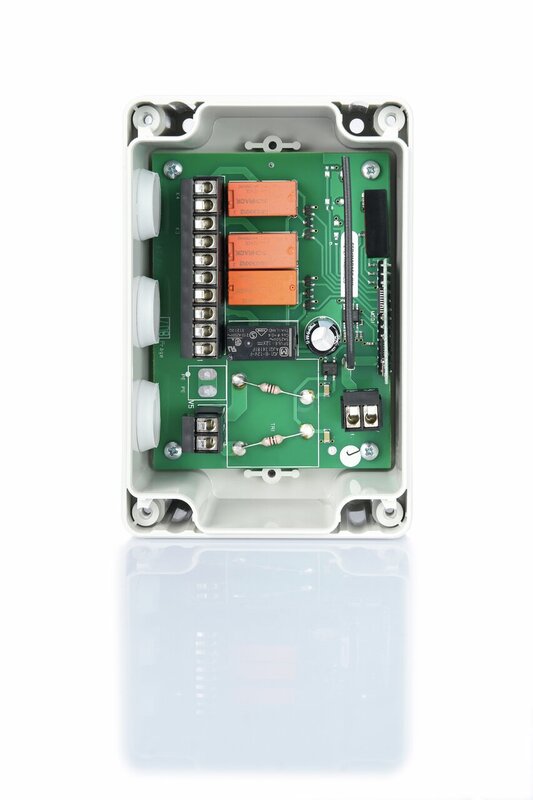

4-channel universal receiver with 2,000 memory slots and 4 relays, 24 V, IP54, unidirectional, 868 MHz DM7S. For all Marantec control units and third-party products. Scope of delivery:Universal receiver with memory moduleFeatures:4 channels for free assignment4 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable for each channelControl of additional electrical loads, e.g. LightingPlug-in memory module for up to 2,000 handheld remote controlsThe memory module is programmed using the programming device and the computer software

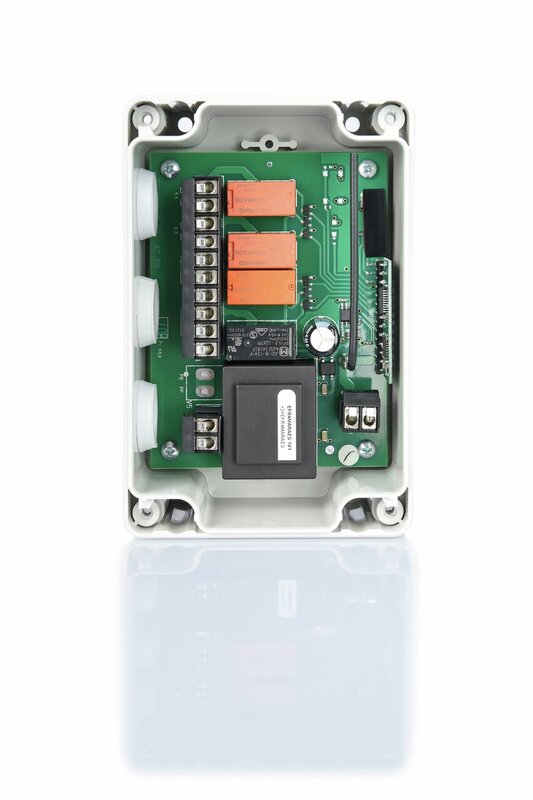

4-channel universal receiver with 2,000 memory slots and 4 relays, 230 V, IP54, unidirectional, 868 MHz DM7S. Compatible with all Marantec control units and third-party products. Scope of delivery:Universal receiver with memory moduleFeatures:4 channels for free assignment4 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable per channelControl of additional electrical loads, e.g. LightingPlug-in memory module for up to 2,000 remote controlsThe memory module is programmed using the programming device and computer software

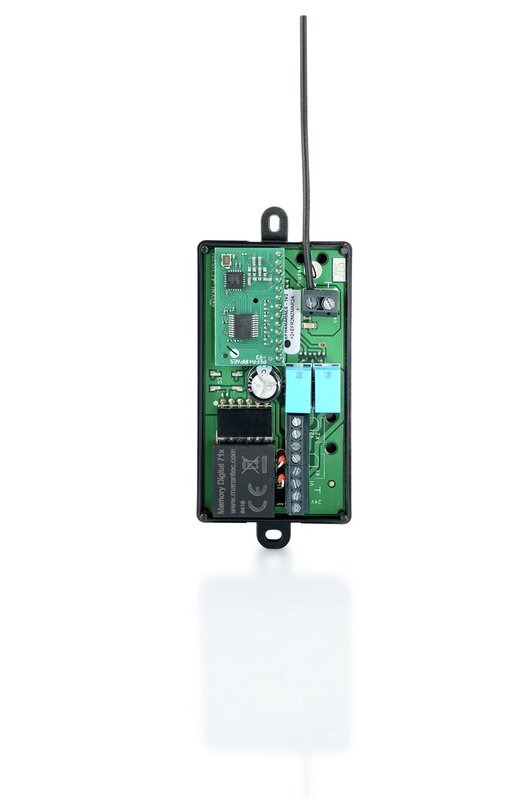

2-channel universal receiver with 2,000 memory slots and 2 relays, 24 V, IP20, unidirectional, 868 MHz DM7S. For all Marantec controls and third-party products. Contents:Mini universal receiver with memory module2 Velcro adhesive padsFeatures:2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse, ON/OFF or timer function (1 to 1,000 seconds) separately adjustable per channelControl of additional electrical loads, e.g. lightingPlug-in memory module for up to 2,000 remote transmittersThe memory module is programmed using the programming device and computer softwareCompact size

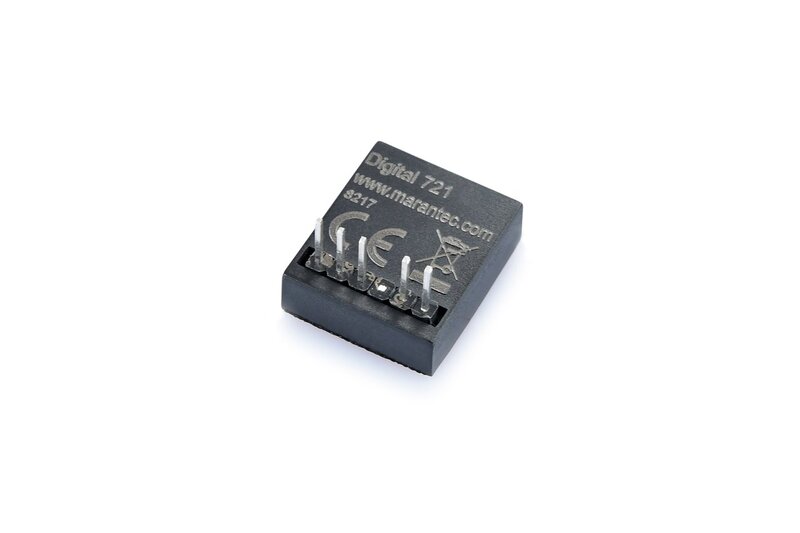

Memory module with 1,000 virtual serial numbers. For Digital 720 programming device. Contents:Memory module with 1,000 virtual serial numbersFeatures:Memory module with 1,000 virtual serial numbersThe memory module can be read out once using the programming device and is then unusable. The virtual serial numbers are displayed in the software and can be usedVirtual serial numbers should always be stored on a receiver’s memory module in addition to real serial numbers. If the customer subsequently orders a further remote transmitter, this can be pre-programmed in the office with a virtual serial number and sent to the customer. After pressing the button on the remote twice, it is immediately programmed into the receiver and can be used

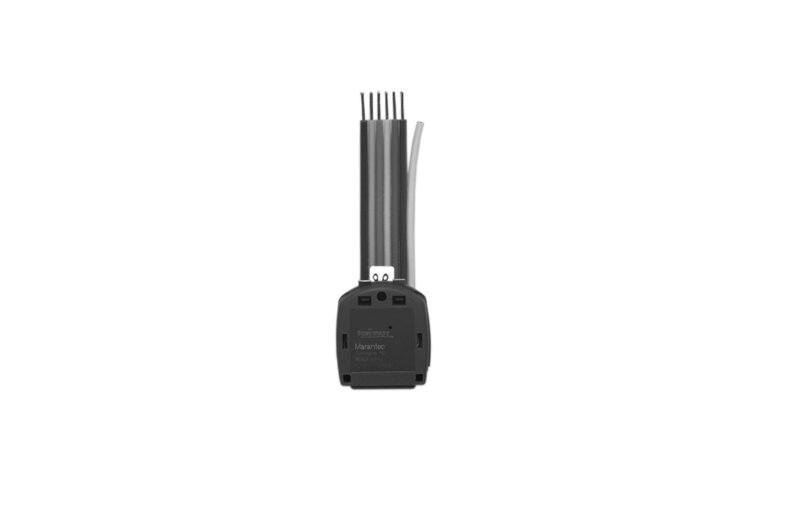

4-channel flush-mounted transmitter, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products (in conjunction with a suitable bi.linked receiver). Contents:Flush-mounted transmitter with batteryConnection cable, 90 mmFeatures:4 potential-free inputs for connecting e.g. push-buttons – wired push-buttons thus become wireless push-buttonsHigh security thanks to 128-bit AES-encrypted radio transmission and constantly changing radio code (rolling code method)
Module receiver with 200 memory slots, bidirectional, 433 MHz bi.linked. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370, 380 and 390 (plus) from Controlbox R10 onwards. For Control x.52, CS 265 and VTA. Contents:Module receiverFeatures:IMPULS functionGenerous memory capacity for up to 200 buttonsPlugs-in directly to the control unitCompact size

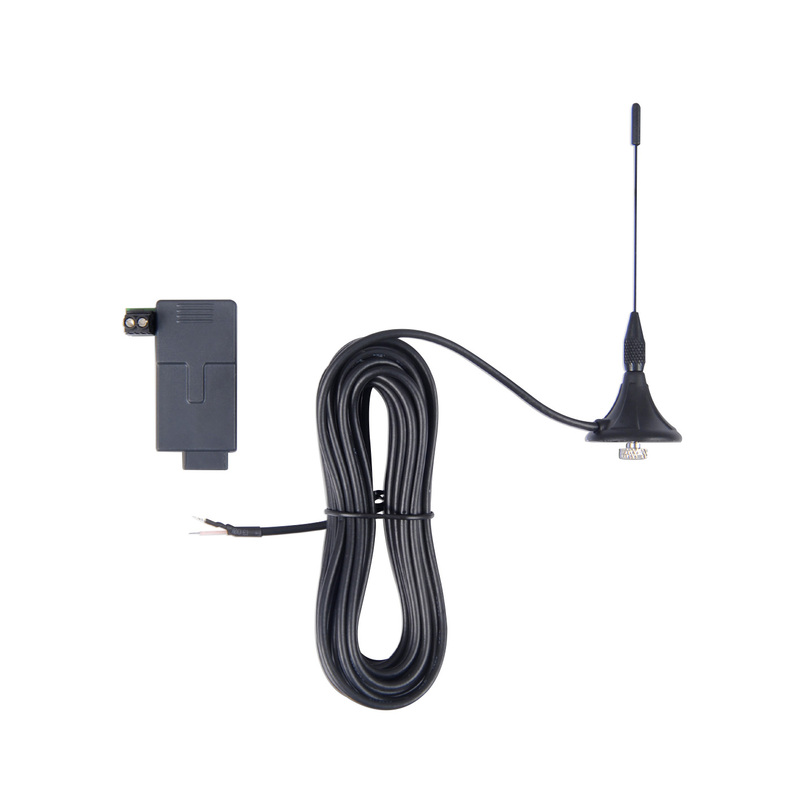

Module receiver with 200 memory slots and magnetic base antenna with 5 m cable, bidirectional, 433 MHz bi.linked. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370, 380 and 390 (plus) from Controlbox R10. For Control x.52, x.82, CS 255 AC and VTA. Contents:Module antenna with connection for magnetic base antennaMagnetic base antenna with connection cable, 5,000 mmMounting bracketMounting hardware
Module receiver with 200 memory slots and magnetic base antenna with 5 m cable, bidirectional, 868 MHz bi.linked. For Comfort 260 (accu/speed), 270 (speed), 280, 360, 370, 380 and 390 (plus) from Controlbox R10. For Control x.52, x.82, CS 255 AC and VTA. Contents:Module antenna with connection for magnetic base antennaMagnetic base antenna with connection cable, 5,000 mmMounting bracketMounting hardware
Module receiver with 200 memory slots and 1 open-collector output, 24 V, unidirectional, 433 MHz bi.linked. For CS 320. For third-party products (in conjunction with the enclosed connection cable). Scope of delivery:Universal receiverConnection cable, 300 mmFeatures:1 channel for free assignment1 potential-free relay contact for switching an electrical device, e.g. pulse input of a door control unitPULSE functionGenerous memory capacity for up to 200 buttonsCompact size
Module receiver with 200 memory slots and 1 open-collector output, 24 V, unidirectional, 868 MHz bi.linked. For CS 320. For third-party products (in conjunction with the supplied connection cable). Scope of delivery:Universal receiverConnection cable, 300 mmFeatures:1 channel for free assignment1 potential-free relay contact for switching an electrical device, e.g. pulse input of a door control unitPULSE functionGenerous memory capacity for up to 200 buttonsCompact size

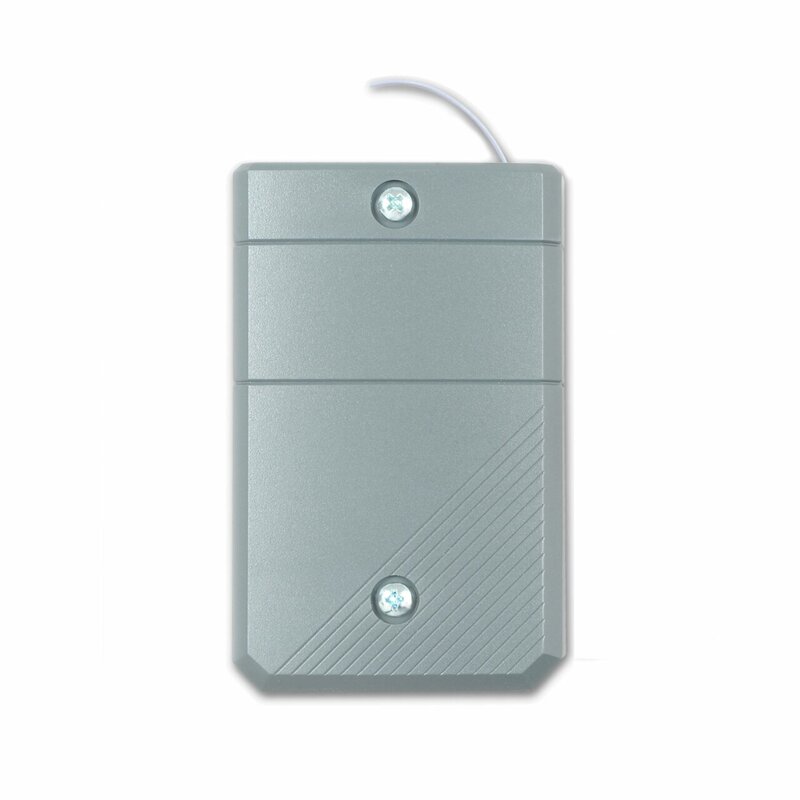

2-channel universal receiver with 100 memory slots per relay, 24 V, IP65, unidirectional, 868 MHz bi.linked. For all Marantec controls and third-party products. Scope of delivery:Universal receiverMounting hardwareFeatures:Weather-resistant housing2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse or ON/OFF function separately adjustable per channelGenerous memory capacity for up to 100 buttons per channelConnection via conventional wiring for external push-buttons to directly switch each relay

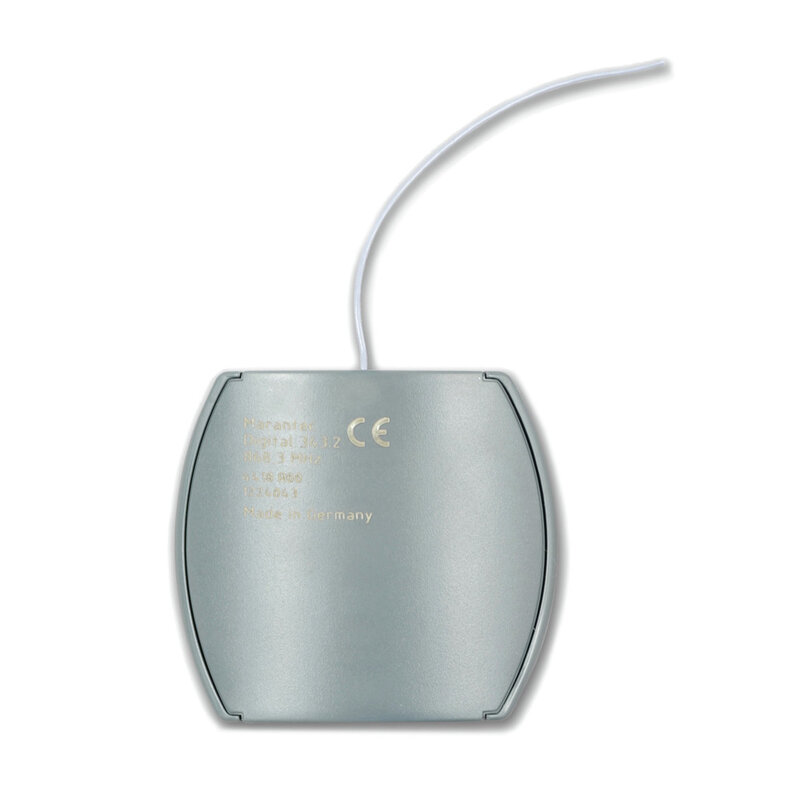

2-channel universal receiver with 100 memory slots per relay, 24 V, IP20, unidirectional, 433 MHz bi.linked. For all Marantec controls and third-party products. Contents:Universal receiverMounting hardwareFeatures:Compact design2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse or ON/OFF function separately adjustable per channelGenerous memory capacity for up to 100 buttons per channelConnection via conventional wiring for external push-buttons to directly switch each relay
Security and plant protection thanks to Radio transmitters and receivers
Since the door can only be opened by authorized persons thanks to the Radio transmitter, the risk of unauthorized access is significantly minimized.
Easy installation and maintenance
Installing and setting up remote controls for automatic gates is usually straightforward and only requires simple programming to synchronize the remote control with the corresponding gate. Once this is done, users can immediately benefit from the advantages that these small devices offer.
Support from the team of experts at doorautomation24
If you have any questions about radio transmitters and receivers - whether for industrial doors or garage doors - the doorautomation24 team is available by phone and email.
