Radio Transmitters & Receivers
Radio transmitters and radio receivers for industrial door automation
Remote transmitters for automatic doors are small, but nevertheless extremely important components in door automation. After all, they significantly improve the convenience and safety of automatic doors. Radio transmitters and radio receivers allow doors to be opened and closed conveniently and easily, which not only promises an uninterrupted production process, but also contributes significantly to safety in industry and manufacturing.
2-channel universal receiver with 100 memory slots per relay, 24 V, IP65, unidirectional, 433 MHz bi.linked. For all Marantec controls and third-party products. Scope of delivery:Universal receiverMounting hardwareFeatures:Weather-resistant housing2 channels for free assignment2 potential-free relay contacts for switching electrical devices, e.g. pulse input of a door control unitPulse or ON/OFF function separately adjustable per channelGenerous memory capacity for up to 100 buttons per channelConnection via conventional wiring for external push-buttons to directly switch each relay

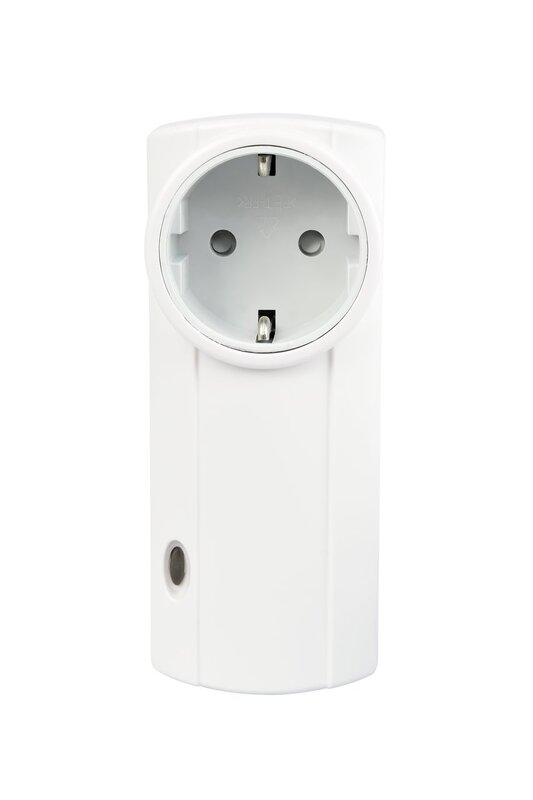

1-channel socket receiver with 200 memory slots, Schuko type F, unidirectional, 868 MHz bi.linked. For all Marantec control units and third-party products. Contents:Socket receiver with Schuko plug and socket type FConnection cable, 1,500 mmFeatures:1 channel for free assignment1 potential-free relay contact for switching an electrical device, e.g. pulse input of a door control unitPULSE functionGenerous memory capacity for up to 200 buttonsPower supply via the drive’s mains socket without blocking itEasy conversion of third-party drives to Marantec remote transmitters or to change the radio frequency

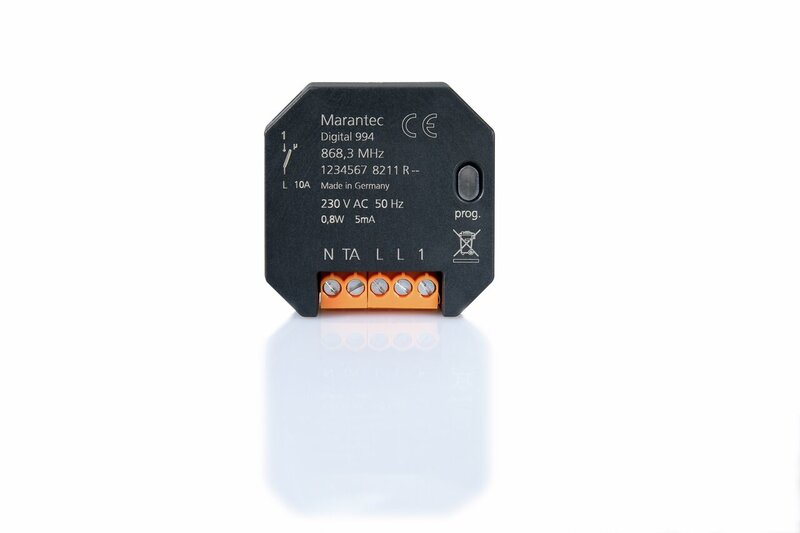

1-channel flush-mounted receiver with 200 memory slots and a live relay, 230 V, unidirectional, 868 MHz bi.linked. For all Marantec controls and third-party products. Scope of delivery:Flush-mounted receiverFeatures:1 channel for free assignment1 live relay contact for directly switching an electrical device, e.g. an outdoor lightON/OFF functionGenerous memory capacity for up to 200 buttonsCompact size

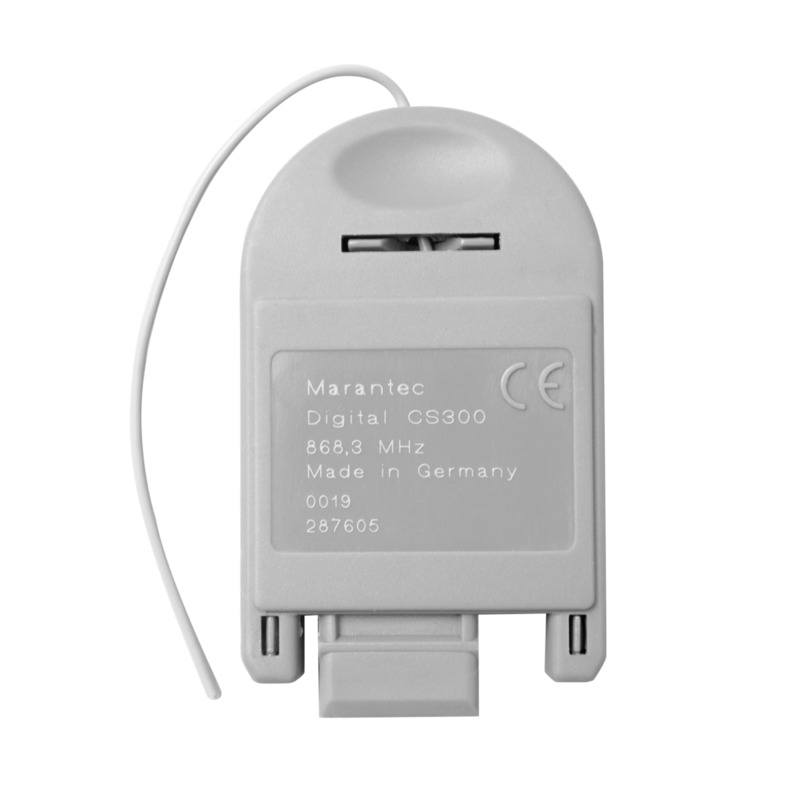

1-channel module receiver with 15 memory slots, unidirectional, 433 MHz multi-bit. For CS 320. Contents:Module receiverFeatures:PULSE functionPlug-in directly into the control unitCompact size

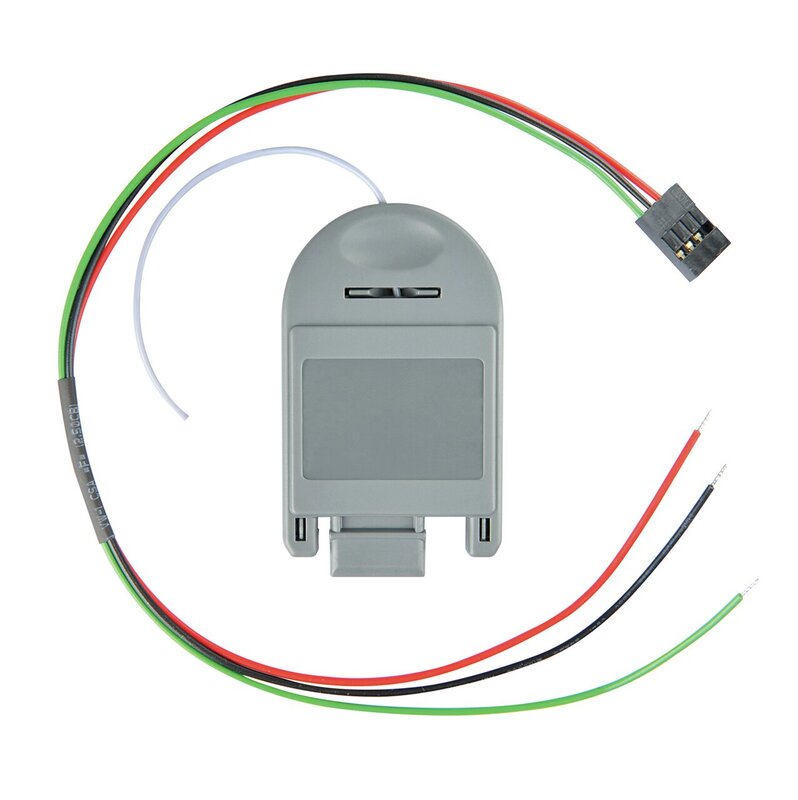

1-channel module receiver with 15 memory slots and 1 open-collector output, 24 V, unidirectional, 433 MHz multi-bit, with 0.3 m cable. For third-party products. Scope of delivery:Module receiverConnection cable for third-party products, 300 mmFeatures:IMPULS functionPlug-in directly into the control unitCompact size
1-channel module receiver with 15 memory slots and 1 open-collector output, 24 V, unidirectional, 868 MHz multi-bit, with 0.3 m cable. For third-party products. Scope of delivery:Module receiverConnection cable for third-party products, 300 mmFeatures:IMPULSE functionCan be plugged-in directly to the control unitCompact size
Midi radio transmitter SKX2LC by ELKA, 2-channel, 434 MHz, coded via dip-switch, includes 12V battery, status LEDDescription:ELKA SKX2LC Midi radio transmitter.Technical characteristics:434 MHzcoded via dip-switchincludes 12V batteryLED status display
Midi radio transmitter SKX2LC by ELKA, 2-channel, 434 MHz, coded via dip-switch, includes 12V battery, status LEDDescription:ELKA SKX2LC Midi radio transmitter.Technical characteristics:434 MHzcoded via dip-switchincludes 12V batteryLED status display
VTX100 100-Channel Handheld Transmitter doorautomation24 The VTX100 handheld transmitter from doorautomation24 has been specially developed for demanding industrial applications and installations with a large number of doors. With 100 individually selectable channels, numerous doors, barriers and other radio-controlled systems can be conveniently operated using just one handheld transmitter. This makes the VTX100 particularly suitable for larger industrial sites, logistics centres, warehouses, factory premises and other facilities with multiple door systems. The robust plastic housing in highly visible signal yellow ensures that the transmitter can be easily spotted and quickly located during everyday work. A rubberised outer edge improves grip and provides additional protection against impacts and the demands of daily industrial use. The combination of a durable design, easy operation and powerful radio technology makes the VTX100 a reliable solution for professional users. Like the other transmitters in the VTX series, the VTX100 is compatible with the VRX150 radio receiver from doorautomation24 as well as the integrated radio receiver of the TS971 door control from GfA Elektromaten. This means that the transmitter can be used both for new installations and for expanding existing systems. Integration into an existing TS971 door control is straightforward. A corresponding step-by-step guide for programming and pairing the transmitter is available in the “Download” section. Key Features 100 channels: Control of up to 100 doors or radio receivers with a single handheld transmitter For industrial applications: Ideal for factory premises, logistics facilities, warehouse complexes and sites with numerous door systems Robust housing: Durable plastic housing designed for daily professional use Signal yellow design: High visibility – easy to spot and locate in the workplace Rubberised edge: Improved grip and additional protection against impacts and everyday wear Compatibility: Compatible with the VRX150 radio receiver from doorautomation24 and the TS971 from GfA Elektromaten Range: Reliable radio range of up to 150 metres* Security: KeeLoq® rolling code technology with 4,294,967,296 possible code combinations Convenient operation: One handheld transmitter for a large number of different doors and systems Important Information for Use with the GfA Elektromaten TS971 To pair the VTX100 with the TS971 door control, the handheld transmitter must be programmed using the corresponding parameter in the door control. The installer or responsible qualified technician therefore requires access to the control unit’s programming settings. The exact procedure is explained step by step in the instructions available in the “Download” section. * The actual radio range may vary depending on local conditions, structural obstacles and possible radio interference.
Radio receiver for wall-mounting by Akerströms, 3 relay outputs, storage capacity max. 100 handheld transmitters, 869,8 MHz, power supply 12-24 V AC/DC, temperature range -25 bis +70 °C, protection class IP65
Remote, radio frequency 41 MHz, UKW, 4 channel
Remote, radio frequency 868 MHz, UKW, 2 channelDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Remote, radio frequency 433 MHz, UHF, 4 channel
Remote, radio frequency 868 MHz, UKW, 4 channelDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Hormann Art. Nr. 436721, Radio receiver, 3-channel, BiSecurDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Hormann Art. Nr. 4980115, Radio antenna for signal amplification 868,3 MHz
Plug-In Card for control units TS400, radio receiver, 2-channel
Hormann Art. Nr. 4511801, Radio Transmitter HSI 6 BiSecur
Remote, radio frequency 433 MHz, UHF, 1 channel
Remote, radio frequency 433 MHz, 4-channel, universal remote for all openers of the LiftMaster Evolution-Series and older openers with 433MHz radio system back to manufacturing date 1997Description:The TX4UNIF universal transmitter by LiftMaster has a white LED indicator and operates on the 433MHz frequency. As a universal transmitter, it can be used with any LiftMaster drive manufactured after 1997 with rolling code (433 MHz) technology, excluding the models LM50K, LM510 and HE500AN. The large buttons of the universal transmitter also increase ease of use and make it possible to control up to four doors. The TX4UNIF can replace the transmitter models:TX2EVTX2REVTX4EVTX4UNITX4RUNI4330E4332E4332E4333E4335E94330E94333E94334E94335E
Remote, radio frequency 41 MHz, UKW, 1 channel
Heavy-duty remote by Akerströms, 15-channel, 869,8 MHz, power supply 3V (2 x AAA), temperature range -25 bis +55 °C, protection class IP67
Security and plant protection thanks to Radio transmitters and receivers
Since the door can only be opened by authorized persons thanks to the Radio transmitter, the risk of unauthorized access is significantly minimized.
Easy installation and maintenance
Installing and setting up remote controls for automatic gates is usually straightforward and only requires simple programming to synchronize the remote control with the corresponding gate. Once this is done, users can immediately benefit from the advantages that these small devices offer.
Support from the team of experts at doorautomation24
If you have any questions about radio transmitters and receivers - whether for industrial doors or garage doors - the doorautomation24 team is available by phone and email.
