Sensors
Door sensors play a crucial role in the automation of door systems and the safety of door operation. These sensors are placed on industrial doors to ensure precise control, safe movement and effective safety mechanisms.
Safety sensors
A key element are sensors for obstacle detection or presence detection, which are used to prevent collisions with objects or people. These sensors are often equipped with advanced technologies such as infrared, ultrasound or radar and enable the door opening to be monitored. These include safety edges, Light curtains, photo eyes, Area scanners or modern 3D laser scanner systems. As soon as an obstacle is detected, the sensor sends a corresponding signal to the door control unit, which stops or changes the door movement to prevent potential damage.
Activation sensors
Activation sensors are used to automate door movement and optimise the integration of the door into goods flow processes. These sensors detect an approaching object, such as a forklift truck or lorry, and open or close doors as required at the right time. Particularly worth mentioning here are radar detectors, induction loops or IR sensors.
The integration of sensor technology in industrial doors not only contributes to safety, but also enables efficient and precise control of door operation.
Rubber profile for optical sensing edges, coil of 30m, material EPDM
Rubber profile for optical sensing edges, coil of 5m, material EPDM
Signal processing unit for OSE, stop, reverse, and monitoring of the slack-rope switch, safety category 1, 230V AC, wall-mounted housing IP65, 130 x 94 x 60 mm (LxWxH), cable gland 2 x PG11, 1 x PG11 bend protectionDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Inductive signal transmission system, incl. control unit, travelling coil core, 20m sheathed steel cable, mounting setDescription:The ELMON Inductive 77 R Set S from ASO Safety is an inductive signal transmission system for resistive sensing edges with 8.2 kOhm end resistors. It is primarily used to transmit the signal of the movable main closing edge safety device on sliding doors to the stationary control unit. The system works by induction and therefore does not need batteries for its power supply. Properties:• Inductive signal transmission operates without batteries• Power supply 24 V AC/DC ± 10%• Safety category 2/ PL “d” according to EN ISO 13849-1 • Evaluation unit with output version R, test input and display• Travelling coil core SPK 54 S• Sheathed steel cable, 20m, with two additional cable cores • Mounting set
Signal processing unit for OSE, stop and reverse, safety category 1, 230V AC, surface-mounted housing IP65, 94 x 94 x 60 mm (LxWxH), cable gland 2 x PG11, 1 x PG11 bend protectionDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Control unit for monitoring 8k2 resistive sensing edges, in surface-mounted housing, supply voltage: 230 V, 24 V AC/DC, 1 channel, safety level Cat. 3/ PL "e"Description:The ELMON 41-312 control unit by ASO Safety is used to monitor the status of 8k2-sensing edges. The unit can monitor a single sensing edge with 8k2 end resistor and indicates its status via one output relay. Properties:• Rail-mounted housing• Supply voltage 230 V, 24 V AC/DC, +/- 10%• Reaction time < 12 ms• Input: 2 sensing edges, 8.2 kOhm• Output: 2 forcibly guided, relay contacts• Housing: rail-mounted housing for a 35mm DIN-rail• Safety category 3/ PL “e“, acc. to EN ISO 13849-1:2008• Dimensions: 120 x 102 x 55 mm (W x H x D)
Intelligent light curtain, OSE-output, Length 1830mm, 20 beams, sync-cable 10m length, signal cable 5m lengthDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Control unit for monitoring 8k2 resistive sensing edges, in rail-mounted housing, supply voltage: 24 V DC, 2 channels, safety level Cat. 3/ PL "e"Description:The ELMON 39-726 control unit by ASO Safety is used to monitor the status of 8k2-sensing edges. The unit can monitor a single sensing edge with 8k2 end resistor and indicates its status via one output relay. Properties:• Rail-mounted housing• Supply voltage 24 V DC, +/- 10%• Reaction time < 12 ms• Input: 2 sensing edges, 8.2 kOhm• Output: 2 forcibly guided, relay contacts• Housing: rail-mounted housing for a 35mm DIN-rail• Safety category 3/ PL “e“, acc. to EN ISO 13849-1:2008• Dimensions: 22,5 x 114 x 99 mm (W x H x D)
Set of Laser Scanner with protective cover, scanner for presence detection on doors or barrier arms: complete coverage over 4 planes (16560 measurements per second), adjustable via remote control (separate accessory), IP65 rated, 2 output signals, dynamic teach-in, max. range 9,9m x 9,9m, can fulfil requirements of a type-E device according to EN 12453, PL "d"Description:The BEA LZR®-I100 is a sensor for monitoring the closing plane of the door and is certified as a type E device with presence detection according to the EN12453 certification. The sensor functions on time-of-flight technology which enables precise recognition of even the smallest object. The LZR generates laser beams in 4 detection planes to monitor both the closing plane of the door and the area in front it. BEA designed the LZR I100 for industrial environments and can also ensure larger industrial doors are secured thanks to its detection field of up to 9.9m x 9.9m. Together with the BEA LZR laser scanner protective cover, the set is ideally suited for first installations or for retrofitting on existing barrier systems. The scanner is secured in the protective cover and can be easily installed.Details of the LZR-I100:Maximum range 9.9m x 9.9mDepending on the installation height, monitors up to 1m upon approach of the doorEN ISO 13849-1 PL d/CAT 2 and EN 12453 type E certifiedContactless protection of industrial doorsEasy setup and retrofitting of existing facilitiesProtection upon approach and departure (roll-up safety)Up to 2 virtual pushbuttons for opening doorsFilters external interference (door vibrations, snow, rain...)IP 65 protection classThrough the separate use of a universal remote control, it is possible to set up and adjust the sensors from the ground.Details of the protective cover for the BEA LZR laser scanner:The protective cover for the BEA LZR Laser scanner was developed as an accessory for the BEA LZR sensor range. The protective cover is made of a 2.5mm-thick Aluminium sheet and is used protect the sensor and to make its installation inconspicuous. Thanks to its pure white powder coating, similar to RAL9010, the protective cover can fit in with any installation environment. Other RAL colours are also available upon request. The protective cover can be mounted either on the appropriate mounting holes on masonry, barrier housing, etc... or with the help of a mounting bracket, sold separately. The LZR Sensor does not come with the cover and must be ordered separately.Compatible with BEA LZR H-100, LZR-i100 and LZR-i110Powder coating in pure white, similar to RAL9010Anticorrosive thanks to aluminium sheetVersatile installation options

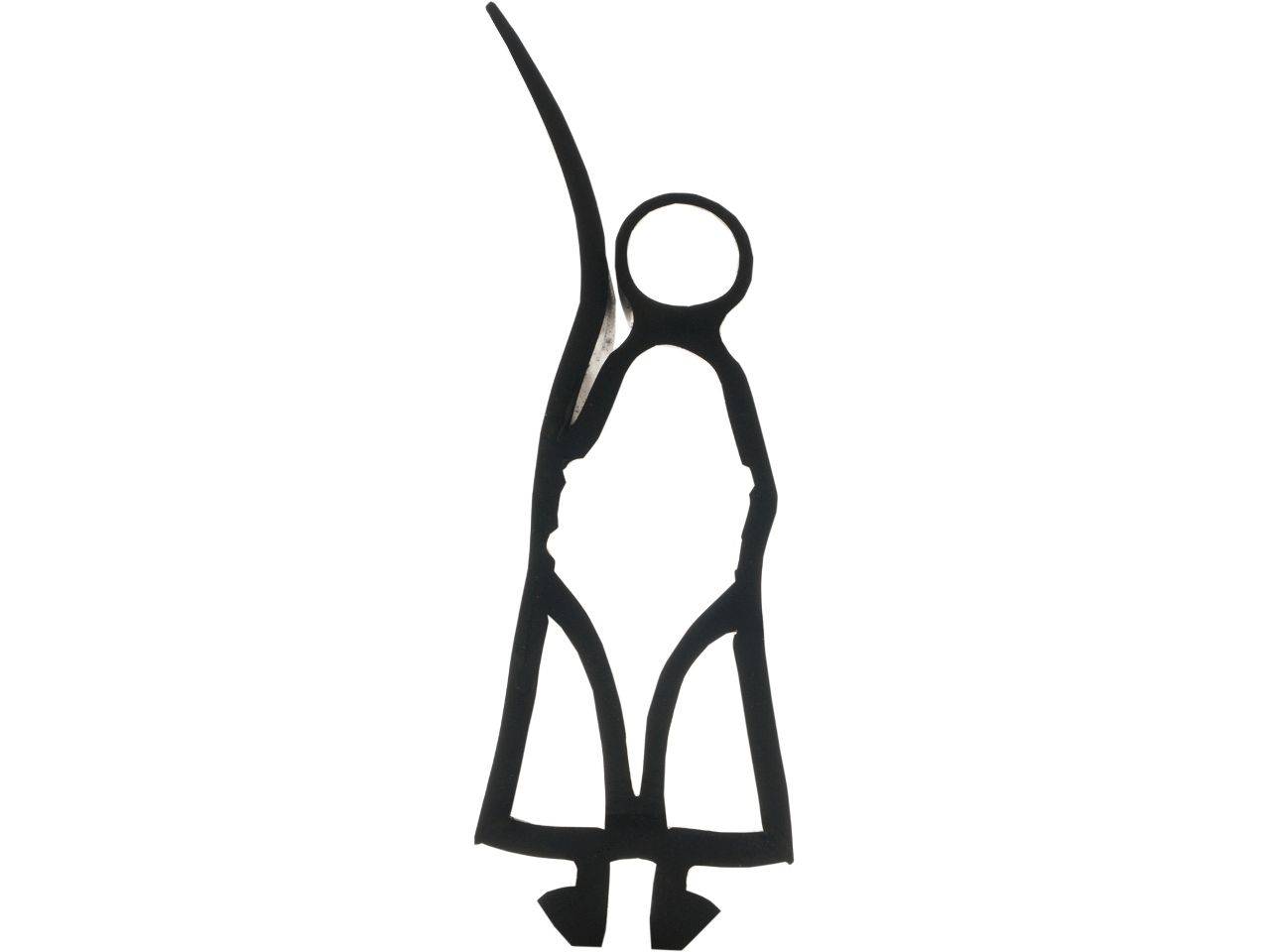

Rubber profile for optical sensing edges
Rubber profile for optical sensing edges, coil of 25m, material EPDM
Rubber profile for optical sensing edges, coil of 5m, material NBR
Hormann Art. Nr. 638465, light curtain HLG-550, receiver, length 550 mm; 01.04.2014 -
Rubber profile for optical sensing edges, coil of 10m, material EPDM
Set of Laser Scanner with protective cover in slate grey (RAL7015), scanner for presence detection on doors or barrier arms: complete coverage over 4 planes (16560 measurements per second), adjustable via remote control (separate accessory), IP65 rated, 2 output signals, dynamic teach-in, max. range 9,9m x 9,9m, can fulfil requirements of a type-E device according to EN 12453, PL "d"Description:The BEA LZR®-I100 is a sensor for monitoring the closing plane of the door and is certified as a type E device with presence detection according to the EN12453 certification. The sensor functions on time-of-flight technology which enables precise recognition of even the smallest object. The LZR generates laser beams in 4 detection planes to monitor both the closing plane of the door and the area in front it. BEA designed the LZR I100 for industrial environments and can also ensure larger industrial doors are secured thanks to its detection field of up to 9.9m x 9.9m. Together with the BEA LZR laser scanner protective cover, the set is ideally suited for first installations or for retrofitting on existing barrier systems. The scanner is secured in the protective cover and can be easily installed.Details of the LZR-I100:Maximum range 9.9m x 9.9mDepending on the installation height, monitors up to 1m upon approach of the doorEN ISO 13849-1 PL d/CAT 2 and EN 12453 type E certifiedContactless protection of industrial doorsEasy setup and retrofitting of existing facilitiesProtection upon approach and departure (roll-up safety)Up to 2 virtual pushbuttons for opening doorsFilters external interference (door vibrations, snow, rain...)IP 65 protection classThrough the separate use of a universal remote control, it is possible to set up and adjust the sensors from the ground.Details of the protective cover for the BEA LZR laser scanner:The protective cover for the BEA LZR Laser scanner was developed as an accessory for the BEA LZR sensor range. The protective cover is made of a 2.5mm-thick Aluminium sheet and is used protect the sensor and to make the installation inconspicuous. Thanks to its pure slate grey powder coating, similar to RAL7015, the protective cover can fit in with any installation environment. Other RAL colours are also available upon request. The protective cover can be mounted either on the appropriate mounting holes on masonry, barrier housing, etc... or with the help of a mounting bracket, sold separately. The LZR Sensor does not come with the cover and must be ordered separately.Compatible with BEA LZR H-100, LZR-i100 and LZR-i110Powder coating in pure slate grey, similar to RAL7015Anticorrosive thanks to aluminium sheetVersatile installation options
Hormann Art. Nr. 635466, pre-travelling light barrier VL2-LE, right, receiver, black, range 1.0 - 6.0 m; Note:not compatible with transmitter or receiver VL2 (not LE), marking: grey connecting cable, production period 01.12.2017 -Description:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Safety sensor for doors and windows, set contains 2 x Laser-Scanner (left- and right-hand installation), complete monitoring of the detection zone (70 laser points) and the pinch zone (100 laser points), max. range 4m, color whiteDescription:The BEA LZR® FLATSCAN SW uses laser technology time-of-flight measurement) to monitor automatic swing doors. Full protection of the doors is guaranteed by 170 measurement points. One single FLATSCAN SW Module is enough to secure the entire door wing as well as the hinge and the area directly to the side of the closing edge.The LZR FLATSCAN can be used for monitoring as a pair (e.g. in swing doors), or as a single sensor (e.g. in windows). Properties:Maximum detection range of 4m (diagonal) with reflectivity of 2% (i.e. at 1.5m -> max. H = 3.7 m).Possible monitoring of the closing edgeCompact design (8.5 cm x 14.2 cm), can be integrated into any doorWorks with all floor types ((slatted floors, wire mesh, absorbent carpets, reflective flooring, slippery surfaces, etc.) and with the doors' surroundings (handrails, walls, radiators, dustbins, etc).One module per side is enough to secure the door wings as well as its hinges.Useable as a pair (i.e. for doors) or on its own (i.e. for windows).
Rubber profile for optical sensing edges, coil of 5m, material EPDM
Signal processing unit for OSE, stop, reset, 24 V DC, DIN Rail-mounted housing, IP40, terminal block IP20, 25mm installation width, safety category 4 according to EN 954-1Description:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Rubber profile for optical sensing edges, coil of 30m, material EPDM
Hormann Art. Nr. 638463, light curtain HLG-550, transmitter and receiver, length 550 mm; 01.04.2014 -
2 channel loop detector for vehicle detection, power supply 24 V AC/DC, in DIN-rail enclosureDescription:Please note:This product has been discontinued by the manufacturer and is no longer available.In the "follow-up articles" tab you can find a link to the suggested replacement product.
Hormann Art. Nr. 4548368, Optical sensors double SKS, 1500 mm connection cable, right (grey), produced from 01.07.2011 -
Hormann Art. Nr. 159065, Light curtain ELG, 2150 mm high, crossed, line spacing 60 mm, cable 1 x 10 m and 1 x 15 m
